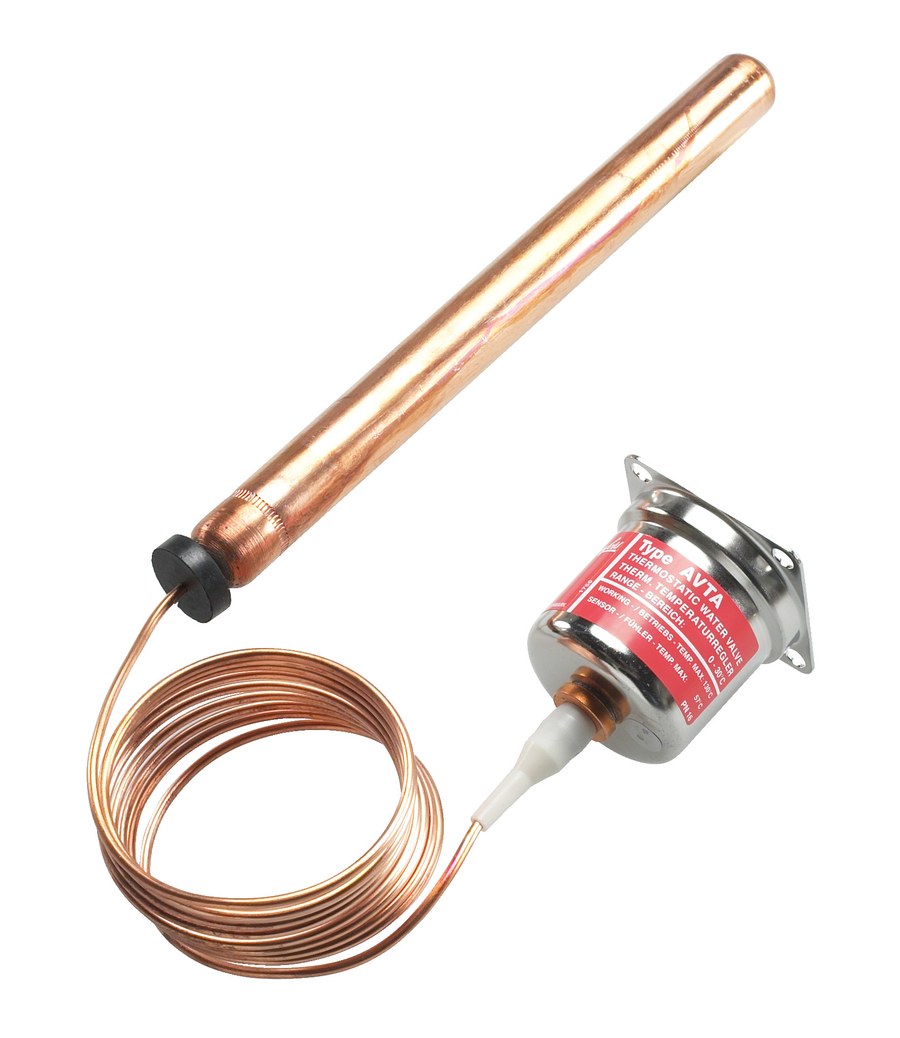

Danfoss Thermostatic Element for AVTA / AVTB — Mass Charge 25–65 °C, 5 m Capillary — Spare Part 003N0068
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss thermostatic element, genuine OEM spare code 003N0068, for AVTA / AVTB (and FJVA / FJV) self-acting temperature-regulating valves. Hermetically sealed mass-charge unit comprising sensor, capillary and bellows; it converts a rising medium temperature into the force that opens the valve — no external power needed. Regulating range 25–65 °C (AVTA / FJVA). Sensor 9.5 x 180 mm, capillary 5000 mm, max. sensor temperature 90 °C. Replaces a worn or wrongly-ranged element without changing the valve body. EAN 5702423024643.
Specifications
- Part number
- 003N0068
- HS code
- 8481.90
- Material
- Copper / brass sensor, steel bellows
- Pressure rating
- Max. sensor pressure 25 bar (365 psi)
- Temperature range
- Regulating range 25–65 °C; max. sensor 90 °C
- Standard size
- AVTA, AVTB
Compatibility
Fits AVTA and AVTB (also FJVA / FJV) valve bodies. Match the charge type (Mass) and regulating range (25–65 °C) to the original element; Mass-charge elements require the sensor to sit above the valve.
