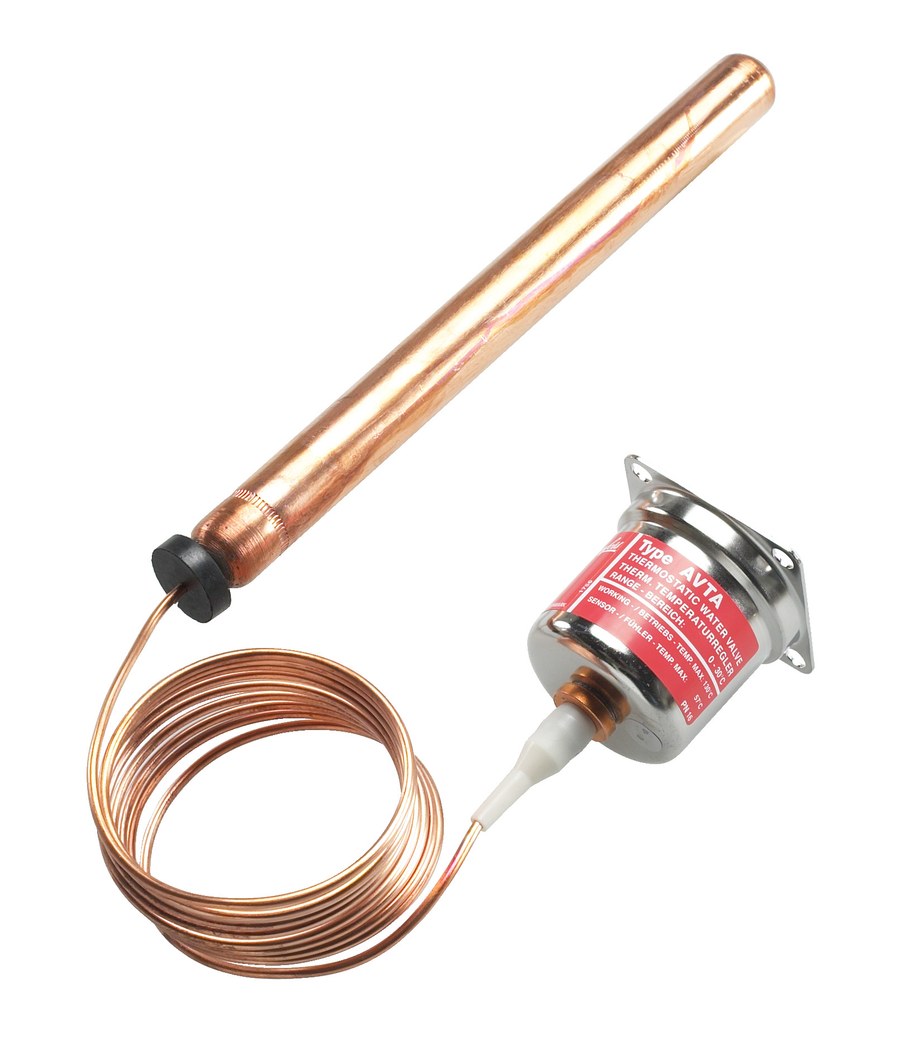

Danfoss Thermostatic Element for AVTA / AVTB — Universal Charge 50–90 °C — Spare Part
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss thermostatic element, genuine OEM spare code 003N0062, for AVTA / AVTB (and FJVA / FJV) self-acting temperature-regulating valves. Hermetically sealed universal-charge unit comprising sensor, capillary and bellows; it converts a rising medium temperature into the force that opens the valve — no external power needed. Regulating range 50–90 °C (AVTA / FJVA). Sensor 18 x 210 mm, capillary 2000 mm, max. sensor temperature 125 °C. Replaces a worn or wrongly-ranged element without changing the valve body. EAN 5702423024186.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0062
- Type
- Thermostatic element — spare part for AVTA / AVTB (and FJVA / FJV) self-acting valves
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Hermetically sealed sensor + bellows charge unit; drives the valve on rising temperature
- Charge type
- Universal
- Regulating range (AVTA / FJVA)
- 50–90 °C
- Sensor
- 18 x 210 mm
- Capillary tube length
- 2000 mm
- Max. sensor temperature
- 125 °C
- Net weight
- 0.389 kg
- EAN
- 5702423024186
- Compliance
- China RoHS; EU RoHS out of scope
- HS code
- 8481.90 (parts of taps, cocks, valves)
- Compatible with
- AVTA / AVTB — Universal Charge 50–90 °C
- Product group
- Water valves spare parts
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- China RoHS compliance
- Yes
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 125 °C
- Max. sensor temperature [°F]
- 257 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor size (Ø x L) [in]
- 23/32 x 8 1/4 in
- Sensor size (Ø x L) [mm]
- 18 x 210 mm
- Temp. range AVTA/FJVA [°C] [max]
- 90 °C
- Temp. range AVTA/FJVA [°C] [min]
- 50 °C
- Temp. range AVTA/FJVA [°F] [max]
- 194 °F
- Temp. range AVTA/FJVA [°F] [min]
- 122 °F
- Temp. range AVTB/FJV [°C] [max]
- 90 °C
- Temp. range AVTB/FJV [°C] [min]
- 50 °C
- Temp. range AVTB/FJV [°F] [max]
- 194 °F
- Temp. range AVTB/FJV [°F] [min]
- 122 °F
- Type designation
- Thermostatic element
- Used for product
- AVTA
Standards & Compliance
- Size / Series
- AVTA, AVTB
- Material
- Copper / brass sensor, steel bellows
- Pressure Rating
- Max. sensor pressure 25 bar (365 psi)
- Temperature Range
- Regulating range 50–90 °C; max. sensor 125 °C
- HS Code
- 8481.90
Compatibility & Fitment
Fits AVTA and AVTB (also FJVA / FJV) valve bodies. Match the charge type (Universal) and regulating range (50–90 °C) to the original element; Mass-charge elements require the sensor to sit above the valve.
Product Documentation
More from Danfoss
Danfoss
Danfoss Thermostatic Element for AVTA / AVTB — Universal Charge 25–65 °C, 5 m Capillary — Spare Part
003N0080
Danfoss
Danfoss Thermostatic Element for AVTA / AVTB — Mass Charge 25–65 °C, 5 m Capillary — Spare Part
003N0068
Danfoss
Danfoss Thermostatic Element for AVTA / AVTB — Mass Charge 25–65 °C, 2 m Capillary — Spare Part
003N0091
Danfoss
Danfoss Sensor Pocket for AVTA / AVTB — Stainless Steel, NPT 3/4-14, 220 mm
003N0053
Danfoss
Danfoss Sensor Pocket for AVTA / AVTB — Stainless Steel, R 1/2 (ISO 7-1), 182 mm
003N0196
Danfoss

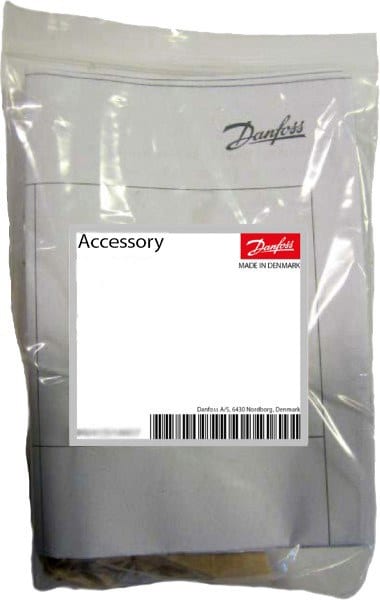

Danfoss NBR Diaphragm Set for AVTA 10–25 — Accessory Bag (3 pc)
003N0448
Danfoss

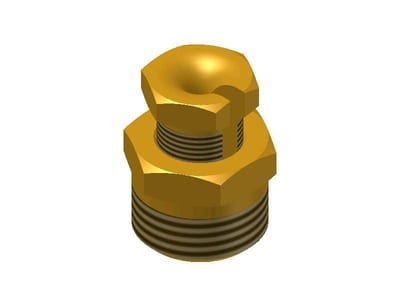

Danfoss Capillary Tube Gland for AVTA / AVTB — NPT 1/2-14
003N0157
Danfoss

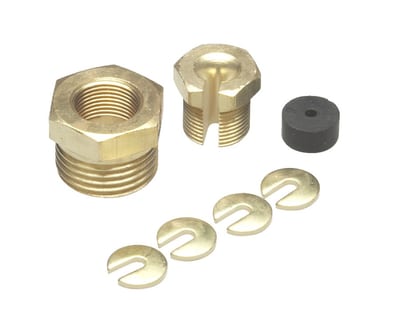

Danfoss Capillary Tube Gland for AVTA / AVTB — NPT 3/4
