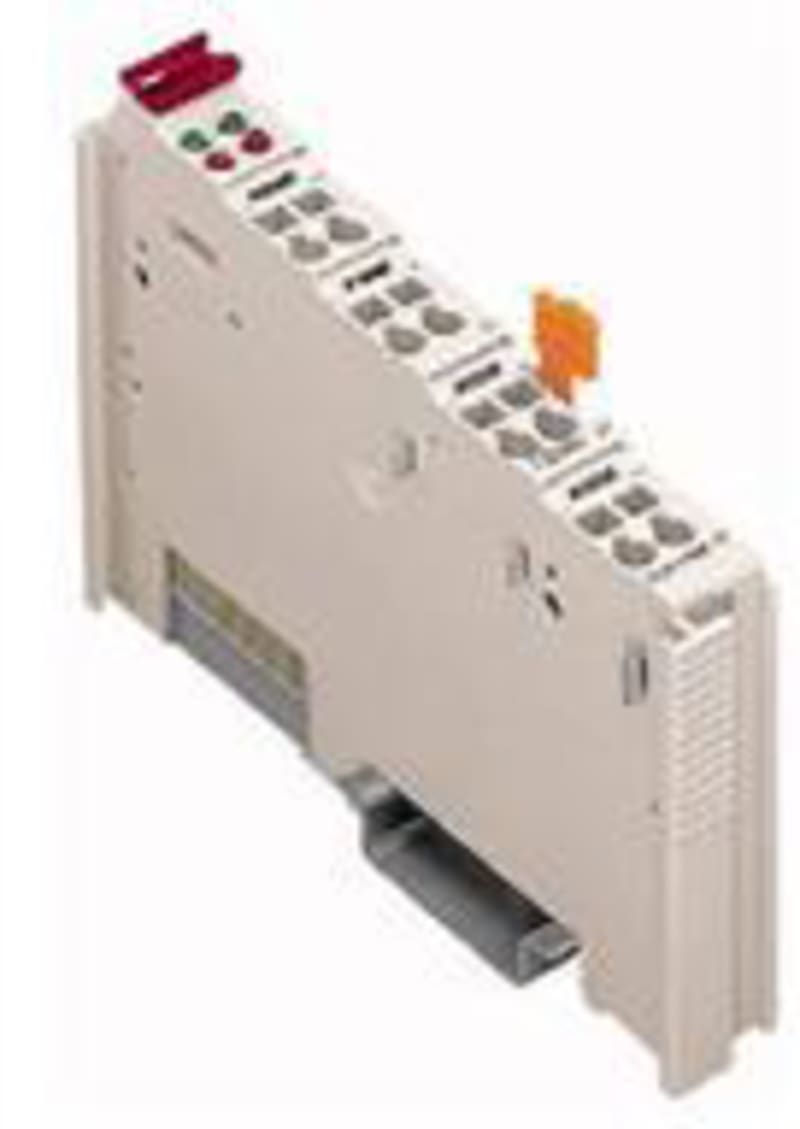

8-Channel digital output; 24 VDC; 0.5 A

WAGO 750-530 Manufacturer description: 8-channel digital output; 24 VDC; 0.5 A. 8-channel digital output.

Manufacturer part number (MPN)

750-530

EAN / GTIN

4045454686901

Sales unit

pcs

Number of digital outputs

8

Total number of channels (module)

8

Signal type

Digital

Signal type (voltage)

24 VDC

Actuator connection

8 x (1-wire)

Output characteristic

high-side switching

Output current per channel

0.5 A

Output current

short-circuit-protected

Load type

Resistive, inductive, lamp load

Switching frequency (max.)

2 kHz

Inductive load switch-off energy dissipation (max.)

0.9 J

Output data width (internal) max.

8 Bit

Supply voltage (system)

5 VDC; via data contacts

Current consumption (system supply)

25 mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Current consumption, field supply (module with no external load)

15 mA

Isolation

500 V system/field

Indicators

LED (A-H) green: Status DO 1 … DO 8

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

Current carrying capacity (power jumper contacts)

10 A

Connection technology

I/O: 8 x CAGE CLAMP® (outputs)

Connectable conductor materials

Copper

Connection type

Output

Solid conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Fine-stranded conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Width

12 mm / 0.472 inches

Height

100 mm / 3.937 inches

Depth

67.8 mm / 2.669 inches

Depth from upper-edge of DIN-rail

60.6 mm / 2.386 inches

Mounting type

DIN-35 rail

Pluggable connector

fixed

Color

light gray

Housing material

Polycarbonate; polyamide 6.6

Fire load

0.877 MJ

Weight

49 g

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000 m / 0 … 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95 %

Vibration resistance

4g per IEC 60068-2-6

Shock resistance

15g per IEC 60068-2-27

EMC immunity to interference

per EN 61000-6-2, marine applications

EMC emission of interference

per EN 61000-6-4, marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible H2S contaminant concentration at a relative humidity 75 %

10 ppm

Permissible SO2 contaminant concentration at a relative humidity 75 %

25 ppm

Product Group

15 (I/O System)

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

Customs tariff number

85371098990

UNSPSC

32,151,705

eCl@ss 10.0

27-24-26-04

eCl@ss 9.0

27-24-26-04

ETIM 9.0

EC001599

ETIM 10.0

EC001599

ECCN

NO US CLASSIFICATION

CAS-No.

1303-86-2 | 1317-36-8 | 7439-92-1 | 75980-60-8

REACH Candidate Strip Substance

Diboron trioxide | Lead | Lead monoxide | Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c) | 7(a) | 7(c)-I | 7(c)-II

SCIP notification number (Austria)

0a3535f5-b5f6-4f31-9d1c-cc0a2dc165d7

SCIP notification number (Belgium)

dad83b9d-7c0b-4b2c-b728-c70dd1eb7942

SCIP notification number (Bulgaria)

605af9ab-35fe-4bef-a5a8-cc57a058b31b

SCIP notification number (Czech Republic)

3ab56b02-2055-4a9d-9fd8-b015cae2db11

SCIP notification number (Denmark)

0e22c2fb-ad83-4b45-a458-643c39790e2e

SCIP notification number (Finland)

31326323-4999-4142-80f0-541535f2c47d

SCIP notification number (France)

9bb13b54-64a6-4958-8e42-c864845dbbcb

SCIP notification number (Germany)

09643daa-e373-4761-8751-89c71da03c4c

SCIP notification number (Hungary)

a72ad92f-2d4c-40c7-98c3-c691ed1d2bf1

SCIP notification number (Italy)

89a7a76f-54b2-4622-a674-172ddd51421a

SCIP notification number (Netherlands)

357cf1eb-6f46-48b6-a6f0-5bfb277cdc25

SCIP notification number (Poland)

4da52ed3-5a8b-4d4a-b4ca-aafc887c87bd

SCIP notification number (Romania)

3c63f123-ad8f-4f74-a958-2951b1ac6e8e

SCIP notification number (Sweden)

7f3ad3b4-dd17-4912-ab28-203e3864a801

Certified for UL hazardous location division 1

Yes

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

22–24 V

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Digital outputs configurable

No

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Permitted voltage at output

24 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

HS Code

8537.10

• EAN 4045454686901
• SAP 1000263288
• Code 81292656
