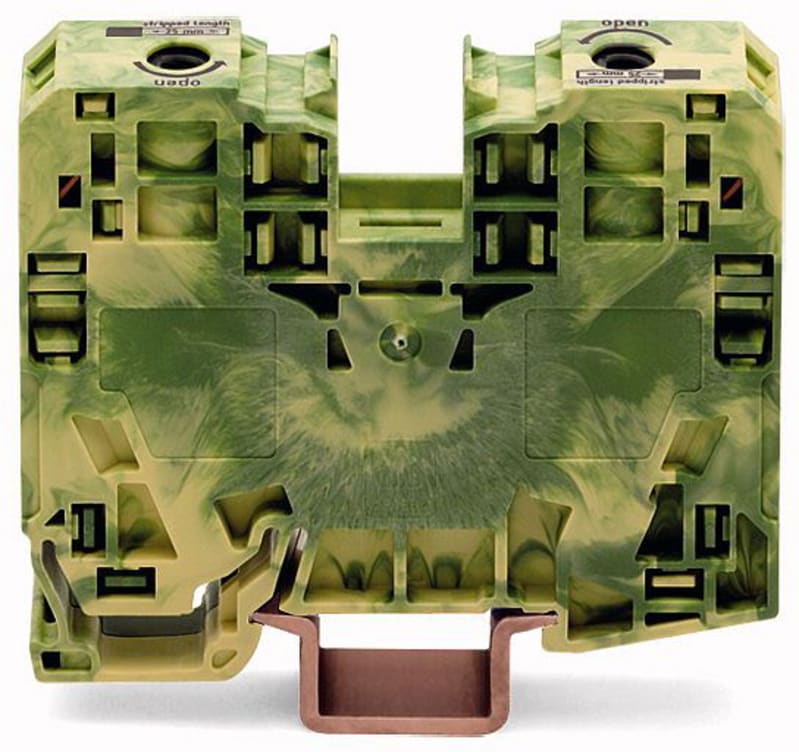

2-Conductor ground terminal block, 35 mm², only for DIN 35 x 15 rail

WAGO 285-137 Manufacturer description: 2-conductor ground terminal block; 35 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 35,00 mm²; green-yellow. DIN-rail terminal 2 conductor 35mm², green/yellow.

Manufacturer part number (MPN)

285-137

EAN / GTIN

4045454507404

Sales unit

pcs

Package quantity

15 pcs

Clamping units

2

Total number of potentials

1

Number of levels

1

Number of jumper slots

2

Width

16 mm / 0.63 inches

Height

86 mm / 3.386 inches

Depth from upper-edge of DIN-rail

63 mm / 2.48 inches

Mounting type

DIN-35 x 15 rail; 2.3 mm thick; copper

Mounting (note)

only suitable for DIN 35 x 15 rail

Marking level

Side marking

Color

green-yellow

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

1.051 MJ

Weight

107.8 g

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

Product Group

1 (Rail Mounted Terminal Blocks)

PU (SPU)

15 pcs

Packaging type

box

Country of origin

PL

Customs tariff number

85369010000

UNSPSC

39,121,410

eCl@ss 10.0

27-14-11-41

eCl@ss 9.0

27-14-11-41

ETIM 9.0

EC000901

ETIM 10.0

EC000901

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Conductor cross-section

35 mm²

EAN

4066966247923

MPN

285-137

PEN function possible

Yes

Connectable conductor cross section solid-core

6–35 mm²

Connectable conductor cross section multi-wired

6–35 mm²

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Sideways

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

105 °C

Width/grid dimension

16 mm

Depth

63 mm

Length

86 mm

Closing plate required

No

Colour

Green/yellow

HS Code

8536.90

• EAN 4045454507404
• SAP 1000053387
• Code 8822513
