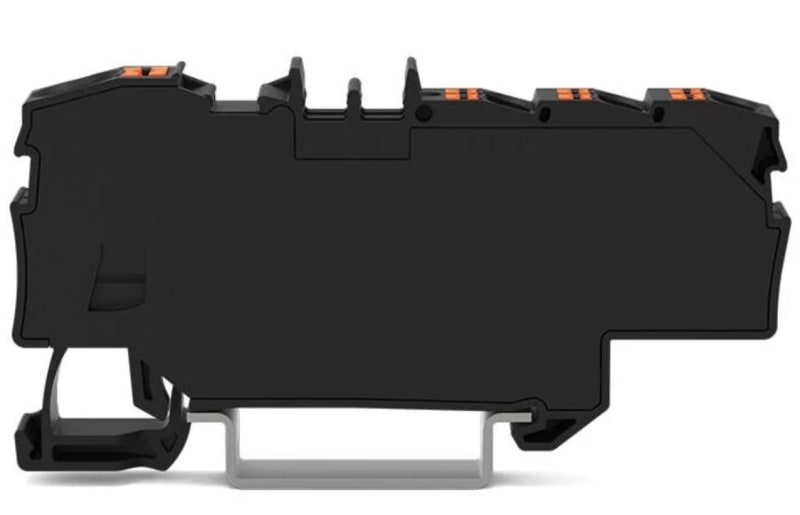

Distribution terminal block, 1 x 6 mm² / 6 x 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2006-8035)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2006-8035 Manufacturer description: Distribution terminal block; with operating slots; 1 x 6 mm² / 6 x 1.5 mm²; with integrated end plate; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; black. Fordelingsrekkeklemme;with betjeningsspor;1 x 6 mm² / 6 x 1.5 mm²;black.
Technical Specifications
- Manufacturer part number (MPN)
- 2006-8035
- EAN / GTIN
- 4066966185782
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Clamping units
- 7
- Total number of potentials
- 1
- Number of levels
- 1
- Width
- 9 mm / 0.354 inches
- Height
- 73.8 mm / 2.905 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- black
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Fire load
- 0.285 MJ
- Weight
- 16.2 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 12 pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 6 mm²
- MPN
- 2006-8035
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 1–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–6 mm²
- Rated current In
- 41 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 7
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 9 mm
- Depth
- 32.9 mm
- Length
- 73.8 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Black
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966185782
- SAP 1200736478
- Code 83869500
Product Documentation
