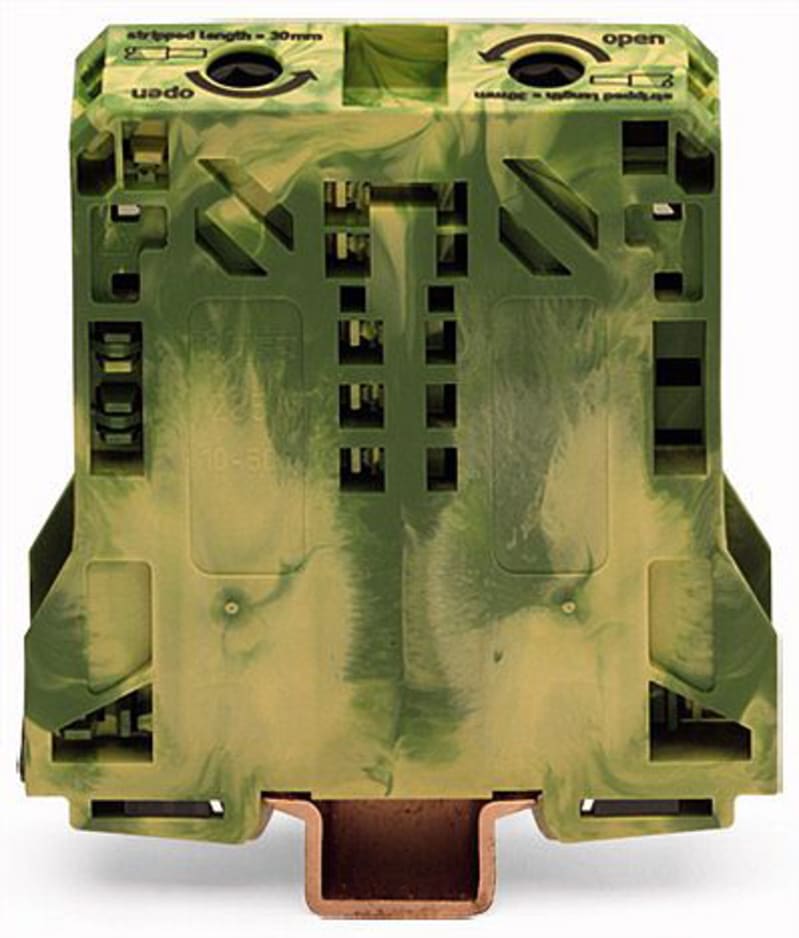

2-Conductor ground terminal block, 50 mm², only for DIN 35 x 15 rail, 2.3 mm thick
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 285-157 Manufacturer description: 2-conductor ground terminal block; 50 mm²; lateral marker slots; only for DIN 35 x 15 rail; 2.3 mm thick; copper; POWER CAGE CLAMP; 50,00 mm²; green-yellow. DIN-rail terminal 2 conductor 50mm², green/yellow.
Technical Specifications
- Manufacturer part number (MPN)
- 285-157
- EAN / GTIN
- 4045454507435
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 20 mm / 0.787 inches
- Height
- 94 mm / 3.701 inches
- Depth from upper-edge of DIN-rail
- 87 mm / 3.425 inches
- Mounting type
- DIN-35 x 15 rail; 2.3 mm thick; copper
- Mounting (note)
- only suitable for DIN 35 x 15 rail
- Marking level
- Side marking
- Color
- green-yellow
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 1.756 MJ
- Weight
- 185.2 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 1 (Rail Mounted Terminal Blocks)
- PU (SPU)
- 5 pcs
- Packaging type
- box
- Country of origin
- PL
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-41
- eCl@ss 9.0
- 27-14-11-41
- ETIM 9.0
- EC000901
- ETIM 10.0
- EC000901
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 50 mm²
- MPN
- 285-157
- PEN function possible
- Yes
- Connectable conductor cross section solid-core
- 10–50 mm²
- Connectable conductor cross section multi-wired
- 10–50 mm²
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Sideways
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 20 mm
- Depth
- 87 mm
- Length
- 94 mm
- Closing plate required
- No
- Colour
- Green/yellow
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454507435
- SAP 1000052721
- Code 8831846
