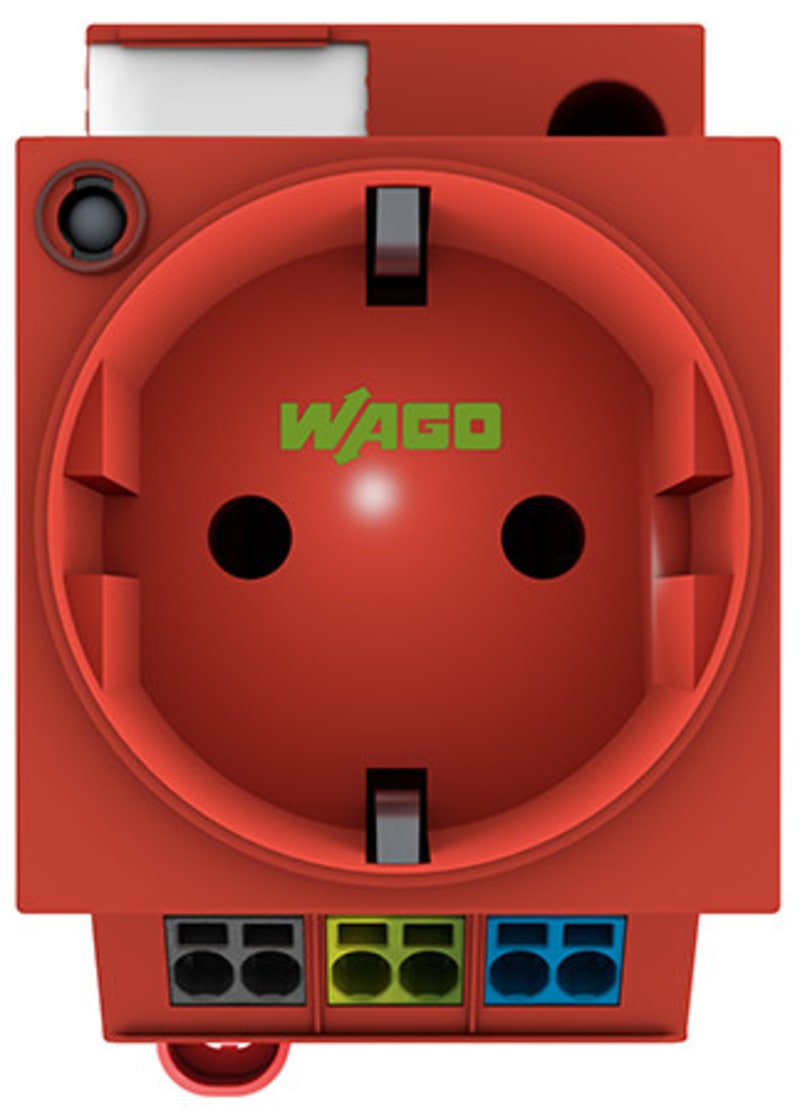

Switchgear cabinet outlet, for plug, type F, CEE 7/4 (Schuko) (709-583)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 709-583 Manufacturer description: Switchgear cabinet outlet; for DIN-rail and screw mounting; for plug, type F, CEE 7/4 (Schuko); common in DE, NL, AT; with LED status indicator; with Push-in Cage Clamp double connection; red. Switchgear Cabinet Outlet.
Technical Specifications
- Manufacturer part number (MPN)
- 709-583
- EAN / GTIN
- 4055143718301
- HS code
- 8536.90
- Sales unit
- pcs
- Number of spacings
- 3 -fach
- Mounting type
- DIN-35 rail
- Power loss Pl (note)
- LED status indication and contact resistance
- Power loss Pl (max.)
- 1.8 W
- Rated current
- 16 A
- Connection technology
- Push-in CAGE CLAMP®
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Solid conductor
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Fine-stranded conductor
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 2.5 mm² / 14 AWG
- Stranded conductor
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Width
- 44.8 mm / 1.732 inches
- Height
- 84.7 mm / 3.48 inches
- Depth
- 65 mm / 2.559 inches
- Depth from upper-edge of DIN-rail
- 60 mm / 2.362 inches
- Potential marking
- L ⏚ N
- Color
- red
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper alloy
- Contact Plating
- Sn
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Weight
- 81.6 g
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- BG
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,406
- eCl@ss 10.0
- 27-14-23-05
- eCl@ss 9.0
- 27-14-23-05
- ETIM 9.0
- EC001663
- ETIM 10.0
- EC001663
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Processing temperature (min.)
- -35. °C
- Processing temperature
- -35 °C
- Continuous operating temperature from
- -35 °C
- Continuous operating temperature up to
- 85 °C
- Continuous operating temperature
- -35 … +85 °C
- MPN
- 709-583
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143718301
- SAP 1200144282
- Code 82044142
Product Documentation
More from WAGO
WAGO

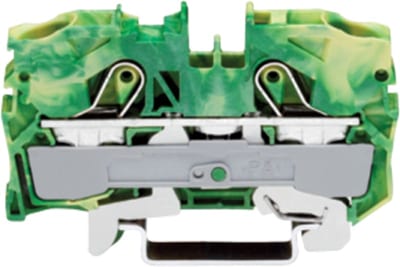

2-Conductor ground terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2010-1207)
WAGO

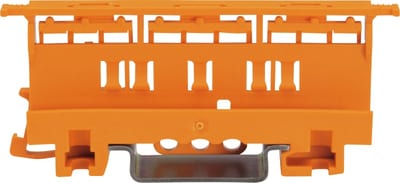

Holder for WAGO 221 in blister (221-510/995-002)
WAGO

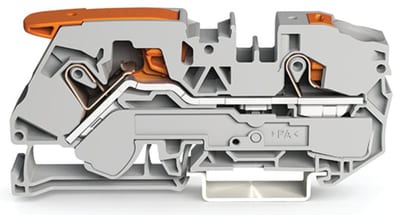

2-Conductor through terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2116-5201)
WAGO

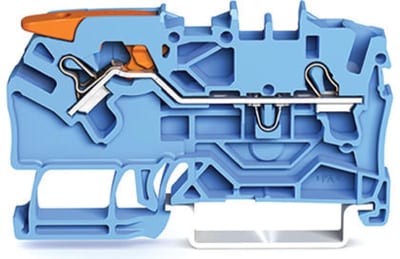

2-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2102-1204)
WAGO
Jumper; for jumper slot; 10-Way; insulated; light gray
859-410
WAGO

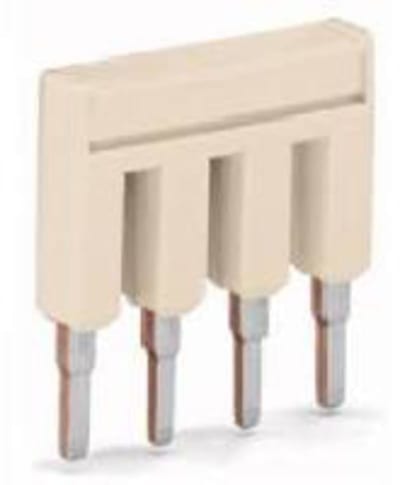

Jumper; 5-Way; insulated; light gray (2001-405)
WAGO
WAGO 289-178 RJ-45 Cat. 5 Interface Module with Shield Clamping Saddle
WAGO

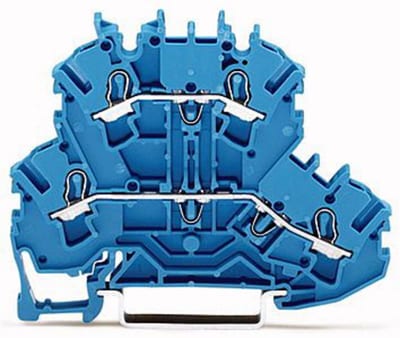

Double-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2002-2204)
