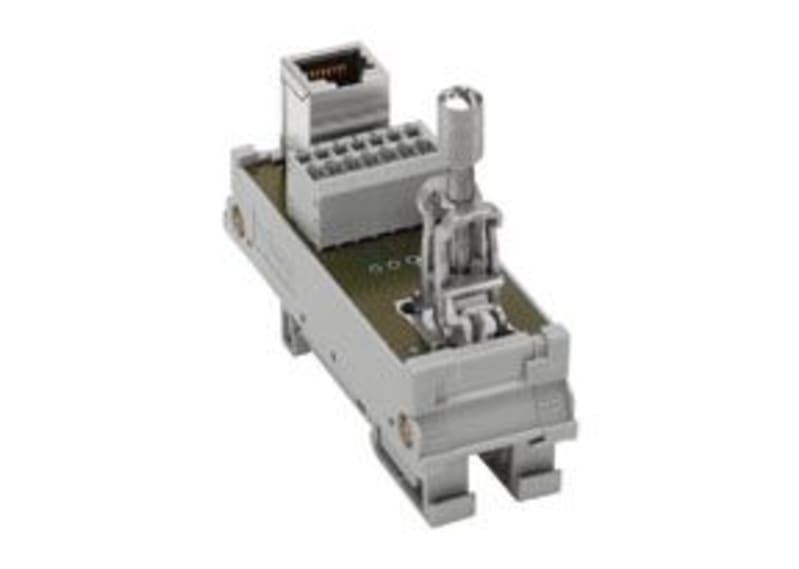

WAGO 289-178 RJ-45 Cat. 5 Interface Module with Shield Clamping Saddle
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 289-178 is a Cat. 5 RJ-45 interface module for PCB terminal blocks, mounted in a carrier with power jumper contacts and a shield clamping saddle. It provides a field-side spring-clamp connection alongside a control-side RJ-45 socket, with 10 poles rated 2.1 A at ≤35 VAC / ≤50 VDC and 1 kV dielectric strength. The shield saddle accepts cables up to 8 mm diameter to maintain screen continuity on the DIN-35 rail. Typical application is transitioning Ethernet-based fieldbus signals into control cabinets in industrial automation.
Technical Specifications
- Manufacturer part number (MPN)
- 289-178
- EAN / GTIN
- 4045454326142
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Operating voltage
- ≤ 35 VAC; ≤ 50 VDC
- Nominal current
- 2.1 A
- Insulation resistance
- ≥ 500 MΩ
- Specialty functions
- With power jumper contacts | with shield connection | With shield clamping saddle
- Dielectric strength (contact/contact) (AC, 1 min)
- 1 kVeff
- Mating cycles
- 1,000
- Transmission length (max.)
- 100 m
- Connection cable
- Cat. 5 (min.)
- WAGO shield clamping saddle
- 11 mm wide; cable diameter up to 8 mm
- Width
- 30 mm / 1.181 inches
- Height
- 85 mm / 3.346 inches
- Depth from upper-edge of DIN-rail
- 67 mm / 2.638 inches
- Mounting type
- DIN-35 rail
- Housing design
- Mounting carrier
- Fire load
- 0.541 MJ
- Weight
- 51.7 g
- Ambient temperature (operation)
- -40 … +85 °C (Actuation: -35 … +85 °C)
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- ≤ 85 % (non-condensing)
- Standards/specifications
- DNV
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 10 (1) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,402
- eCl@ss 10.0
- 19-17-90-01
- eCl@ss 9.0
- 19-17-90-01
- ETIM 9.0
- EC001121
- ETIM 10.0
- EC002780
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 289-178
- Type of electrical connection, field-sided
- Spring clamp connection
- Type of electrical connection, control sided
- RJ45
- Number of poles
- 10
- Rated current
- 2.1 A
- Depth
- 67 mm
- Mounting method
- DIN rail (top hat rail) 35 mm
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4045454326142
- SAP 1200793839
- Code 83958751
