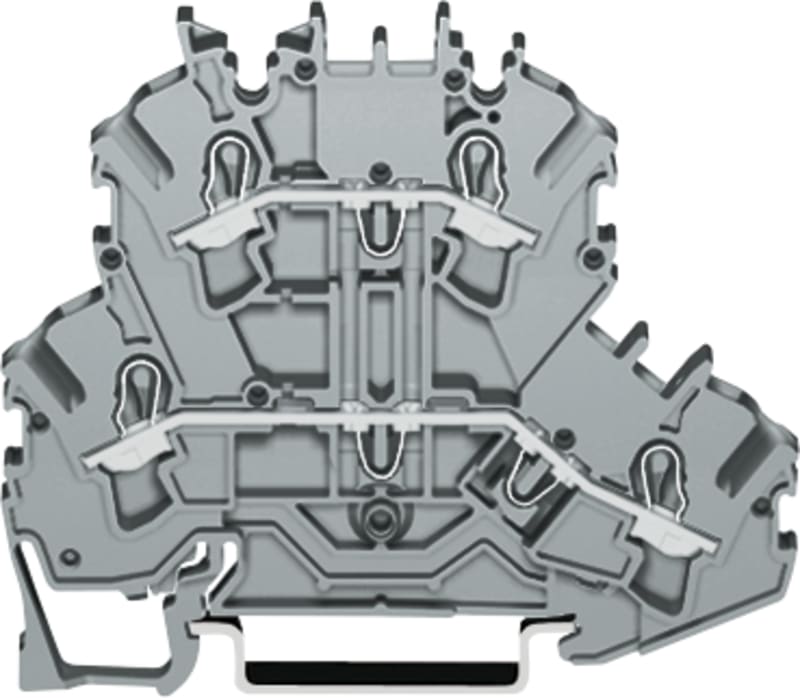

Double-deck terminal block, Blue conductor entry lower deck, for DIN-rail 35 x 15 and 35 x 7.5
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-2202 Manufacturer description: Double-deck terminal block; Through/through terminal block; N/L; without marker carrier; suitable for Ex e II applications; Blue conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray. DIN-rail terminal 2-tier N/L.
Technical Specifications
- Manufacturer part number (MPN)
- 2002-2202
- EAN / GTIN
- 4017332998765
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 4
- Total number of potentials
- 2
- Number of levels
- 2
- Number of jumper slots
- 4
- Width
- 5.2 mm / 0.205 inches
- Height
- 69.7 mm / 2.744 inches
- Depth from upper-edge of DIN-rail
- 51.7 mm / 2.035 inches
- Potential marking
- N/L
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.184 MJ
- Weight
- 10.2 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 2002-2202
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 5.2 mm
- Depth
- 51.7 mm
- Length
- 69.7 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332998765
- SAP 1000067784
- Code 8556329
Product Documentation
More from WAGO
WAGO
2-Conductor ground terminal block, 4 mm², for DIN-rail 35 x 15 and 35 x 7.5
2004-1207
WAGO
Power tap; for 50 mm² high-current tbs; Module width 16 mm; gray
285-447
WAGO
KBL1M 5X1,5 Plug/Open END
771-9985/206-101
WAGO
2-Conductor through terminal block, 50 mm², only for DIN 35 x 15 rail (285-154)
WAGO
Socket; with strain relief housing; 5-Pole; Cod. A; 4,00 mm²; black
770-105
WAGO
Shrink tube; for Smart Printer; Unshrunk diameter: 6.4 mm; white
211-503
WAGO
KBL 3X1,5 Plinth/Schuko PL 1M
771-9993/306-101
WAGO
End and intermediate plate; 1 mm thick; orange (2002-1692)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
