WAGO 249-118 Group Marker Carrier Gray Adjustable
Pricing
Request a quote
We reply within 24 hours
Product Description

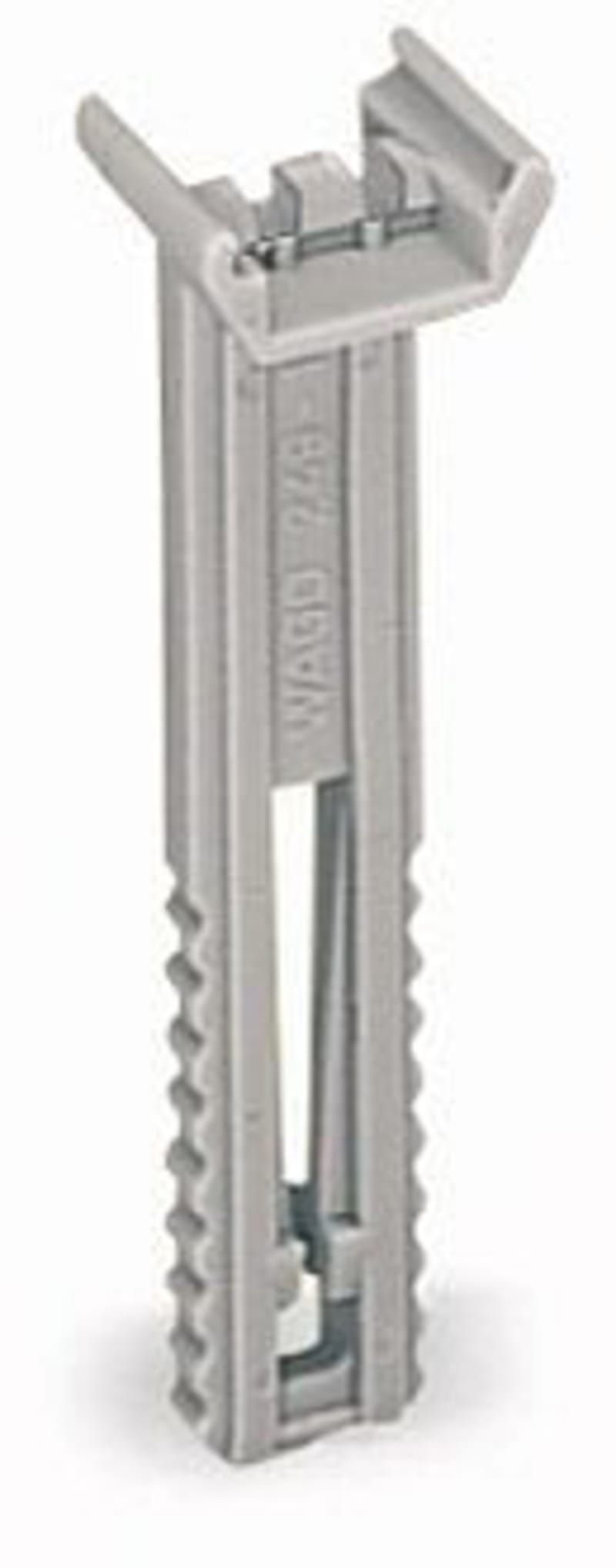

The WAGO 249-118 is a snap-on group marker carrier in gray polyamide (PA66) that fits the 249-116/117 end stops on terminal blocks. Height-adjustable from 43.5 mm to 59.5 mm and 10 mm wide, it accepts two WMB markers or a single continuous marker strip. Typical use is on rail-mounted terminal assemblies where multi-terminal groupings must be labelled together for identification during commissioning and maintenance.
Technical Specifications
- Manufacturer part number (MPN)
- 249-118
- EAN / GTIN
- 4017332188388
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Suitable
- for end stops (249‑116 and 249‑117); for 2 WMB markers or 1 continuous strip
- Properties
- snap-on type and adjustable in height from 43.5 mm to 59.5 mm
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Width
- 10 mm / 0.394 inches
- Color
- gray
- Weight
- 1.3 g
- Fire load
- 0.039 MJ
- Product Group
- 2 (Terminal Block Accessories)
- PU (SPU)
- 100 (25) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-40-75
- eCl@ss 9.0
- 27-14-40-75
- ETIM 9.0
- EC002248
- ETIM 10.0
- EC002248
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 249-118
- Material
- Plastic
- Height
- 43.5 mm
- Self adhesive mounting
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4017332188388
- SAP 1000024981
- Code 8225018
Product Documentation
More from WAGO
WAGO
2-Conductor ground terminal block, 35 mm², only for DIN 35 x 15 rail
285-137
WAGO
Mounting carrier; for 2-Conductor terminal blocks; 221 Series - 4 mm²; for screw mounting; white
221-502
WAGO
Mounting plate; for power supply and tap-off modules; Plastic; black
772-260
WAGO
Distribution terminal block, 1 x 6 mm² / 6 x 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2006-8035)
WAGO
Jumper; 9-Way; insulated; light gray (2002-409)
WAGO
Labels; for Smart Printer; permanent adhesive; 8 x 20 mm; 3000 pieces on roll; white
210-807
WAGO

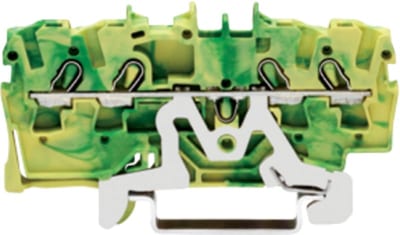

4-Conductor ground terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5
2002-1407
WAGO

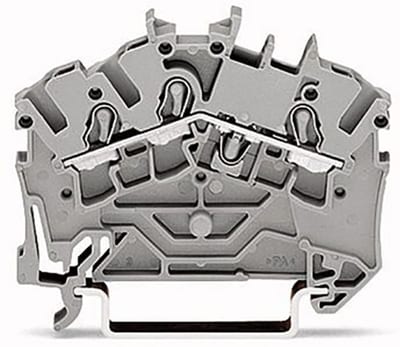

Jumper; 2-Way; insulated; light gray (2001-402)
