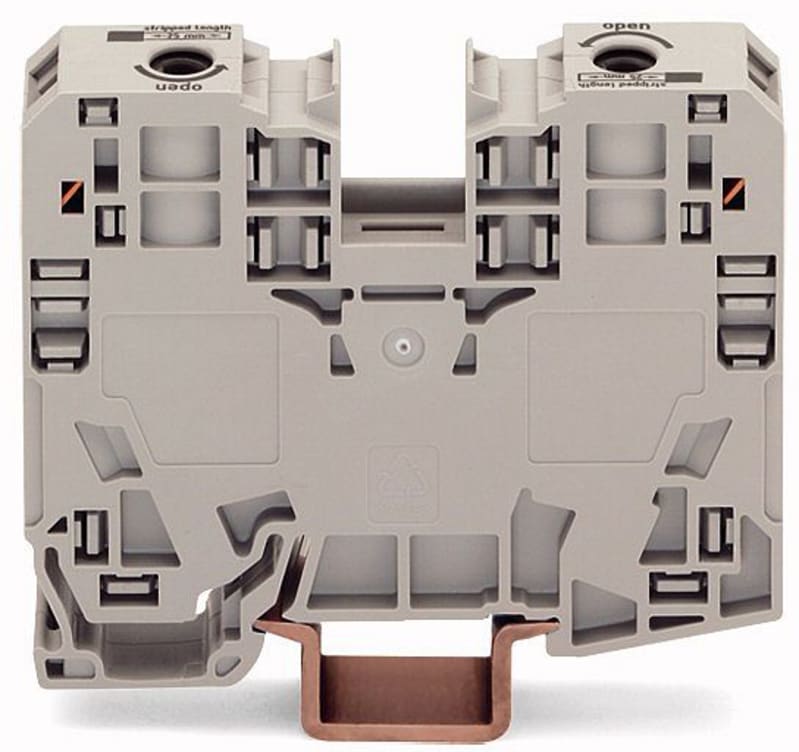

2-Conductor through terminal block, 35 mm², only for DIN 35 x 15 rail
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 285-135 Manufacturer description: 2-conductor through terminal block; 35 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 35,00 mm²; gray. DIN-rail terminal 2 conductor 35mm², 125A. Grey.
Technical Specifications
- Manufacturer part number (MPN)
- 285-135
- EAN / GTIN
- 4045454507381
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 16 mm / 0.63 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 63 mm / 2.48 inches
- Mounting type
- DIN-35 x 15 rail | DIN-rail 35 x 15
- Mounting (note)
- only suitable for DIN 35 x 15 rail
- Marking level
- Side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 1.099 MJ
- Weight
- 79.4 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 1 (Rail Mounted Terminal Blocks)
- PU (SPU)
- 15 pcs
- Packaging type
- box
- Country of origin
- PL
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 35 mm²
- EAN
- 4066966248548
- MPN
- 285-135
- Connectable conductor cross section solid-core
- 6–35 mm²
- Connectable conductor cross section multi-wired
- 6–35 mm²
- Rated current In
- 125 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Sideways
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 16 mm
- Depth
- 63 mm
- Length
- 86 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454507381
- SAP 1000016960
- Code 8129635
