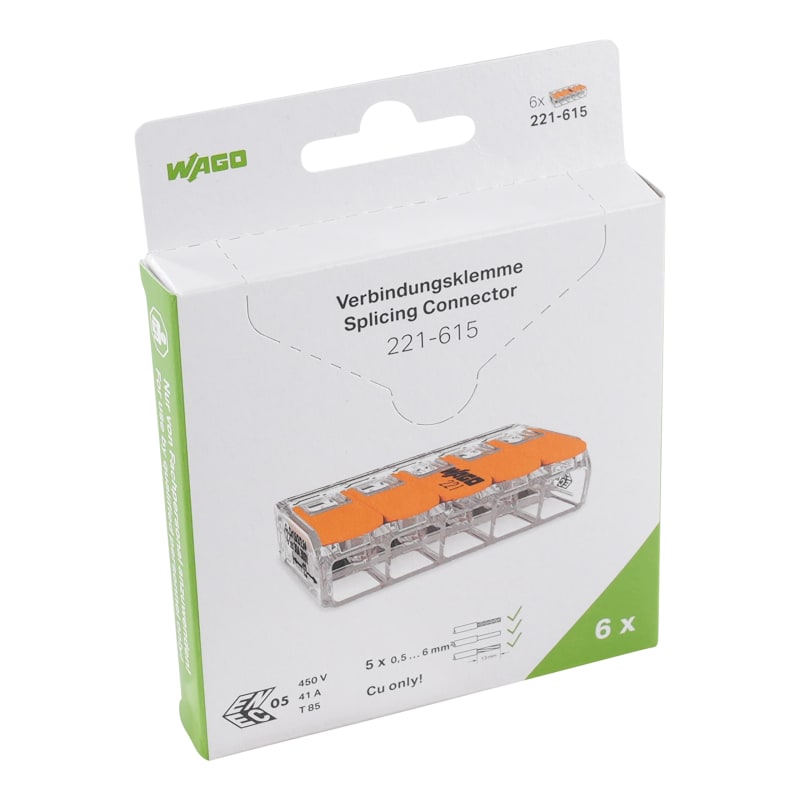

Wago Terminal block Blister (221-615/995-006)
Pricing
Request a quote
We reply within 24 hours
Product Description
Wago 221-615 / 1221965 in blisterpakke.
Technical Specifications
- Manufacturer part number (MPN)
- 221-615/995-006
- EAN / GTIN
- 4066966001778
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Clamping units
- 5
- Total number of potentials
- 1
- Width
- 36.7 mm / 1.445 inches
- Height
- 10.1 mm / 0.398 inches
- Depth
- 21.1 mm / 0.831 inches
- Color
- transparent
- Cover color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Fire load
- 0.1 MJ
- Actuator color
- orange
- Ambient temperature (operation)
- +85 °C
- Continuous operating temperature
- 105 °C
- Temperature marking per EN 60998
- T85
- PU (SPU)
- 150 (15) pcs
- Packaging type
- box
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Nominal current
- 41 A
- Nominal voltage
- 450 V
- Colour
- Colourless
- Number of clamp positions
- 5
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.5–6 mm²
- AWG-range
- 10–20
- Nominal cross section
- 0.5–6 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 20
- Max. AWG-size
- 10
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966001778
- SAP 1200568900
- Code 82933632
Product Documentation
