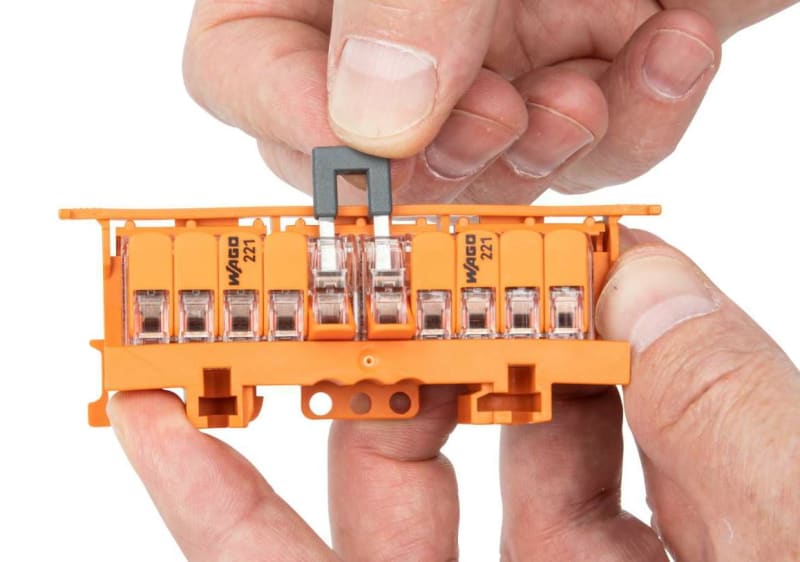

Jumper; for conductor entry; 2-Way; insulated; dark gray (221-942)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-942 Manufacturer description: Jumper; for conductor entry; 2-way; insulated; dark gray. Jumper link for 221.
Technical Specifications
- Manufacturer part number (MPN)
- 221-942
- EAN / GTIN
- 4055144067965
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Width
- 12.3 mm / 0.484 inches
- Height
- 3.8 mm / 0.15 inches
- Depth
- 23.9 mm / 0.941 inches
- Jumper assignment
- 1-2
- Color
- dark gray
- Insulation material (main housing)
- Polyamide (PA66)
- Weight of insulation material
- 0.28 g
- Weight
- 2.7 g
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 5 pcs
- Packaging type
- Bag
- Country of origin
- CN
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- ETIM 9.0
- EC000489
- ETIM 10.0
- EC000489
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 221-942
- Mounting method
- Pluggable
- Colour
- Grey
- Model
- Transverse connector
- Insulated
- Yes
- Rated voltage
- 400 V
- Number of bridged clamps
- 2
- With contact protection
- Yes
- Rated current In
- 41 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4055144067965
- SAP 1200483923
- Code 82617558
Product Documentation
