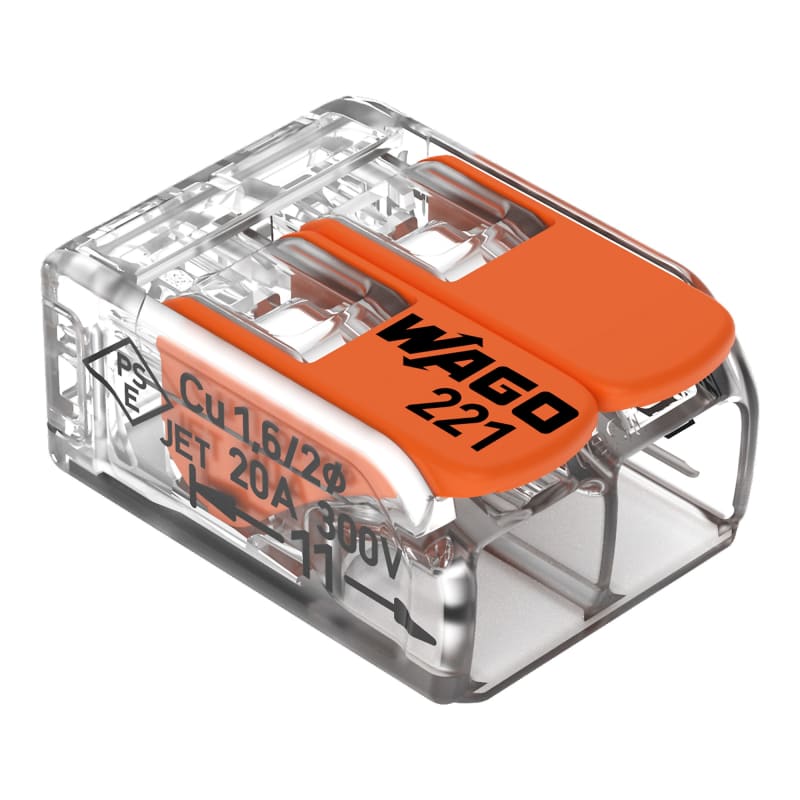

Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-412)
WAGO

Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-412)

Part number221-412EAN / GTIN4050821808435HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

WAGO 221-412 Manufacturer description: Splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent. Connection Terminals for all types of conductors.

Technical Specifications

Manufacturer part number (MPN)
221-412
EAN / GTIN
4050821808435
Sales unit
pcs
Package quantity
100 pcs
Clamping units
2
Total number of potentials
1
Width
13.1 mm / 0.516 inches
Height
8.3 mm / 0.327 inches
Depth
18.6 mm / 0.732 inches
Color
transparent
Material group
IIIa
Insulation material (main housing)
Polycarbonate (PC)
Flammability class per UL94
V2
Fire load
0.033 MJ
Actuator color
orange
Weight
1.7 g
Ambient temperature (operation)
+85 °C
Continuous operating temperature
105 °C
Temperature marking per EN 60998
T85
Product Group
7 (Push Wire Conn.)
PU (SPU)
1000 (100) pcs
Packaging type
Box
Country of origin
DE
Customs tariff number
85369010000
UNSPSC
39,121,409
eCl@ss 10.0
27-14-11-04
eCl@ss 9.0
27-14-11-04
ETIM 9.0
EC000446
ETIM 10.0
EC000446
ECCN
NO US CLASSIFICATION
RoHS Compliance Status
Compliant,No Exemption
Conductor cross-section
4 mm²
Nominal current
32 A
Nominal voltage
450 V
Colour
Orange
Number of clamp positions
2
Cable diameter
0.2–4 mm
Suitable for solid conductors
Yes
Conductor cross section solid (solid, stranded)
0.2–4 mm²
AWG-range
12–24
Nominal cross section
0.2–4 mm²
Suitable for multi-wire conductors
Yes
Suitable for flexible conductors
Yes
Transparent
Yes
With operation lever
Yes
Min. AWG-size
24
Max. AWG-size
12

Standards & Compliance

HS Code
8536.90

Cross References

  • EAN 4050821808435
  • SAP 1000592401
  • Code 8703727

Product Documentation

Document preview: Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-412) — Specification sheet

Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
