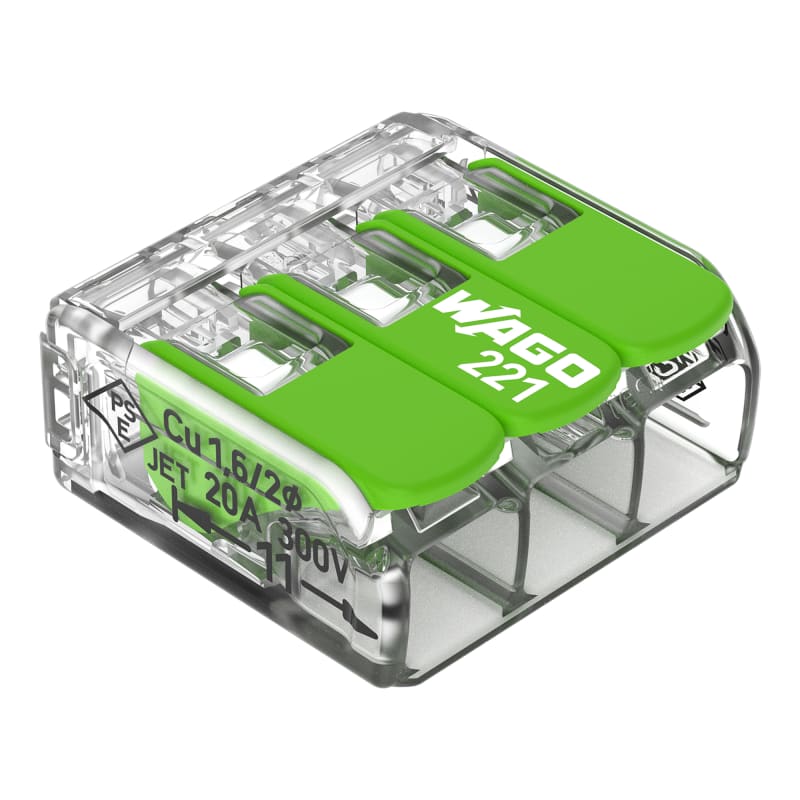

Splicing connector with levers, for all conductor types, max. 4 mm², 3-Conductor (221-423)
Pricing
Request a quote
We reply within 24 hours
Product Description
Wago 221 green 3-way splice connector, cross-section 0.2-4mm², 32A, 450V, with operating lever, transparent. Manufacturer description: Splicing connector with levers; for all conductor types; max. 4 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent.
Technical Specifications
- Manufacturer part number (MPN)
- 221-423
- EAN / GTIN
- 4066966345438
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 3
- Total number of potentials
- 1
- Width
- 18.8 mm / 0.74 inches
- Height
- 8.4 mm / 0.327 inches
- Depth
- 18.6 mm / 0.732 inches
- Color
- transparent
- Material group
- IIIa
- Housing material
- bio-circular PC
- Insulation material (main housing)
- Polycarbonate (PC)
- Insulation material (actuator)
- PBT from post-consumer recycled material
- Flammability class per UL94
- V2
- Fire load
- 0.043 MJ
- Actuator color
- green
- Weight
- 2.5 g
- Ambient temperature (operation)
- +85 °C
- Continuous operating temperature
- 105 °C
- Temperature marking per EN 60998
- T85
- PU (SPU)
- 500 (50) pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Colour
- Colourless
- Number of clamp positions
- 3
- Cable diameter
- 0.2–4 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.2–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 24
- Max. AWG-size
- 12
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966345438
- SAP 1200691002
- Code 83343511
Product Documentation
