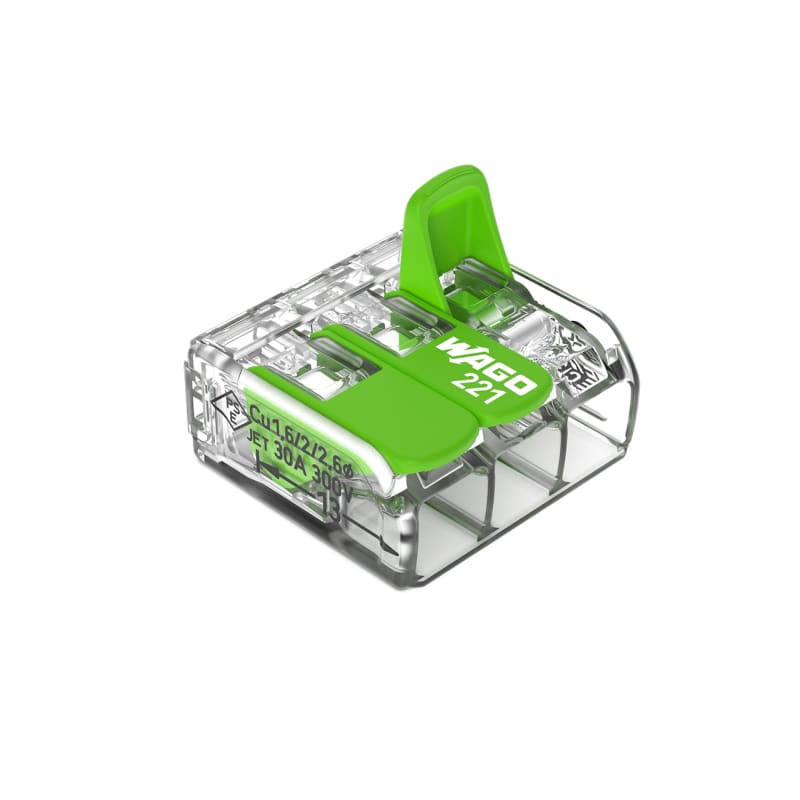

Splicing connector with levers, for all conductor types, max. 6 mm², 3-Conductor (221-623)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-623 Manufacturer description: Splicing connector with levers; for all conductor types; max. 6 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent. Terminal block 6mm2 3-conductor. Connection Terminals for all types of conductors. Made of recycled materials.
Technical Specifications
- Manufacturer part number (MPN)
- 221-623 EAN / GTIN: 4066966613315 Sales unit: pcs Package quantity: 30 pcs Clamping units: 3 Total number of potentials: 1 Width: 22.9 mm / 0.902 inches Height: 10.1 mm / 0.398 inches Depth: 21.1 mm / 0.831 inches Color: transparent Cover color: transparent material group: IIIa Housing material: bio-circular PC Insulation material (main housing): Polycarbonate (PC) Insulation material (actuator): Bio-circular PBT Flammability class per UL94: V2 Fire load: 0.095 MJ Actuator color: green Weight: 4.4 g Ambient temperature (operation): +85 °C Continuous operating temperature: 105 °C Temperature marking per EN 60998: T85 PU (SPU): 300 (30) pcs Packaging type: Box Country of origin: DE Customs tariff number: 85369010000 UNSPSC: 39,121,409 ETIM 9.0: EC000446 ETIM 10.0: EC000446 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption Conductor cross-section: 6 mm² Nominal current: 41 A Nominal voltage: 450 V Colour: Green Number of clamp positions: 3 Cable diameter: 0.5–6 mm Suitable for solid conductors: Yes Conductor cross section solid (solid, stranded): 0.5–6 mm² Suitable for multi-wire conductors: Yes Suitable for flexible conductors: Yes Transparent: Yes With operation lever: Yes Min. AWG-size: 20 Max. AWG-size: 10 Nominal cross section (installation side): 0.5–6 mm²
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966613315
- SAP 1200832007
- Code 84016455
Product Documentation
More from WAGO
WAGO
Splicing connector with levers, for all conductor types, max. 4 mm², 5-Conductor (221-425)
WAGO
2-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2202-1201)
WAGO
Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-422)
WAGO
Splicing connector with levers Green Range, for all conductor types, max. 4 mm², 10-Conductor
221-430
WAGO
PUSH WIRE® splicing connector, for solid and stranded conductors, max. 4 mm², 2-Conductor
2773-402
WAGO
Splicing Connector Set; L-BOXX® Mini; 221 Series (887-850)
WAGO
Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting; orange
221-500
WAGO
Linect® T-connector; 5-Pole; Cod. I; 1 input; 2 outputs; blue
770-7105
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 221-623?
- 221-623 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 221-623.
- What is the HS code for 221-623?
- The customs tariff (HS) code for 221-623 is 8536.90.
- Who manufactures 221-623?
- 221-623 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 221-623?
- Yes — the 221-623 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 221-623?
- The minimum order quantity is 1.
- Is 221-623 available?
- Yes — 221-623 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
