WAGO

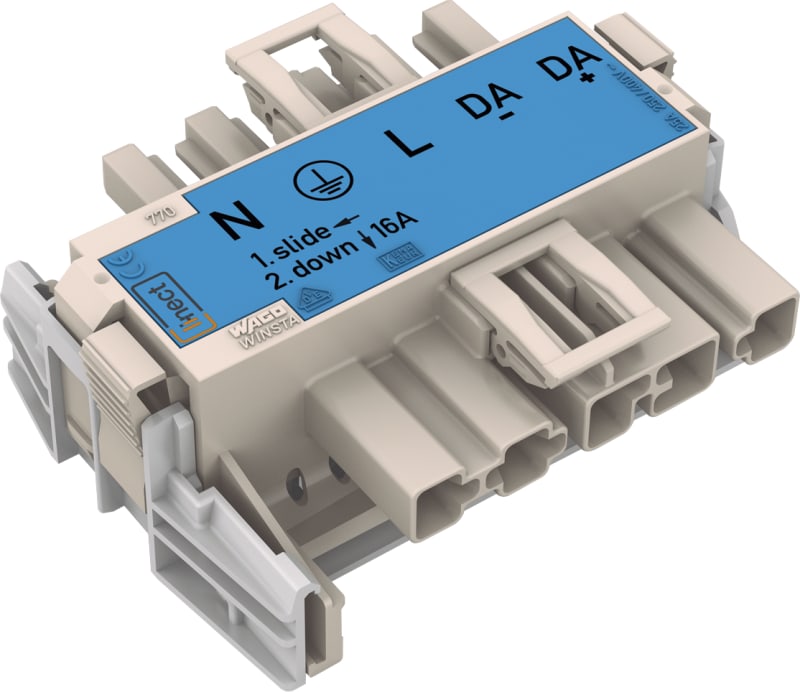

Linect® T-connector; 5-Pole; Cod. I; 1 input; 2 outputs; blue
Part number770-7105EAN / GTIN4050821000402HS code8536.69
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 770-7105 Manufacturer description: Linect® T-connector; 5-pole; Cod. I; 1 input; 2 outputs; blue. Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 770-7105
- EAN / GTIN
- 4050821000402
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Total number of potentials
- 5
- PE function
- Preceding PE contact
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 75.5 mm / 2.972 inches
- Height
- 40.5 mm / 1.594 inches
- Depth
- 56.6 mm / 2.228 inches
- Use
- DALI, Lighting Management
- Coding
- I
- Variable coding
- No
- Marking
- N ⏚ L DA- DA+
- Potential marking
- N ⏚ L DA- DA+
- Mating force of a plug-in connection
- Approx. 20 … 70 N (depending on pole number)
- Retention force of a plug-in connection
- When locked: > 80 N
- Unmating force of a plug-in connection
- Unlocked: approx. 20 … 70 N (depending on pole number)
- Number of mating cycles
- 200, without resistive load
- Type of distribution box
- Linect® T-connector
- Protection type
- IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Contact type (pluggable connector)
- Socket/plug
- Mismating protection
- Yes
- Locking lever
- Yes
- Locking of plug-in connection
- Locking lever
- Number of locking levers
- 2
- Color
- blue
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 0.78 MJ
- Weight
- 41.6 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 20 pcs
- Packaging type
- box
- Country of origin
- PL
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-44-06-02
- eCl@ss 9.0
- 27-44-06-02
- ETIM 9.0
- EC002566
- ETIM 10.0
- EC002566
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 131651-65-5 | 144317-44-2 | 220133-51-7 | 220689-12-3 | 25628-08-4 | 29420-49-3 | 375-73-5 | 503155-89-3 | 507453-86-3 | 68259-10-9
- RoHS Compliance Status
- Compliant,No Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- aa3b6b25-f159-40f1-a839-e1990ac0087b
- SCIP notification number (Belgium)
- bcf0ed1b-d2a6-4a15-91c2-45ae1524391f
- SCIP notification number (Bulgaria)
- dbdffb0b-896d-4af5-b33e-5eb27c5db145
- SCIP notification number (Czech Republic)
- 8052bba5-64ab-4f5a-8b8d-f6681f6ea87f
- SCIP notification number (Denmark)
- d826f846-ffc0-45ec-8f78-7bfa92767954
- SCIP notification number (Finland)
- 869c621f-fad1-4816-939a-47b54190a9d5
- SCIP notification number (France)
- d37e6c09-29cc-4a56-be50-cbb191446213
- SCIP notification number (Germany)
- 5ebc786a-dbd2-4400-bb7c-e0c1fa629f38
- SCIP notification number (Hungary)
- 7213a003-02ce-44cd-bdc2-6e6d9383b7bf
- SCIP notification number (Italy)
- 2ecf5e19-e915-48cd-9818-4af8aff3683a
- SCIP notification number (Netherlands)
- c18f3f94-d952-49e5-9bb3-ddb3e09e3002
- SCIP notification number (Poland)
- 6dceed6d-7204-4b16-a37f-b18fb3105e39
- SCIP notification number (Romania)
- 3454d912-995e-4c6d-9a6c-d48de76b0dde
- SCIP notification number (Sweden)
- 098d4581-1b9b-42d8-aea6-2a13e298b5df
- MPN
- 770-7105
- Rated voltage
- 400 V
- Rated current
- 25 A
- Number of poles
- 5
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Male
- Built-in version
- Built-in part/plug-in connection
- Insert direction
- Straight
- Connection size thread
- No thread connection
- Number of connections per pole
- 2
- Mechanical coding
- Yes
- Colour coding/contact insert
- Blue
- Colour of the separate adaptor piece
- Without adapter piece
- Housing colour
- White
- Type of locking
- Integrated in plug-in connector
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 4 kV
- Length
- 56.6 mm
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821000402
- SAP 1000094474
- Code 8943469
Product Documentation
Document preview: Linect® T-connector; 5-Pole; Cod. I; 1 input; 2 outputs; blue (770-7105) — Specification sheet
