Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray
Pricing
Request a quote
We reply within 24 hours
Product Description

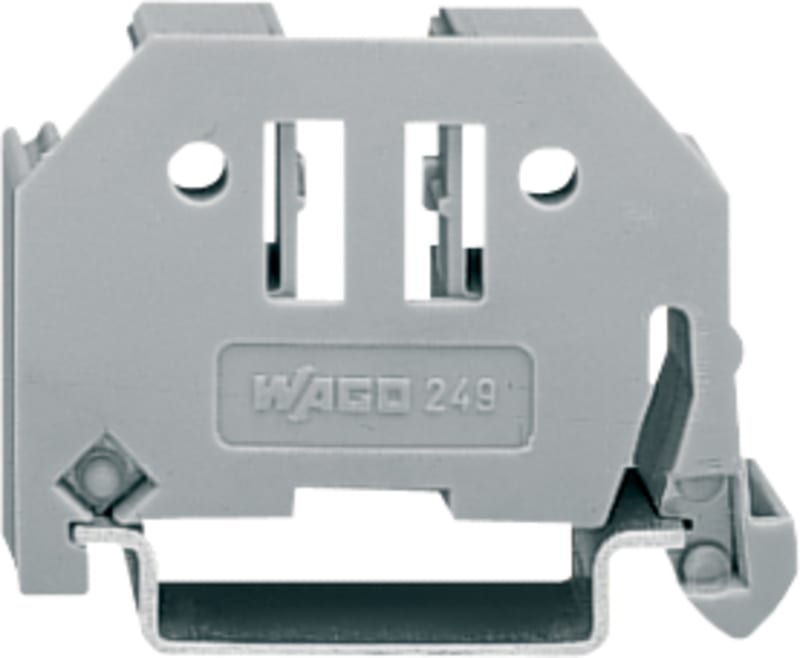

WAGO 249-116 Manufacturer description: Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray. End stop DIN35, Width 6mm.
Technical Specifications
- Manufacturer part number (MPN)
- 249-116
- EAN / GTIN
- 4017332270823
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Mounting type
- DIN-35 rail
- Width
- 6 mm / 0.236 inches
- Height
- 44 mm / 1.732 inches
- Depth
- 35 mm / 1.378 inches
- Depth from upper-edge of DIN-rail
- 28 mm / 1.102 inches
- Color
- gray
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.099 MJ
- Weight
- 3.4 g
- Product Group
- 2 (Terminal Block Accessories)
- PU (SPU)
- 100 (25) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-11-35
- eCl@ss 9.0
- 27-14-11-35
- ETIM 9.0
- EC001041
- ETIM 10.0
- EC001041
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 249-116
- Mounting method
- DIN rail (top hat rail) 35 mm
- Colour
- Grey
- Length
- 44 mm
- Material
- Plastic
- Width/grid dimension
- 6 mm
- Type of latching
- Screwless
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4017332270823
- SAP 1000051924
- Code 8816783
