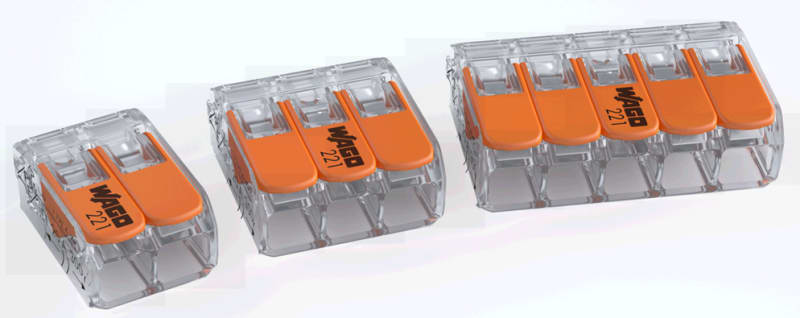

Splicing connector with levers, for all conductor types, max. 6 mm², 3-Conductor (221-613)
WAGO

Splicing connector with levers, for all conductor types, max. 6 mm², 3-Conductor (221-613)

Part number221-613EAN / GTIN4055143704335HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

WAGO 221-613 Manufacturer description: Splicing connector with levers; for all conductor types; max. 6 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent. WAGO 221-613.

Technical Specifications

Manufacturer part number (MPN)
221-613
EAN / GTIN
4055143704335
Sales unit
pcs
Package quantity
30 pcs
Clamping units
3
Total number of potentials
1
Width
22.9 mm / 0.902 inches
Height
10.1 mm / 0.398 inches
Depth
21.1 mm / 0.831 inches
Color
transparent
Cover color
transparent
Material group
IIIa
Insulation material (main housing)
Polycarbonate (PC)
Flammability class per UL94
V2
Fire load
0.065 MJ
Actuator color
orange
Weight
4 g
Ambient temperature (operation)
+85 °C
Continuous operating temperature
105 °C
Temperature marking per EN 60998
T85
PU (SPU)
300 (30) pcs
Packaging type
box
Country of origin
CH
Customs tariff number
85369010000
UNSPSC
39,121,409
eCl@ss 10.0
27-14-11-04
eCl@ss 9.0
27-14-11-04
ETIM 9.0
EC000446
ETIM 10.0
EC000446
ECCN
NO US CLASSIFICATION
RoHS Compliance Status
Compliant,No Exemption
Conductor cross-section
6 mm²
Nominal current
41 A
Nominal voltage
450 V
Colour
Colourless
Number of clamp positions
3
Suitable for solid conductors
Yes
Conductor cross section solid (solid, stranded)
0.5–6 mm²
AWG-range
10–20
Nominal cross section
0.5–6 mm²
Suitable for multi-wire conductors
Yes
Suitable for flexible conductors
Yes
Transparent
Yes
With operation lever
Yes
Min. AWG-size
20
Max. AWG-size
10

Standards & Compliance

HS Code
8536.90

Cross References

  • EAN 4055143704335
  • SAP 1200095847
  • Code 81953668

Product Documentation

Document preview: Splicing connector with levers, for all conductor types, max. 6 mm², 3-Conductor (221-613) — Specification sheet

Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.

Frequently asked questions

Where can I buy 221-613?
221-613 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
What is the manufacturer part number for this WAGO product?
The manufacturer part number is 221-613.
What is the HS code for 221-613?
The customs tariff (HS) code for 221-613 is 8536.90.
Who manufactures 221-613?
221-613 is a WAGO product in the Electrical Components range.
Is a datasheet available for 221-613?
Yes — the 221-613 datasheet can be viewed and downloaded on this page.
What is the minimum order quantity for 221-613?
The minimum order quantity is 1.
Is 221-613 available?
Yes — 221-613 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
