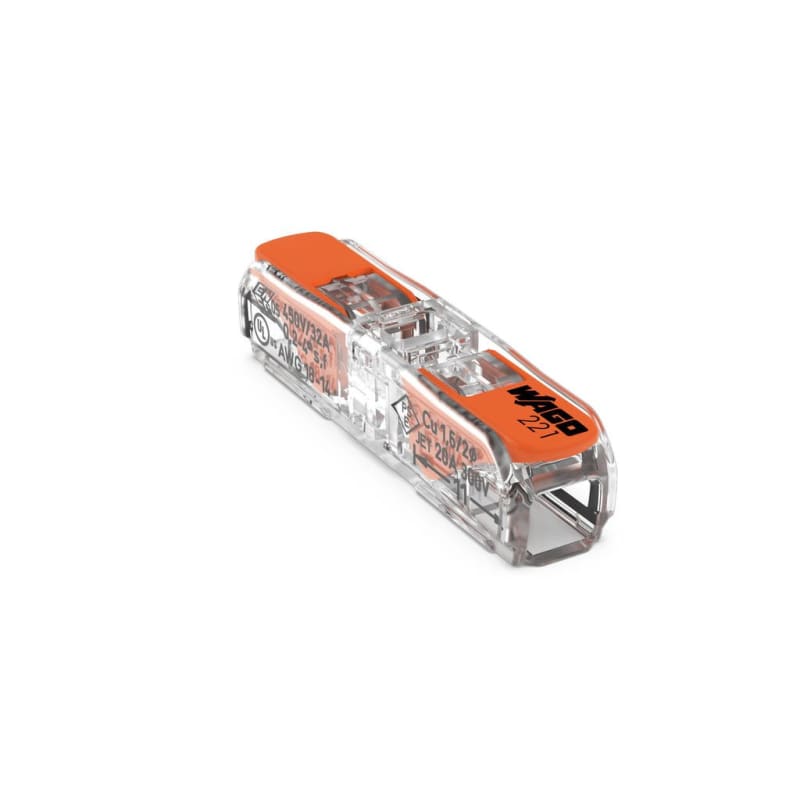

Inline splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-2411)
WAGO

Inline splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-2411)

Part number221-2411EAN / GTIN4055144049404HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

WAGO 221-2411 Manufacturer description: Inline splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent. Terminal block 2,5mm2, 2 Conductor joint 450V/32A.

Technical Specifications

Manufacturer part number (MPN)
221-2411
EAN / GTIN
4055144049404
Sales unit
pcs
Package quantity
60 pcs
Clamping units
2
Width
8.1 mm / 0.319 inches
Height
8.9 mm / 0.35 inches
Depth
35.5 mm / 1.398 inches
Color
transparent
Cover color
transparent
Material group
IIIa
Insulation material (main housing)
Polycarbonate (PC)
Flammability class per UL94
V2
Fire load
0.05 MJ
Actuator color
orange
Weight of insulation material
0.84 g
Weight
2.3 g
Continuous operating temperature
-60 … +105 °C
PU (SPU)
600 (60) pcs
Packaging type
box
Country of origin
CH
Customs tariff number
85369010000
UNSPSC
39,121,409
ETIM 9.0
EC000446
ETIM 10.0
EC000446
ECCN
NO US CLASSIFICATION
RoHS Compliance Status
Compliant,No Exemption
Conductor cross-section
4 mm²
Nominal current
32 A
Nominal voltage
450 V
Colour
Colourless
Number of clamp positions
2
Suitable for solid conductors
Yes
Conductor cross section solid (solid, stranded)
0.2–4 mm²
Suitable for multi-wire conductors
Yes
Suitable for flexible conductors
Yes
Transparent
Yes
With operation lever
Yes
Min. AWG-size
20
Max. AWG-size
14
Type of locking/unlocking
None

Standards & Compliance

HS Code
8536.90

Cross References

  • EAN 4055144049404
  • SAP 1200496091
  • Code 82618226

Product Documentation

Document preview: Inline splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-2411) — Specification sheet

Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
