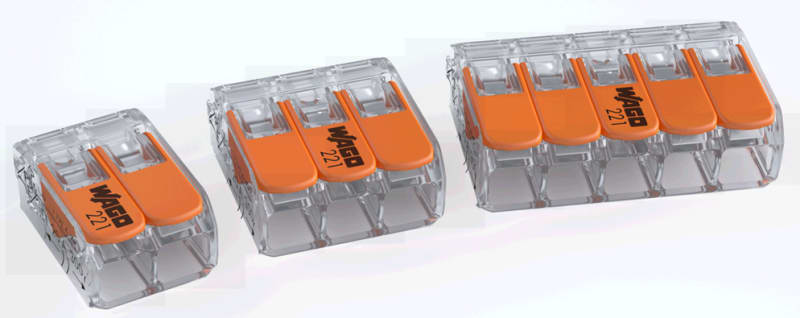

Splicing connector with levers, for all conductor types, max. 4 mm², 5-Conductor (221-415)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-415 Manufacturer description: Splicing connector with levers; for all conductor types; max. 4 mm²; 5-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent. Connection Terminals for all types of conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 221-415
- EAN / GTIN
- 4055143234658
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Clamping units
- 5
- Total number of potentials
- 1
- Width
- 30 mm / 1.181 inches
- Height
- 8.4 mm / 0.331 inches
- Depth
- 18.6 mm / 0.732 inches
- Color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Fire load
- 0.074 MJ
- Actuator color
- orange
- Weight
- 4 g
- Ambient temperature (operation)
- +85 °C
- Continuous operating temperature
- 105 °C
- Temperature marking per EN 60998
- T85
- Product Group
- 7 (Push Wire Conn.)
- PU (SPU)
- 250 (25) pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- Nominal current
- 41 A
- Nominal voltage
- 450 V
- Colour
- Orange
- Number of clamp positions
- 5
- Cable diameter
- 0.2–4 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.5–6 mm²
- AWG-range
- 12–24
- Nominal cross section
- 0.2–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 24
- Max. AWG-size
- 12
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143234658
- SAP 1000693072
- Code 8405042
Product Documentation
