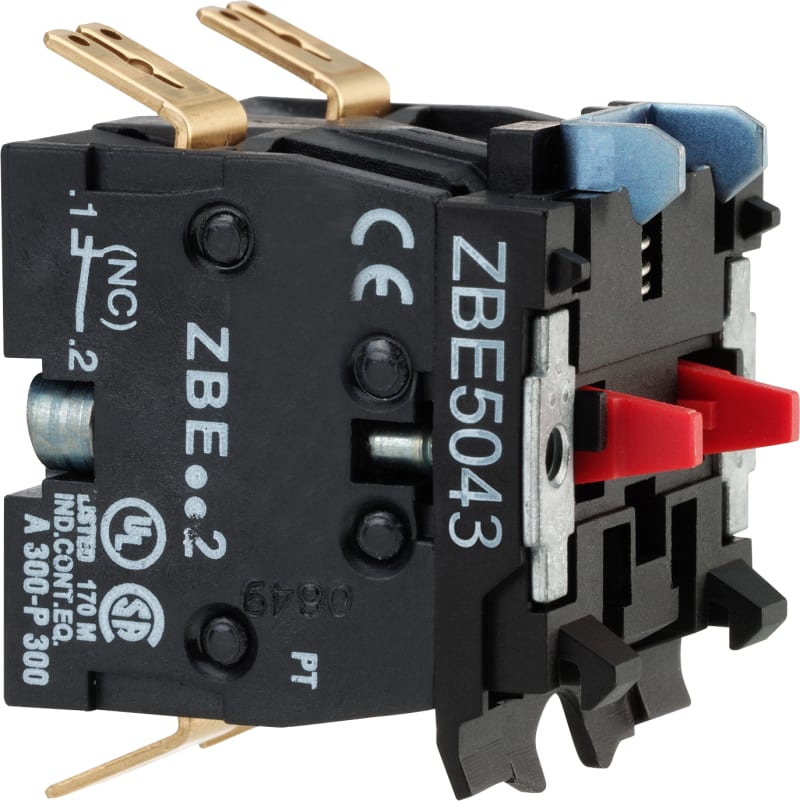

Telemecanique ZBE5043 Contact Block 2 NC, Faston Connectors, for Harmony XB4/XB5

Telemecanique ZBE5043 double contact block, 2 NC, slow-break, Ith 10 A, Faston connectors, for Harmony XB4 and XB5 pushbuttons.

Manufacturer part number (MPN)

ZBE5043

EAN / GTIN

3389119042291

Sales unit

pcs

Package quantity

5 pcs

Contact configuration

2 NC

Range of product

Harmony XB4; Harmony XB5

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

1

IP degree of protection

IP20 conforming to IEC 60529

Contact operation

Slow-break

Contact block type

Double

Contacts usage

High power switching contacts

Connections - terminals

Faston connector, connection size: 1 x 6.35 mm; Faston connector, connection size: 2 x 2.8 mm

Product weight

0.032 kg

Contacts type and composition

2 NC

Positive opening

With

Mechanical durability

10000000 cycles

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

1.1 A at 125 V, DC-13, P300 conforming to IEC 60947-5-1

Mounting of block

Front mounting

Electrical composition code

C15 (quantity <= 1)

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Warranty (in months)

18

Country of origin

France

HS Code

8536.50

• EAN 3389119042291
• SAP 1000707757
• Code 8324562
