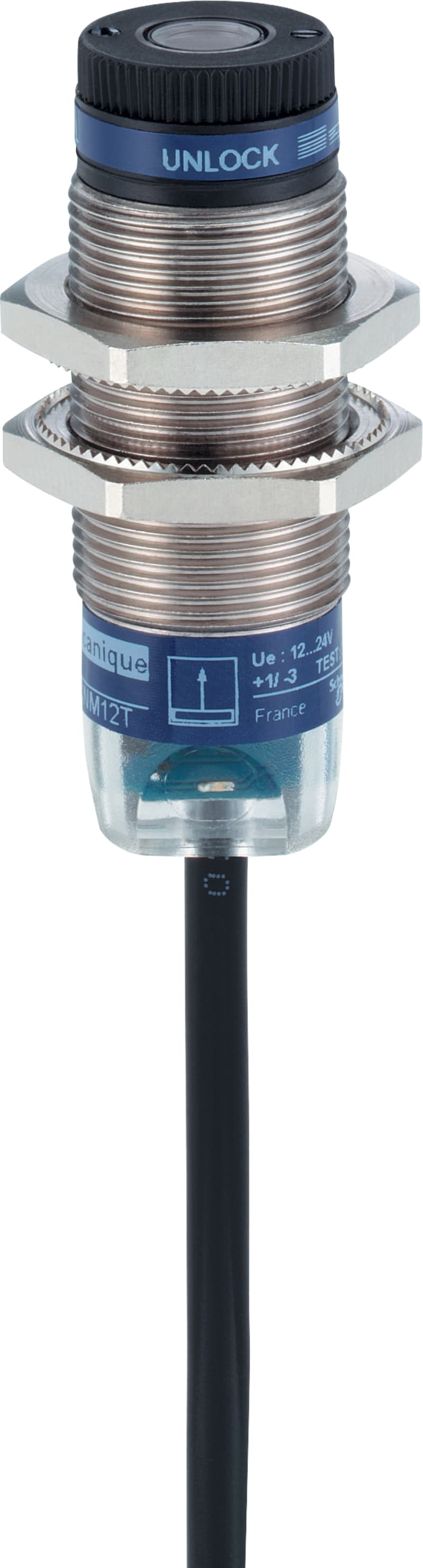

Telemecanique XUBLBKCNL2T Laser Photoelectric Sensor M18, Metal, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUBLBKCNL2T XUB M18 cylindrical laser photoelectric sensor, metal housing, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUBLBKCNL2T
- EAN / GTIN
- 3666916033524
- Sales unit
- pcs
- Diameter
- 18 mm
- Cable length
- 2 m
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 100000 mm
- Max. switching distance
- 100000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable radial
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 52 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -10–45 °C
- Response time
- 2 ms
- Switching frequency
- 1500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Type of light
- Green light
- Material of cable sheath
- Polyurethane (PUR)
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916033524
- SAP 1000045375
- Code 8778191
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKN2902P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Telemecanique
Telemecanique XCSE7341 Safety Limit Switch, 2 NC + 1 NO
Telemecanique
Telemecanique XCKN2102G11 Limit Switch, Plunger, 1 NC + 1 NO, PG11 entry
Telemecanique
Telemecanique XZCP57V12L20 Sensor Cable, M12 female straight, 2-pin, PUR, 20 m
Telemecanique
Telemecanique XUSZSC138R Mounting Column for Safety Light Curtains, 1380 mm
Telemecanique
Telemecanique XZCP1241L25 Sensor Cable, M12 female angled, 4-pin, 25 m
Telemecanique
Telemecanique XZCR1510041J2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XZCP1041L2 Sensor Cable, M8 female angled, 4-pin, 2 m
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUBLBKCNL2T?
- XUBLBKCNL2T can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUBLBKCNL2T.
- What is the HS code for XUBLBKCNL2T?
- The customs tariff (HS) code for XUBLBKCNL2T is 8536.50.
- Who manufactures XUBLBKCNL2T?
- XUBLBKCNL2T is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUBLBKCNL2T?
- Yes — the XUBLBKCNL2T datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUBLBKCNL2T?
- The minimum order quantity is 1.
- Is XUBLBKCNL2T available?
- Yes — XUBLBKCNL2T is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
