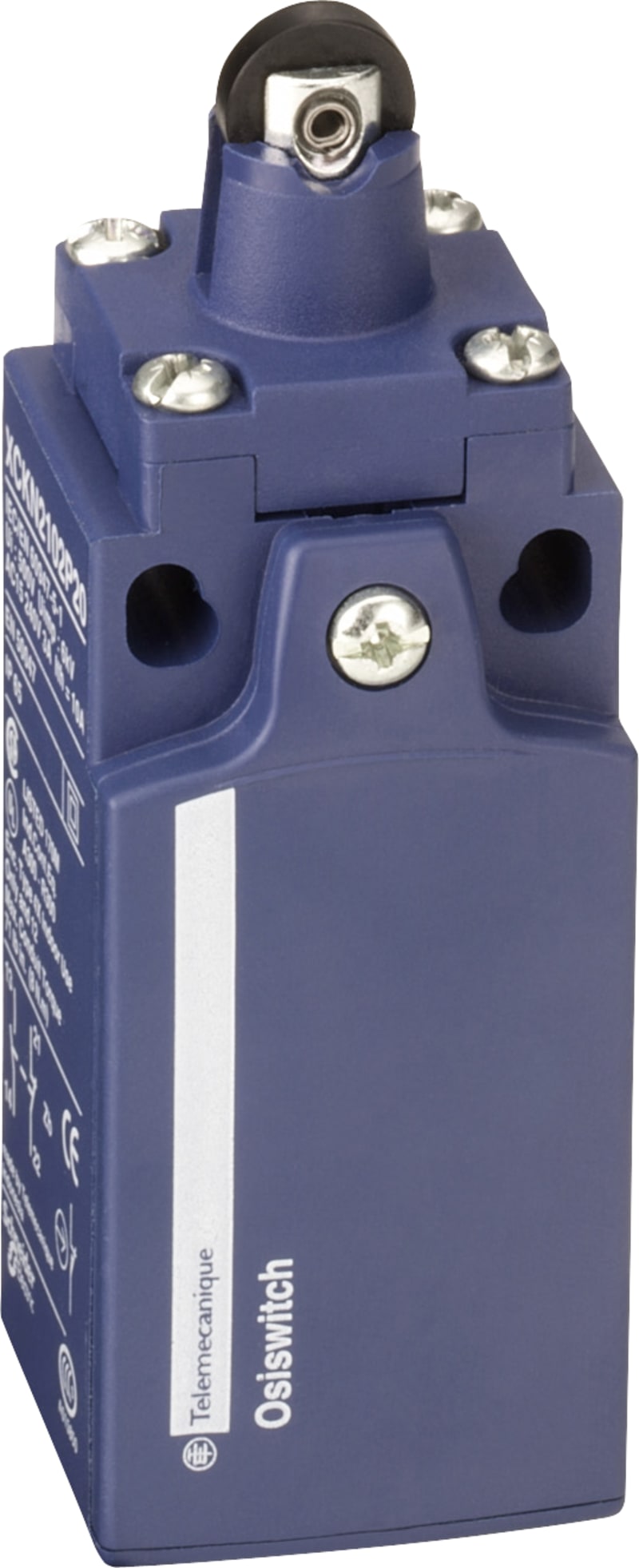

Telemecanique XCKN2902P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKN2902P20 limit switch (position switch), plunger actuator, 1 NC + 1 NO contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKN2902P20
- EAN / GTIN
- 3666916054758
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 85 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916054758
- SAP 1000027627
- Code 8217538
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCSE7341 Safety Limit Switch, 2 NC + 1 NO
Telemecanique
Telemecanique XCKN2102G11 Limit Switch, Plunger, 1 NC + 1 NO, PG11 entry
Telemecanique
Telemecanique XZCP57V12L20 Sensor Cable, M12 female straight, 2-pin, PUR, 20 m
Telemecanique
Telemecanique XUSZSC138R Mounting Column for Safety Light Curtains, 1380 mm
Telemecanique
Telemecanique XZCP1241L25 Sensor Cable, M12 female angled, 4-pin, 25 m
Telemecanique
Telemecanique XZCR1510041J2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XZCP1041L2 Sensor Cable, M8 female angled, 4-pin, 2 m
Telemecanique
Telemecanique OsiSense XS8D1A1MAL5 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, 2-Wire AC/DC, NO, pre-wired cable
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCKN2902P20?
- XCKN2902P20 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCKN2902P20.
- What is the HS code for XCKN2902P20?
- The customs tariff (HS) code for XCKN2902P20 is 8536.50.
- Who manufactures XCKN2902P20?
- XCKN2902P20 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCKN2902P20?
- Yes — the XCKN2902P20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCKN2902P20?
- The minimum order quantity is 1.
- Is XCKN2902P20 available?
- Yes — XCKN2902P20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
