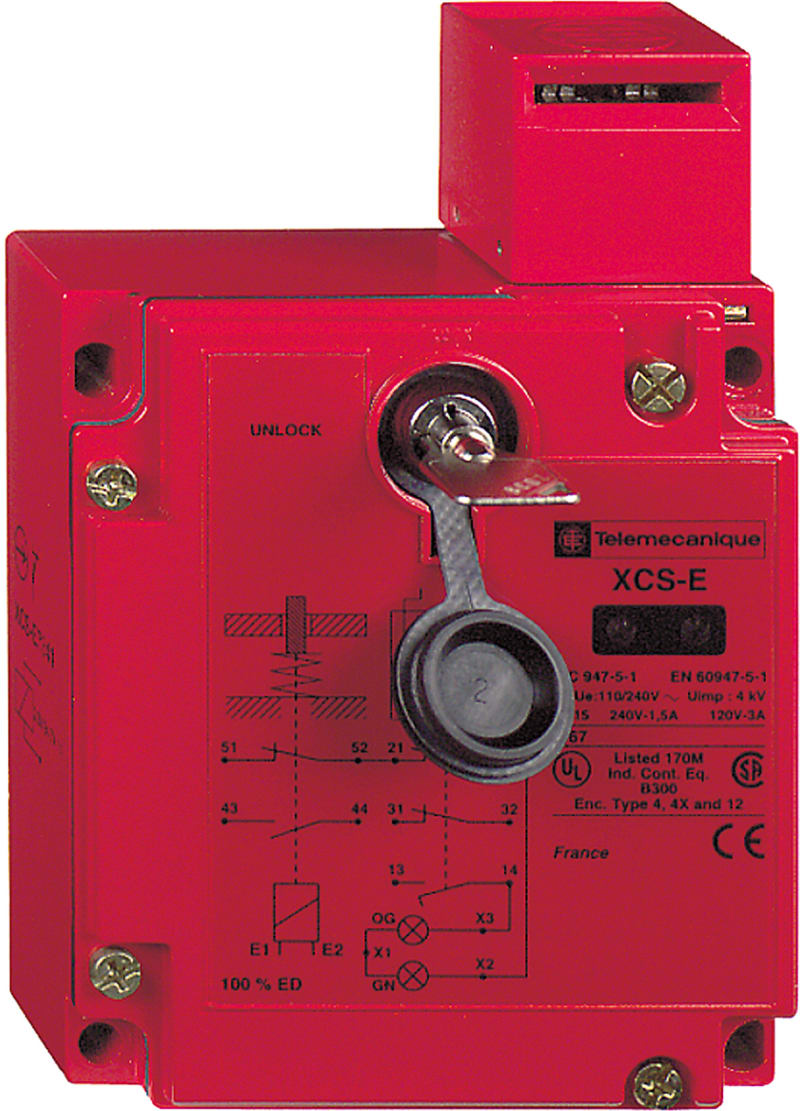

Telemecanique XCSE7341 Safety Limit Switch, 2 NC + 1 NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSE7341 safety limit switch with positive opening contacts, 2 NC + 1 NO contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSE7341
- EAN / GTIN
- 3666916048559
- HS code
- 8536.90
- Sales unit
- pcs
- Contact configuration
- 2 NC + 1 NO
- Type of locking
- Quiescent current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 220–240 V
- Rated control supply voltage magnet drive AC 60 Hz
- 220–240 V
- Rated control supply voltage magnet drive DC
- 220–240 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 98 mm
- With escape release
- No
- Height of sensor
- 146 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–40 °C
- Guard locking force
- 2000 N
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916048559
- SAP 1000049367
- Code 8849699
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKN2102G11 Limit Switch, Plunger, 1 NC + 1 NO, PG11 entry
Telemecanique
Telemecanique XZCP57V12L20 Sensor Cable, M12 female straight, 2-pin, PUR, 20 m
Telemecanique
Telemecanique XUSZSC138R Mounting Column for Safety Light Curtains, 1380 mm
Telemecanique
Telemecanique XZCP1241L25 Sensor Cable, M12 female angled, 4-pin, 25 m
Telemecanique
Telemecanique XZCR1510041J2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XZCP1041L2 Sensor Cable, M8 female angled, 4-pin, 2 m
Telemecanique
Telemecanique OsiSense XS8D1A1MAL5 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS130BHPAL5 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NO, pre-wired cable
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSE7341?
- XCSE7341 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSE7341.
- What is the HS code for XCSE7341?
- The customs tariff (HS) code for XCSE7341 is 8536.90.
- Who manufactures XCSE7341?
- XCSE7341 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSE7341?
- Yes — the XCSE7341 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSE7341?
- The minimum order quantity is 1.
- Is XCSE7341 available?
- Yes — XCSE7341 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
