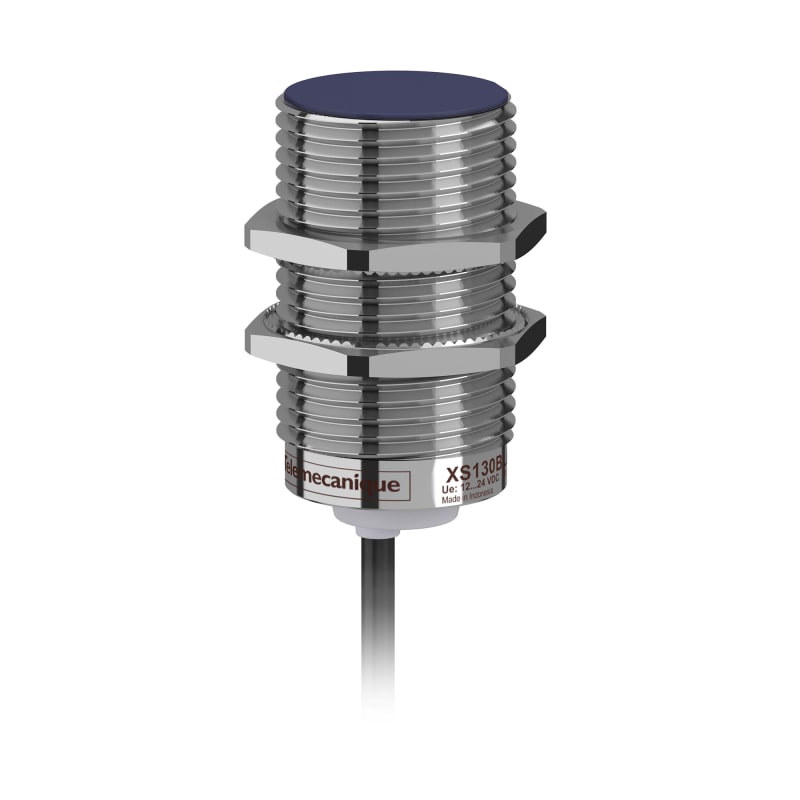

Telemecanique OsiSense XS130BHPAL5 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NO, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS130BHPAL5 is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 15 mm and a flush-mountable (shielded) sensing face. It provides a PNP (3-wire DC) output, switching NO (normally open), via pre-wired cable. IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS130BHPAL5
- EAN / GTIN
- 3666916017388
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- flush-mountable (shielded)
- Nominal sensing distance Sn
- 15 mm
- Output
- PNP (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- pre-wired cable
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 36 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916017388
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUK2APBNL2R Photoelectric Through-Beam Receiver, Plastic, PNP, NC, 2 m cable
Telemecanique
Telemecanique XZCP0766L10 Sensor Cable, M8 female angled, 3-pin, 10 m
Telemecanique
Telemecanique XUSL2E30H106NWC Safety Light Curtain Type 2, 30 mm resolution, hand detection, 1060 mm protected height
Telemecanique
Limit Switch Body NC+NC snap AMP
ZCMD29AM4
Telemecanique
Telemecanique XUYRCO989SP Photoelectric Through-Beam Set, Red Light, PNP, Sn 4 m, M8 Connector
Telemecanique
Telemecanique OsiSense XS130BHNAL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, NPN, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XMLP200PD130 Pressure Transmitter, 0–200 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique ZCKD41 Operating Head for ZCK Limit Switches
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS130BHPAL5?
- XS130BHPAL5 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS130BHPAL5.
- What is the HS code for XS130BHPAL5?
- The customs tariff (HS) code for XS130BHPAL5 is 8536.50.
- Who manufactures XS130BHPAL5?
- XS130BHPAL5 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS130BHPAL5?
- Yes — the XS130BHPAL5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS130BHPAL5?
- The minimum order quantity is 1.
- Is XS130BHPAL5 available?
- Yes — XS130BHPAL5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
