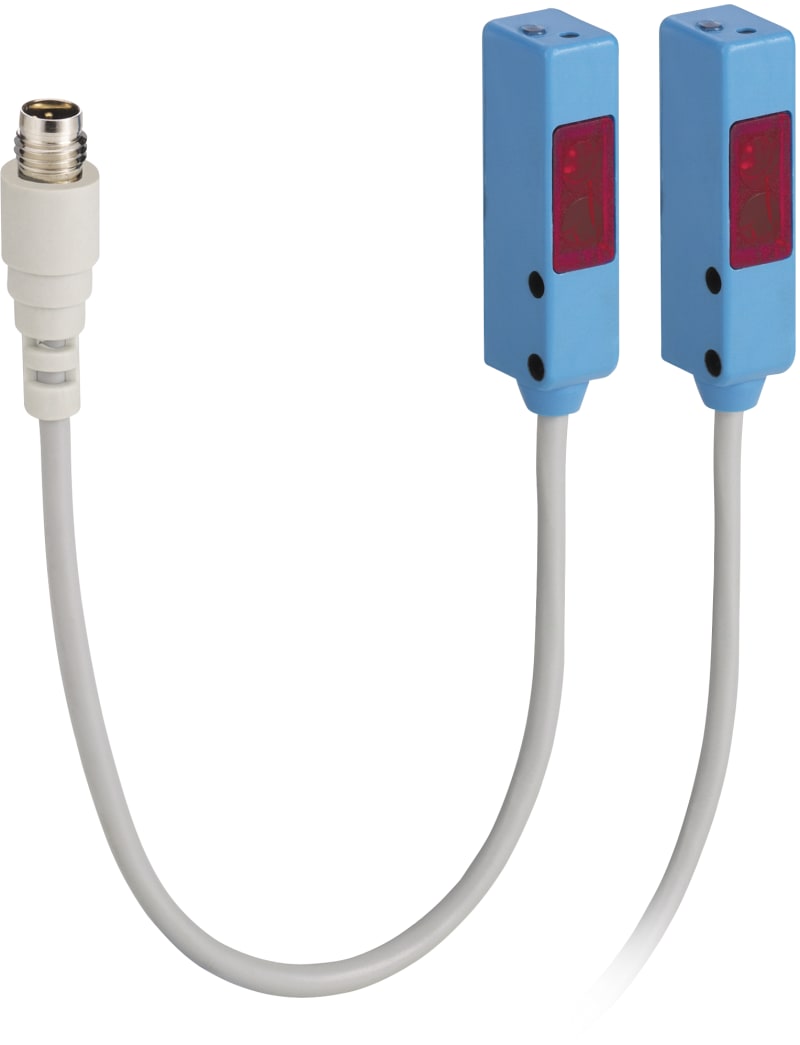

Telemecanique XUYRCO989SP Photoelectric Through-Beam Set, Red Light, PNP, Sn 4 m, M8 Connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUYRCO989SP photoelectric through-beam emitter and receiver set, red light, PNP output, sensing distance 4 m, M8 connectors.
Technical Specifications
- Manufacturer part number (MPN)
- XUYRCO989SP EAN / GTIN: 3666916031964 Sales unit: pcs Package quantity: 15 pcs Output type: PNP Nominal sensing distance Sn: 4 m Scope of delivery of the one-way system: Receiver Pre failure notice: No With time function: No Rated switching distance: 4000 mm Max. switching distance: 4000 mm Max. output current: 100 mA With reflector: No Analogue output 0 V ... 10 V: No Analogue output 0 mA ... 20 mA: No Analogue output 4 mA ... 20 mA: No Analogue output -10 V ... +10 V: No With other analogue output: No With communication interface analogue: No With communication interface AS-Interface: No With communication interface CANOpen: No With communication interface DeviceNet: No With communication interface Ethernet: No With communication interface INTERBUS: No With communication interface PROFIBUS: No With communication interface RS-232: No With communication interface RS-422: No With communication interface RS-485: No With communication interface SSD: No With communication interface SSI: No Type of electric connection: Connector M8 Type of switching output: PNP/PNP Type of switch function: Programmable/configurable Operation agent-safety class: Safety class 0 Explosion safety category for gas: None Explosion safety category for dust: None Construction type housing: Special construction Width sensor: 10 mm Height of sensor: 40 mm Length of sensor: 13.5 mm Sensing mode: Light switching material of optical surface: Plastic Housing material: Plastic Max. output current at protected output: 100 mA Min. reflector distance: 0 mm Ambient temperature: 0–50 °C Switching frequency: 500 Hz Type of safety according to IEC 61496-1: 1 Voltage type: AC/DC With monitoring function downstream switching devices: No Laser protection class: None Type of light: Laser diode, red light With restart blockage: No Suitable for safety functions: No Degree of protection (IP): IP67K Country of origin: France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916031964
- SAP 1000341336
- Code 8997532
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS130BHNAL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, NPN, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XMLP200PD130 Pressure Transmitter, 0–200 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique ZCKD41 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique OsiSense XS912S4PAM12 Inductive Proximity Sensor — M12 stainless barrel, Sn 10 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XS118B3PAL2 Inductive Proximity Sensor Ø18 mm, Threaded, PNP NO, 2 m cable
Telemecanique
Telemecanique XMEP400BV21F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
Telemecanique
Telemecanique XUYFANEP100005 Infrared Fork Sensor 95 × 5 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XUM5ANXBM8 Photoelectric Sensor, Diffuse with Background Suppression, Sn 1.5 m, NPN, M8 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUYRCO989SP?
- XUYRCO989SP can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUYRCO989SP.
- What is the HS code for XUYRCO989SP?
- The customs tariff (HS) code for XUYRCO989SP is 8536.50.
- Who manufactures XUYRCO989SP?
- XUYRCO989SP is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUYRCO989SP?
- Yes — the XUYRCO989SP datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUYRCO989SP?
- The minimum order quantity is 1.
- Is XUYRCO989SP available?
- Yes — XUYRCO989SP is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
