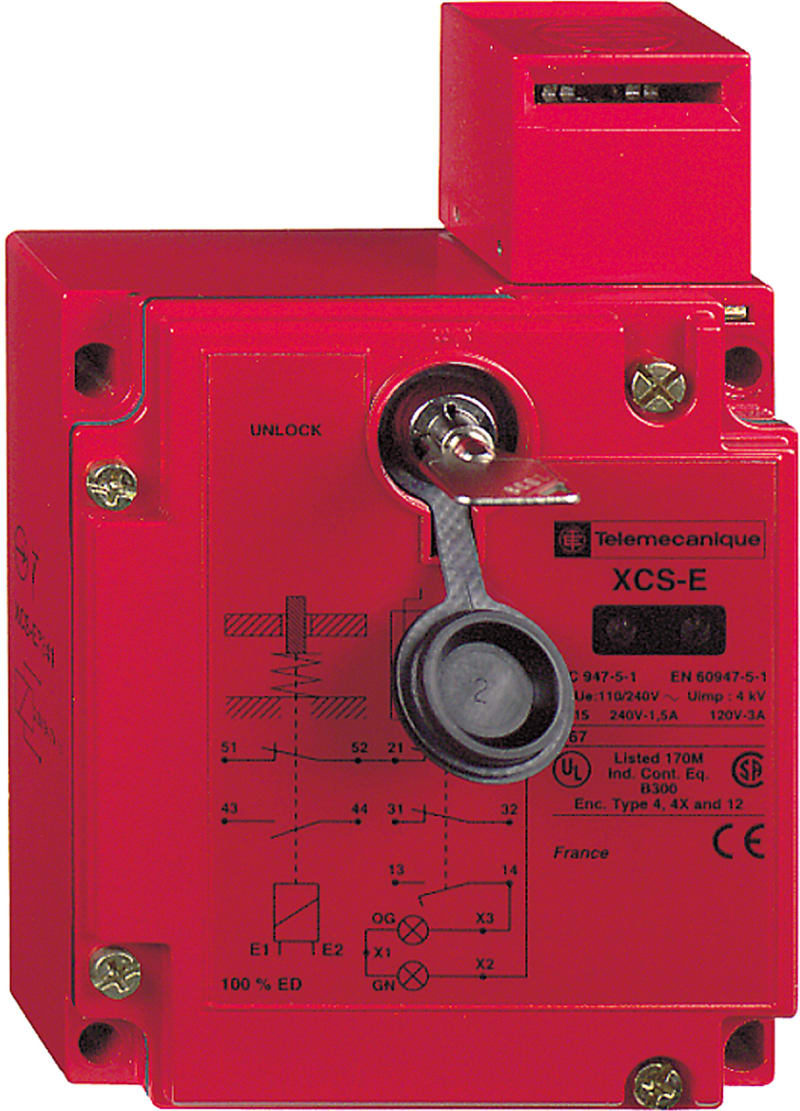

Telemecanique XCSE5341 Safety Limit Switch, 1 NC + 2 NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSE5341 safety limit switch with positive opening contacts, 1 NC + 2 NO contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSE5341
- EAN / GTIN
- 3666916048894
- HS code
- 8536.90
- Sales unit
- pcs
- Contact configuration
- 1 NC + 2 NO
- Type of locking
- Quiescent current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 220–240 V
- Rated control supply voltage magnet drive AC 60 Hz
- 220–240 V
- Rated control supply voltage magnet drive DC
- 220–240 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 98 mm
- With escape release
- No
- Height of sensor
- 146 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–40 °C
- Guard locking force
- 2000 N
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 2
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916048894
- SAP 1000086725
- Code 8825891
Product Documentation
