SS316 90A Elbow BSP Female 1-1/2"
Generic · Pipes, Fittings & Flanges · 90A Elbows
SS316 cast 90-degree elbow with female BSP threads on both ends. 1-1/2" size for high-flow systems.
Specifications
- Part number
- 316-ELB90F-1-1/2BSP
- HS code
- 7307.19
- Material
- AISI 316 Stainless Steel
- Pressure rating
- 150 lbs (PN10)
- Temperature range
- -20°C to +200°C
- Standard
- ISO 4144
- Standard size
- 1-1/2" BSP
- Thread standard
- BSP (ISO 228-1)
Compatibility

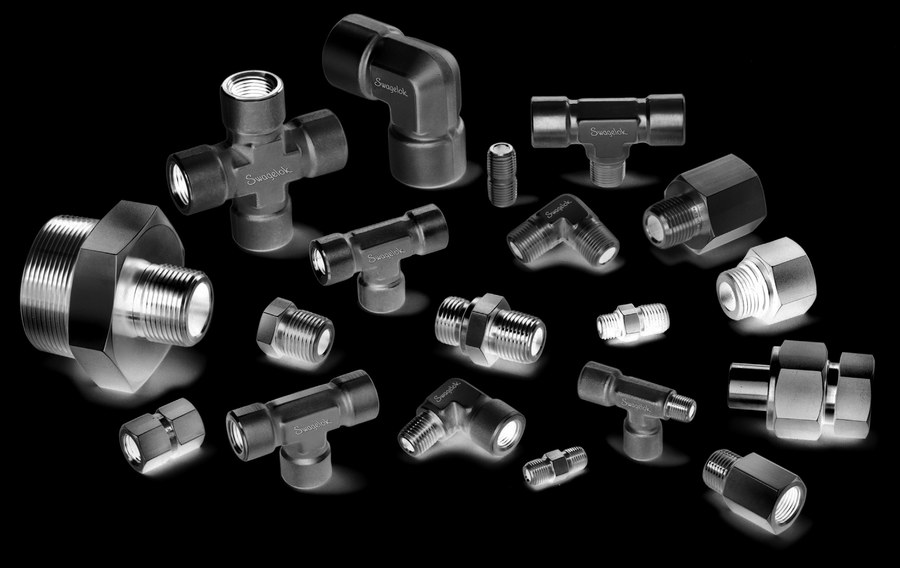

Interchanges with Swagelok 316 SS pipe fitting female 90 degree elbow series (-E-RT), but Swagelok does not list a 1-1/2 in. BSPT pipe elbow in 316; item is available from other OEMs only.
Standards
- ISO 9001
- NACE MR0175/ISO
- ASME B31.3
- ISO 228-1
- ISO 4144
- ANSI B16.11
Approvals
