Product Description

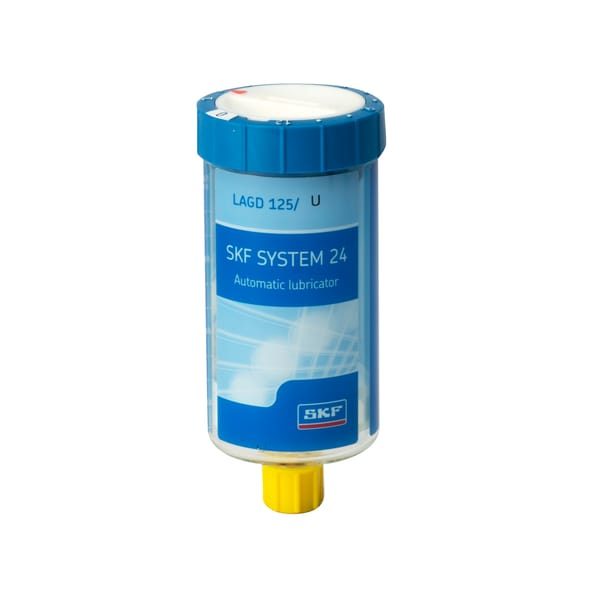

SKF SYSTEM 24 LAGD 125/U gas-driven single-point automatic lubricator, 125 ml, supplied empty for oil filling. Dispense rate adjustable 1-12 months; ATEX zone 0. SKF designation LAGD 125/U. Used by maintenance technicians and installation crews across industrial, marine and construction service.
Technical Specifications
- SKF SYSTEM 24 LAGD 125/U gas-driven single-point automatic lubricator supplied empty, suitable for filling with oil only. Tool-free activation and time-setting; dispense rate adjustable from 1 to 12 months, stoppable or adjustable in service. Gas-cell driven with a transparent container for visual inspection of dispense rate. Capacity 125 ml; operating temperature range -20 to +60 degC (-5 to +140 degF); maximum operating pressure 5 bar; 1/4 inch RC outlet thread; ingress protection IP 68. Intrinsically safe, ATEX approved for zone 0
- II 1G Ex ia IIC T6 Ga (EC type-examination DEKRA 21ATEX0015 X). SKF order designation LAGD 125/U.
- Outer diameter
- 54 mm
- Maximum pressure
- 5 bar
- Lubricator capacity
- 125 ml
- Nominal emptying time
- Adjustable, 1–12 months
- Recommended storage temperature
- 20 °C
- Recommended applications
- Empty lubricator for oil filling
- Series
- LAGD
- Version
- Lubricator
- Type
- Lubricator (LAGD)
- Drive mechanism
- Gas cell producing inert gas
- Certifications
- NSF H1;Halal;Kosher
- Power source
- Integrated gascell
- Special features
- Non-return valve included
- Degree of protection (IP)
- IP 68
- Maximum feed line length
- 1.5 m
- Connecting thread
- R 1/4
- Shelf life
- 2 year
- Intrinsically safe approval
- II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
- Ambient temperature range
- -20–60 °C
- Relative humidity
- 0 to 90%, non-condensing
- Product lifecycle type
- Disposable
- Mounting orientation
- Any, head up preferred
- Country of Manufacturing (COM code)
- 12 - Finland
- Product net weight
- 0.088 kg
- eClass code
- 23-06-10-14
- UNSPSC code
- 15121902
Standards & Compliance
- Pressure Rating
- 5 bar
- Temperature Range
- -20 to +60 degC
- IP Rating
- IP 68
- Classification / Approval
- ATEX II 1G Ex ia IIC T6 Ga
- HS Code
- 8479.89
