Product Description

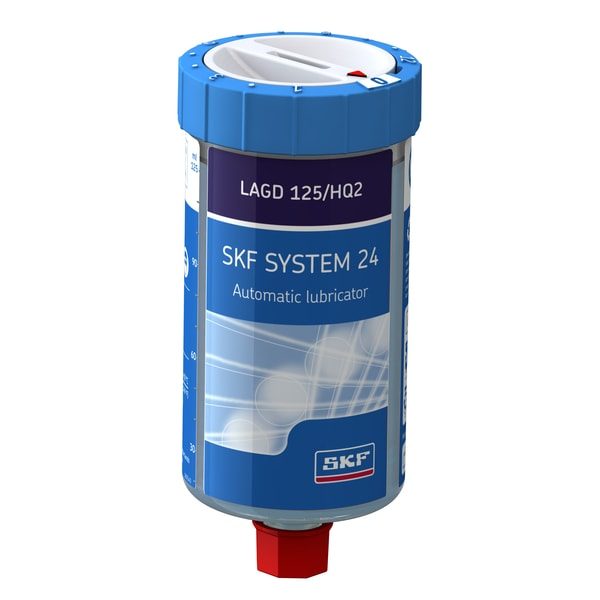

SKF SYSTEM 24 LAGD 125/HQ2 gas-driven single-point automatic lubricator pre-filled with 125 ml SKF LGHQ 2 (high-load, high-temperature, high-viscosity grease). Dispense rate adjustable 1-12 months; ATEX zone 0. SKF designation LAGD 125/HQ2.
Technical Specifications
- SKF SYSTEM 24 LAGD 125/HQ2 gas-driven single-point automatic lubricator, pre-filled with 125 ml of SKF LGHQ 2 (high-load, high-temperature, high-viscosity grease). Tool-free activation and time-setting; dispense rate adjustable from 1 to 12 months, stoppable or adjustable in service. Gas-cell driven with a transparent lubricant container for visual inspection of dispense rate. Grease capacity 125 ml; operating temperature range -20 to +60 degC (-5 to +140 degF); maximum operating pressure 5 bar; 1/4 inch RC outlet thread; ingress protection IP 68. Intrinsically safe, ATEX approved for zone 0
- II 1G Ex ia IIC T6 Ga / II 1D Ex ia IIIC T200 85degC Da (EC type-examination DEKRA 21ATEX0015 X). SKF order designation LAGD 125/HQ2.
- Outer diameter
- 54 mm
- Maximum pressure
- 5 bar
- Lubricant operating temperature range
- –30 to +160 °C
- Lubricant quantity
- 125 ml
- Nominal emptying time
- Adjustable, 1–12 months
- Recommended storage temperature
- 20 °C
- Recommended applications
- Electric motors;Industrial fans;Water pumps;Vertical shaft applications
- Series
- LAGD
- Version
- Lubricator
- Type
- Lubricator (LAGD)
- Drive mechanism
- Gas cell producing inert gas
- Biodegradable
- Grease
- Food Grade
- No
- Lubricant
- LGHQ 2
- Lubricant description
- Wide temperature range electric motor bearing grease
- NLGI consistency class
- 2
- Certifications
- NSF H1;Halal;Kosher
- Dispense rate range
- max. 4.2 ml/d
- Power source
- Integrated gascell
- Degree of protection (IP)
- IP 68
- Maximum feed line length
- 0.3 m
- Connecting thread
- R 1/4
- Shelf life
- 2 year
- Intrinsically safe approval
- II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
- Ambient temperature range
- -20–60 °C
- Relative humidity
- 0 to 90%, non-condensing
- Product lifecycle type
- Disposable
- Mounting orientation
- Any, head up preferred
- Country of Manufacturing (COM code)
- 12 - Finland
- Product net weight
- 0.19 kg
- eClass code
- 23-06-10-14
- UNSPSC code
- 15121902
Standards & Compliance
- Pressure Rating
- 5 bar
- Temperature Range
- -20 to +60 degC
- IP Rating
- IP 68
- Classification / Approval
- ATEX II 1G Ex ia IIC T6 Ga
- HS Code
- 8479.89
