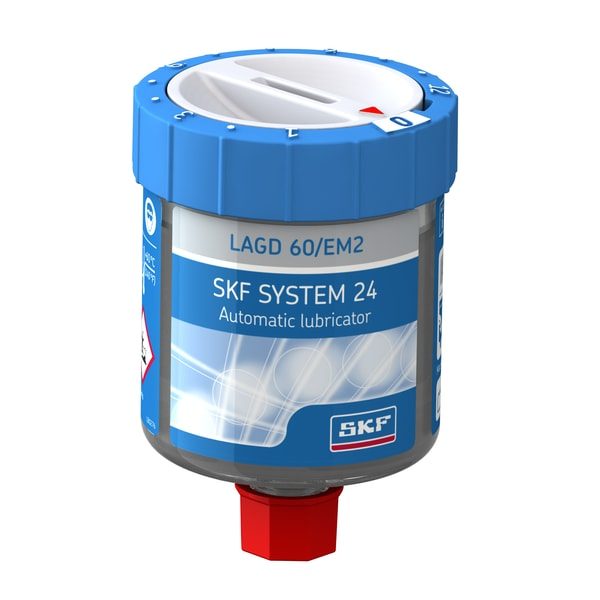

SKF System 24 LAGD 60/EM2 Single-Point Automatic Lubricator 60 ml LGEM 2

SKF SYSTEM 24 LAGD 60/EM2 gas-driven single-point automatic lubricator pre-filled with 60 ml SKF LGEM 2 (high-viscosity bearing grease with solid lubricants for heavy load). Dispense rate adjustable 1-12 months; ATEX zone 0. SKF designation LAGD 60/EM2.

SKF SYSTEM 24 LAGD 60/EM2 gas-driven single-point automatic lubricator, pre-filled with 60 ml of SKF LGEM 2 (high-viscosity bearing grease with solid lubricants for heavy load). Tool-free activation and time-setting; dispense rate adjustable from 1 to 12 months, stoppable or adjustable in service. Gas-cell driven with a transparent lubricant container for visual inspection of dispense rate. Grease capacity 60 ml; operating temperature range -20 to +60 degC (-5 to +140 degF); maximum operating pressure 5 bar; 1/4 inch RC outlet thread; ingress protection IP 68. Intrinsically safe, ATEX approved for zone 0

II 1G Ex ia IIC T6 Ga / II 1D Ex ia IIIC T200 85degC Da (EC type-examination DEKRA 21ATEX0015 X). SKF order designation LAGD 60/EM2.

Outer diameter

54 mm

Maximum pressure

5 bar

Lubricant operating temperature range

–20 to +120 °C

Lubricant quantity

60 ml

Nominal emptying time

Adjustable, 1–12 months

Recommended storage temperature

20 °C

Recommended applications

Rolling element bearings running at low speed and very high loads;Jaw crushers;Crane arms

Series

LAGD

Version

Lubricator

Type

Lubricator (LAGD)

Drive mechanism

Gas cell producing inert gas

Biodegradable

Grease

Food Grade

No

Lubricant

LGEM 2

Lubricant description

High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations

NLGI consistency class

2

Certifications

NSF H1;Halal;Kosher

Dispense rate range

max. 2 ml/d

Power source

Integrated gascell

Degree of protection (IP)

IP 68

Maximum feed line length

0.3 m

Connecting thread

R 1/4

Shelf life

2 year

Intrinsically safe approval

II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma

Ambient temperature range

-20–60 °C

Relative humidity

0 to 90%, non-condensing

Product lifecycle type

Disposable

Mounting orientation

Any, head up preferred

Country of Manufacturing (COM code)

12 - Finland

Product net weight

0.12 kg

eClass code

23-06-10-14

UNSPSC code

15121902

Pressure Rating

5 bar

Temperature Range

-20 to +60 degC

IP Rating

IP 68

Classification / Approval

ATEX II 1G Ex ia IIC T6 Ga

HS Code

8479.89
