Product Description

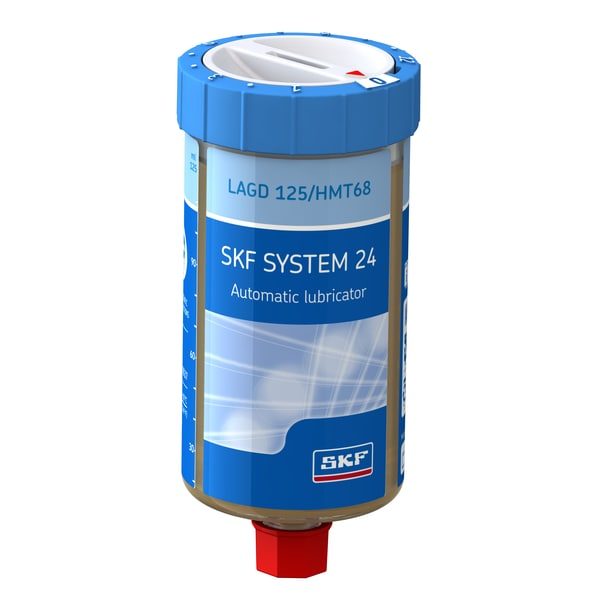

SKF SYSTEM 24 LAGD 125/HMT68 gas-driven single-point automatic lubricator pre-filled with 125 ml SKF LHMT 68 medium-temperature mineral chain oil (ISO VG 68). Dispense rate adjustable 1-12 months; ATEX zone 0; includes non-return valve. For conveyor, drive and lift chains operating at medium temperatures. SKF designation LAGD 125/HMT68.
Technical Specifications
- SKF SYSTEM 24 LAGD 125/HMT68 gas-driven single-point automatic lubricator, pre-filled with 125 ml of SKF LHMT 68 chain oil. Lubricant capacity 125 ml (4.2 US fl. oz); dispenser ambient temperature range -20 to +60 degC (-5 to +140 degF); maximum operating pressure 5 bar (75 psi) at start-up; gas-cell drive producing inert gas; R 1/4 outlet thread; maximum feed-line length with oil 1500 mm (59.1 in); ingress protection IP 68; weight approx 200 g (7.1 oz). Tool-free activation and time-setting; dispense rate adjustable 1 to 12 months, stoppable or adjustable in service; transparent lubricant container for visual inspection of dispense rate; includes non-return valve for oil. Intrinsically safe, ATEX zone 0
- II 1G Ex ia IIC T6 Ga / II 1D Ex ia IIIC T200 85degC Da (EC type-examination DEKRA 21ATEX0015 X). Fill: SKF LHMT 68 medium-temperature mineral chain oil; ISO VG 68; base oil viscosity approx 68 mm2/s at 40 degC and approx 9 mm2/s at 100 degC (ISO 3104); density 0.88 g/cm3 at 20 degC (DIN 51757); oil operating temperature range -20 to +100 degC (-4 to +212 degF); flash point >200 degC (DIN ISO 2592); pour point <-30 degC (DIN ISO 3016); steel corrosion DIN ISO 7120-A pass, copper corrosion DIN 51811 max 1; silicone-free; oil shelf life 5 years. SKF order designation LAGD 125/HMT68.
- Outer diameter
- 54 mm
- Maximum pressure
- 5 bar
- Lubricant operating temperature range
- –20 to +100 °C
- Lubricant quantity
- 125 ml
- Nominal emptying time
- Adjustable, 1–12 months
- Recommended storage temperature
- 20 °C
- Recommended applications
- Conveyor, Drive and Lift chains operating at medium temperatures;Ovens
- Series
- LAGD
- Version
- Lubricator
- Type
- Lubricator (LAGD)
- Drive mechanism
- Gas cell producing inert gas
- Biodegradable
- Oil
- Food Grade
- No
- Lubricant
- LHMT 68
- Lubricant description
- High-performance mineral chain oil
- Certifications
- NSF H1;Halal;Kosher
- Dispense rate range
- max. 4.2 ml/d
- Power source
- Integrated gascell
- Special features
- Non-return valve included
- Degree of protection (IP)
- IP 68
- Maximum feed line length
- 1.5 m
- Connecting thread
- R 1/4
- Shelf life
- 2 year
- Intrinsically safe approval
- II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
- Ambient temperature range
- -20–60 °C
- Relative humidity
- 0 to 90%, non-condensing
- Product lifecycle type
- Disposable
- Mounting orientation
- Any, head up preferred
- Country of Manufacturing (COM code)
- 12 - Finland
- Product net weight
- 0.19 kg
- eClass code
- 23-06-10-14
- UNSPSC code
- 15121902
Standards & Compliance
- Pressure Rating
- 5 bar
- Temperature Range
- -20 to +100 degC (oil)
- IP Rating
- IP 68
- Classification / Approval
- ATEX II 1G Ex ia IIC T6 Ga
- HS Code
- 8479.89
