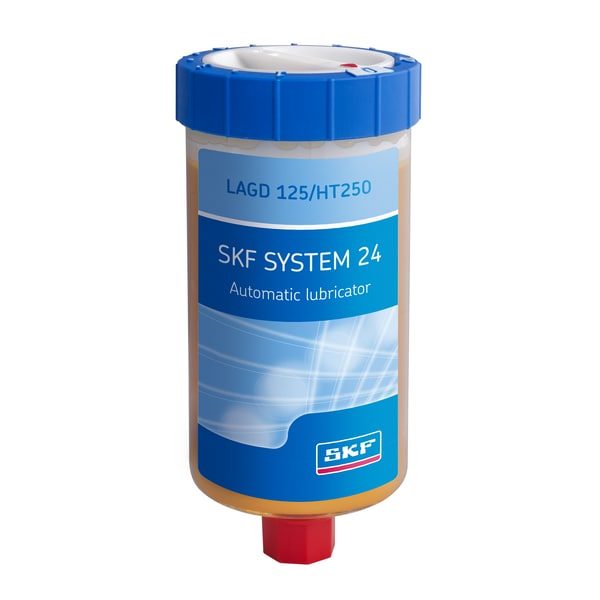

SKF System 24 LAGD 125/HT250 Single-Point Automatic Lubricator 125 ml LHHT 250

SKF SYSTEM 24 LAGD 125/HT250 gas-driven single-point automatic lubricator pre-filled with 125 ml SKF LHHT 250 high-temperature synthetic (ester) chain oil. Dispense rate adjustable 1-12 months; ATEX zone 0; includes non-return valve. For chains operating at high temperatures and high loads (ovens, kilns, high-temperature conveyors). SKF designation LAGD 125/HT250.

SKF SYSTEM 24 LAGD 125/HT250 gas-driven single-point automatic lubricator, pre-filled with 125 ml of SKF LHHT 250 chain oil. Lubricant capacity 125 ml (4.2 US fl. oz); dispenser ambient temperature range -20 to +60 degC (-5 to +140 degF); maximum operating pressure 5 bar (75 psi) at start-up; gas-cell drive producing inert gas; R 1/4 outlet thread; maximum feed-line length with oil 1500 mm (59.1 in); ingress protection IP 68; weight approx 200 g (7.1 oz). Tool-free activation and time-setting; dispense rate adjustable 1 to 12 months, stoppable or adjustable in service; transparent lubricant container for visual inspection of dispense rate; includes non-return valve for oil. Intrinsically safe, ATEX zone 0

II 1G Ex ia IIC T6 Ga / II 1D Ex ia IIIC T200 85degC Da (EC type-examination DEKRA 21ATEX0015 X). Fill: SKF LHHT 250 high-temperature synthetic (ester) chain oil; base oil viscosity approx 250 mm2/s at 40 degC and approx 24 mm2/s at 100 degC (ISO 3104); density 0.94 g/cm3 at 20 degC (DIN 51757); oil operating temperature up to 250 degC (482 degF); flash point >250 degC (DIN ISO 2592); pour point -40 degC (DIN ISO 3016); forms minimal lacquer/residue at high temperature; steel corrosion pass, copper corrosion DIN 51811 max 1; silicone-free; oil shelf life 5 years. SKF order designation LAGD 125/HT250.

Outer diameter

54 mm

Maximum pressure

5 bar

Lubricant quantity

125 ml

Nominal emptying time

Adjustable, 1–12 months

Recommended storage temperature

20 °C

Recommended applications

Chains at high temperatures and high loads

Series

LAGD

Version

Lubricator

Type

Lubricator (LAGD)

Drive mechanism

Gas cell producing inert gas

Biodegradable

Oil

Food Grade

No

Lubricant

LHHT 250

Lubricant description

High-performance and high temperature synthetic chain oil

Certifications

NSF H1;Halal;Kosher

Dispense rate range

max. 4.2 ml/d

Power source

Integrated gascell

Degree of protection (IP)

IP 68

Maximum feed line length

0.3 m

Connecting thread

R 1/4

Shelf life

2 year

Intrinsically safe approval

II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma

Ambient temperature range

-20–60 °C

Relative humidity

0 to 90%, non-condensing

Product lifecycle type

Disposable

Mounting orientation

Any, head up preferred

Country of Manufacturing (COM code)

12 - Finland

Product net weight

0.19 kg

eClass code

23-06-10-14

UNSPSC code

15121902

Pressure Rating

5 bar

Temperature Range

up to +250 degC (oil)

IP Rating

IP 68

Classification / Approval

ATEX II 1G Ex ia IIC T6 Ga

HS Code

8479.89
