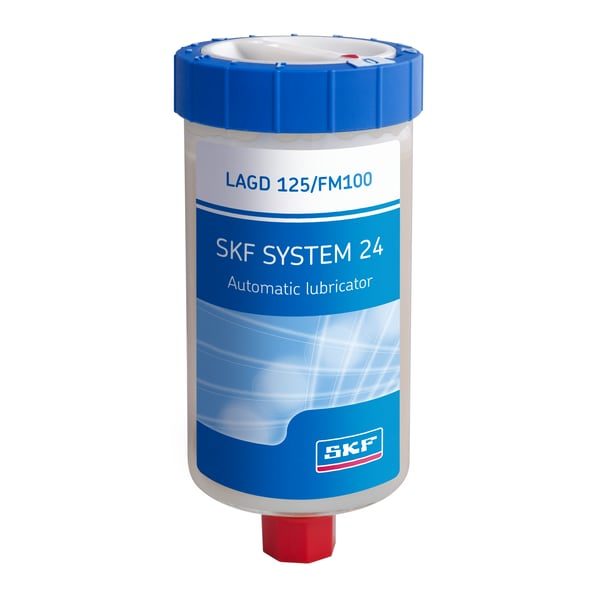

SKF System 24 LAGD 125/FM100 Single-Point Automatic Lubricator 125 ml LFFM 100

SKF SYSTEM 24 LAGD 125/FM100 gas-driven single-point automatic lubricator pre-filled with 125 ml SKF LFFM 100 general-purpose food-grade synthetic (PAO) chain oil (ISO VG 100, NSF H1 registered). Dispense rate adjustable 1-12 months; ATEX zone 0; includes non-return valve. For chains in food-processing and pharmaceutical lines, including moist and low-temperature environments. SKF designation LAGD 125/FM100.

SKF SYSTEM 24 LAGD 125/FM100 gas-driven single-point automatic lubricator, pre-filled with 125 ml of SKF LFFM 100 chain oil. Lubricant capacity 125 ml (4.2 US fl. oz); dispenser ambient temperature range -20 to +60 degC (-5 to +140 degF); maximum operating pressure 5 bar (75 psi) at start-up; gas-cell drive producing inert gas; R 1/4 outlet thread; maximum feed-line length with oil 1500 mm (59.1 in); ingress protection IP 68; weight approx 200 g (7.1 oz). Tool-free activation and time-setting; dispense rate adjustable 1 to 12 months, stoppable or adjustable in service; transparent lubricant container for visual inspection of dispense rate; includes non-return valve for oil. Intrinsically safe, ATEX zone 0

II 1G Ex ia IIC T6 Ga / II 1D Ex ia IIIC T200 85degC Da (EC type-examination DEKRA 21ATEX0015 X). Fill: SKF LFFM 100 general-purpose food-grade synthetic (PAO) chain oil; ISO VG 100; base oil viscosity 100 mm2/s at 40 degC and approx 15 mm2/s at 100 degC (ISO 3104); density 0.84 g/cm3 at 20 degC (DIN 51757); oil operating temperature range -30 to +130 degC (-22 to +266 degF); flash point >200 degC (DIN ISO 2592); pour point -45 degC (DIN ISO 3016); four-ball wear scar 0.45 mm (DIN 51350/5, 1h/400N) and weld load 1600 N (DIN 51350/4); NSF H1 registered (reg. no. 162871), NSF ISO 21469, Halal and Kosher certified; oil shelf life 2 years. SKF order designation LAGD 125/FM100.

Outer diameter

54 mm

Maximum pressure

5 bar

Lubricant operating temperature range

–30 to +130 °C

Lubricant quantity

125 ml

Nominal emptying time

Adjustable, 1–12 months

Recommended storage temperature

20 °C

Recommended applications

General chain lubrication as in confectionery industries and fruit and vegetable processing

Series

LAGD

Version

Lubricator

Type

Lubricator (LAGD)

Drive mechanism

Gas cell producing inert gas

Biodegradable

Oil

Food Grade

Yes

Lubricant

LFFM 100

Lubricant description

High-performance synthetic food grade chain oil

Certifications

NSF H1;Halal;Kosher

Dispense rate range

max. 4.2 ml/d

Power source

Integrated gascell

Special features

Non-return valve included

Degree of protection (IP)

IP 68

Maximum feed line length

1.5 m

Connecting thread

R 1/4

Shelf life

2 year

Intrinsically safe approval

II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma

Ambient temperature range

-20–60 °C

Relative humidity

0 to 90%, non-condensing

Product lifecycle type

Disposable

Mounting orientation

Any, head up preferred

Country of Manufacturing (COM code)

12 - Finland

Product net weight

0.18 kg

eClass code

23-06-10-14

UNSPSC code

15121902

Pressure Rating

5 bar

Temperature Range

-30 to +130 degC (oil)

IP Rating

IP 68

Classification / Approval

ATEX II 1G Ex ia IIC T6 Ga

HS Code

8479.89
