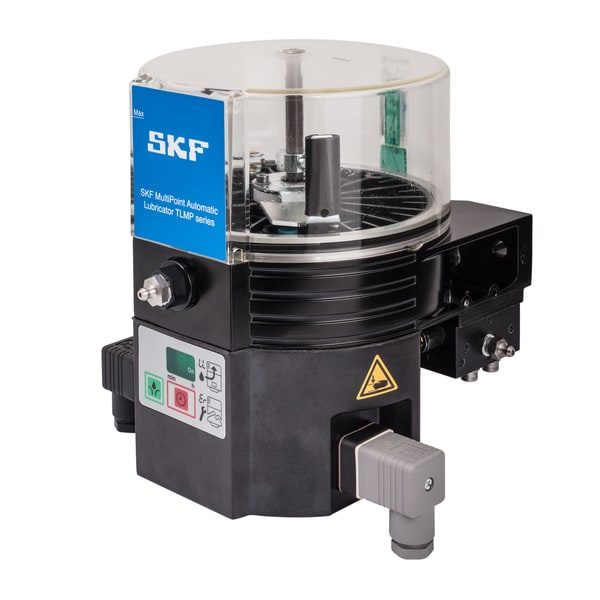

SKF TLMP 1008 MultiPoint Automatic Lubricator, 8-Outlet, 120 V AC 60 Hz

SKF MultiPoint Automatic Lubricator TLMP 1008/120V — 8-outlet centralised multi-point lubrication kit with approximately 1-litre grease reservoir, keypad and LED programming, low-level and malfunction alarms, and divider block. Supply voltage 120 V AC 60 Hz (+/- 10%). Supplied complete with pump unit, nylon tubing and connectors. SKF ordering designation TLMP 1008/120V.

SKF MultiPoint Automatic Lubricator TLMP 1008, a complete multi-point lubrication kit (pump unit, tubing and connectors) supplying up to 8 lubrication outlets via a divider block. Reservoir capacity approximately 1 litre; useable reservoir volume approximately 0.5 to 0.9 litres (17 to 30 US fl. oz); stirring paddle to prevent grease separation. Suitable grease consistency NLGI 2 or 3. Dispense rate 0.1 to 40 cm3/day per outlet; pump element output approximately 0.2 cm3 per cycle (approximately 1.7 cm3 per minute). Pump element maximum operating pressure 120 bar (1 740 psi). Maximum distance from lubricator to lubrication point 5 m (16 ft). Lubrication tubes supplied

20 m (65 ft), 6 x 1.5 mm nylon. Ambient temperature range -25 to +70 degC (-13 to +160 degF). Ingress protection IP 67; vibration resistant. Filling via hydraulic lubrication fitting R 1/4. Installation position vertical (maximum deviation +/- 5 deg). Power-supply connector EN 175301-803 / DIN 43650 form A. Keypad with LED display for programming; low-level and malfunction alarms with optional remote notification; machine steering by removing power. Total weight approximately 6 kg (13 lb). Supply voltage: 120 V AC 60 Hz (+/- 10%). SKF ordering designation TLMP 1008/120V.

Voltage

120 V

Frequency

60 Hz

Country of Manufacturing (COM code)

31 - Czech Republic

Product net weight

6.29 kg

eClass code

23-06-10-14

UNSPSC code

15121902

Type

Multipoint lubricator

Recommended applications

Various industrial applications with mutiple lubrication points

Drive mechanism

Electro mechanical (machine steered)

Lubrication outlets

1-8

Suitable grease consistency

NLGI 2, 3

Maximum pressure (MPa)

20.5 MPa

Dispense rate range

0.1–40 ml/d

Lowest dispense setting

0.1 ml/d

Highest dispense setting

40 ml/d

Maximum feed line length

5000 mm

Reservoir volume

1000 ml

Power source

Electric (external)

Amperage (max)

1 A

External steering

Yes

Alarms

Yes, blocked feed lines, empty reservoir. Internal and external

Mounting position

Vertical

Degree of protection (IP)

IP 67

Housing material

Metal

Electric connection

DIN 43650/A (EN 175301-803)

Ambient temperature range

-25–70 °C

Dimensions (W x L x H)

237 x 214 x 231 mm

Content

1x Pump TLMP 1008/120V;Set of fitting material;2x Electrical connectors;1x 20m plastic pipe nylon 6 x 1.5 mm; 8x straight tube connectors;8x tube connector plugs;7x outlet closure plugs

Pressure Rating

120 bar

Temperature Range

-25 to +70 degC

IP Rating

IP 67

HS Code

8479.89
