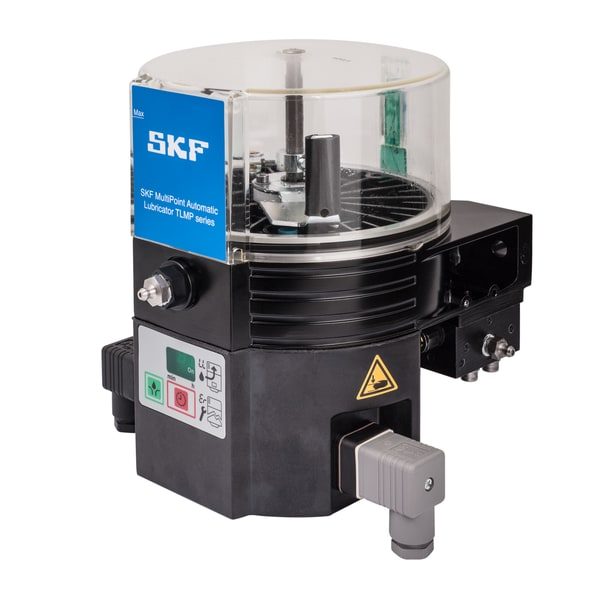

SKF TLMP 1018 MultiPoint Automatic Lubricator, 18-Outlet, 24 V DC

SKF MultiPoint Automatic Lubricator TLMP 1018/24DC — 18-outlet centralised multi-point lubrication kit with approximately 1-litre grease reservoir, keypad and LED programming, low-level and malfunction alarms, and divider block. Supply voltage 24 V DC (-20 / +30%). Supplied complete with pump unit, nylon tubing and connectors. SKF ordering designation TLMP 1018/24DC.

SKF MultiPoint Automatic Lubricator TLMP 1018, a complete multi-point lubrication kit (pump unit, tubing and connectors) supplying up to 18 lubrication outlets via a divider block. Reservoir capacity approximately 1 litre; useable reservoir volume approximately 0.5 to 0.9 litres (17 to 30 US fl. oz); stirring paddle to prevent grease separation. Suitable grease consistency NLGI 2 or 3. Dispense rate 0.1 to 40 cm3/day per outlet; pump element output approximately 0.2 cm3 per cycle (approximately 1.7 cm3 per minute). Pump element maximum operating pressure 120 bar (1 740 psi). Maximum distance from lubricator to lubrication point 5 m (16 ft). Lubrication tubes supplied

50 m (164 ft), 6 x 1.5 mm nylon. Ambient temperature range -25 to +70 degC (-13 to +160 degF). Ingress protection IP 67; vibration resistant. Filling via hydraulic lubrication fitting R 1/4. Installation position vertical (maximum deviation +/- 5 deg). Power-supply connector EN 175301-803 / DIN 43650 form A. Keypad with LED display for programming; low-level and malfunction alarms with optional remote notification; machine steering by removing power. Total weight approximately 6 kg (13 lb). Supply voltage: 24 V DC (-20 / +30%). SKF ordering designation TLMP 1018/24DC.

Voltage

24 V

Country of Manufacturing (COM code)

31 - Czech Republic

Product net weight

7.8 kg

eClass code

23-06-10-14

UNSPSC code

15121902

Type

Multipoint lubricator

Recommended applications

Agricultural and Off road machines as well as various industrial applications with mutiple lubrication points

Drive mechanism

Electro mechanical (machine steered)

Lubrication outlets

1-18

Suitable grease consistency

NLGI 2, 3

Maximum pressure (MPa)

20.5 MPa

Dispense rate range

0.1–40 ml/d

Lowest dispense setting

0.1 ml/d

Highest dispense setting

40 ml/d

Maximum feed line length

5000 mm

Reservoir volume

1000 ml

Power source

Electric (external)

Amperage (max)

1 A

External steering

Yes

Alarms

Yes, blocked feed lines, empty reservoir. Internal and external

Mounting position

Vertical

Degree of protection (IP)

IP 67

Housing material

Metal

Electric connection

DIN 43650/A (EN 175301-803)

Ambient temperature range

-25–70 °C

Dimensions (W x L x H)

237 x 214 x 231 mm

Content

1x Pump TLMP 1018/24DC;Set of fitting material;2x Electrical connectors;1x 50m plastic pipe nylon 6 x 1.5 mm; 18x straight tube connectors;18x tube connector plugs;17x outlet closure plugs

Pressure Rating

120 bar

Temperature Range

-25 to +70 degC

IP Rating

IP 67

HS Code

8479.89
