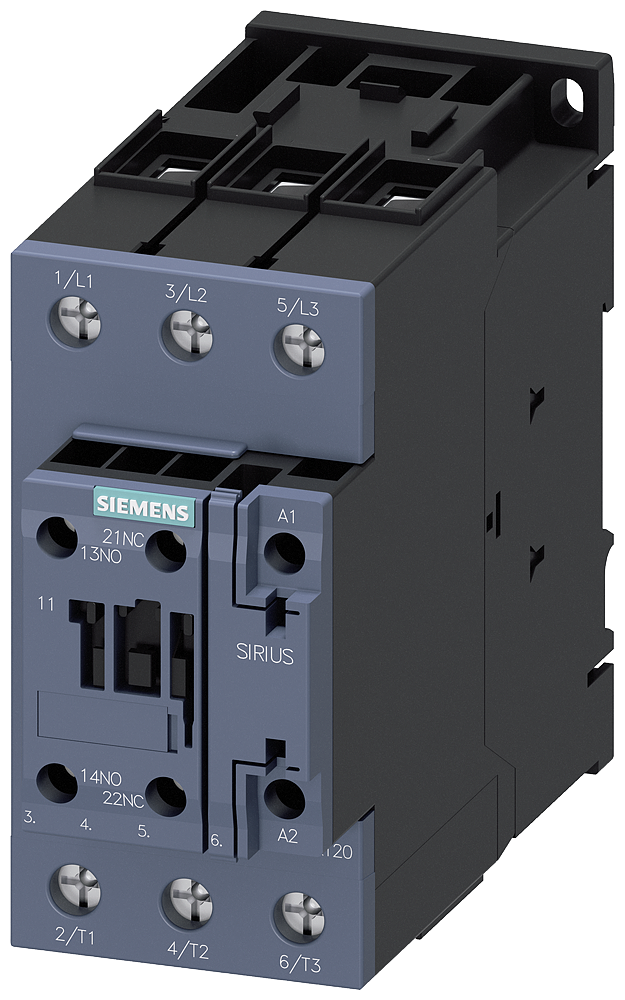

Siemens SIRIUS Contactor, S2, 65A 1NO+1NC, 230V AC, 3-Pole 3RT2037-1AP00
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2037-1AP00 SIRIUS Contactor, S2, 65A 1NO+1NC, 230V AC, 3-pole.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2037-1AP00
- EAN / GTIN
- 4011209940536
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V
- Number of poles
- 3P
- Contact configuration
- 1 NO + 1 NC
- Width
- 55 mm
- Height
- 114 mm
- Depth
- 130 mm
- Rated operation power at AC-3, 400 V
- 30 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 65 A
- Rated operation current Ie at AC-1, 400 V
- 80 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 55 A
- Rated operation power at AC-4, 400 V
- 30 kW
- Rated operation power NEMA
- 50 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209940536
- SAP 1000668982
- Code 8365797
Product Documentation
