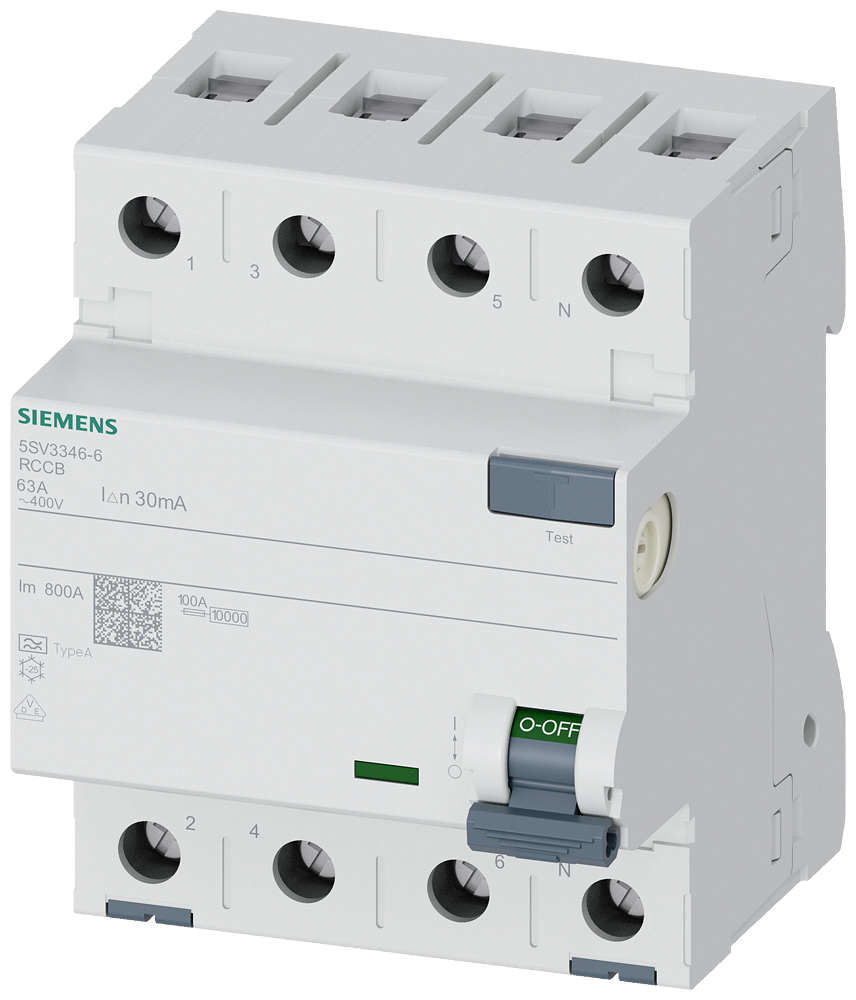

Siemens Residual current circuit breaker, 4-Pole, type A, In: 63 A, 30 mA, Un AC: 400 V

Siemens 5SV3346-6. Residual current circuit breaker type A, instantaneous, 4/63 30MA, tightening torque 2,5 Nm.

Manufacturer part number (MPN)

5SV3346-6

EAN / GTIN

4001869427782

HS code

8536.90

Sales unit

pcs

Mounting method

DIN rail

Voltage type

AC

Built-in depth

70 mm

Rated current

63 A

Rated voltage

400 V

Rated insulation voltage Ui

2000 V

Number of poles

4

Rated fault current

30 A

Leakage current type

A

Selective protection

No

Short-circuit breaking capacity (Icw)

10 kA

Surge current capacity

1 kA

Pollution degree

2

Width in number of modular spacings

4

Short-time delayed tripping

No

RAL-number (similar)

7035

Explosion-proof

No

Power loss

3.9 W

Frequency

50 Hz

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

0.75–35 mm²

Connectable conductor cross section multi-wired

0.75–35 mm²

With interlocking device

Yes

Ambient temperature during operating

-25–45 °C

Additional equipment possible

Yes

Device width

72 mm

Device height

90 mm

Device depth

70 mm

Rated impulse withstand voltage Uimp

6000 kV

Country of origin

Germany

HS Code

8536.90

• EAN 4001869427782
• SAP 1000502961
• Code 8330593
