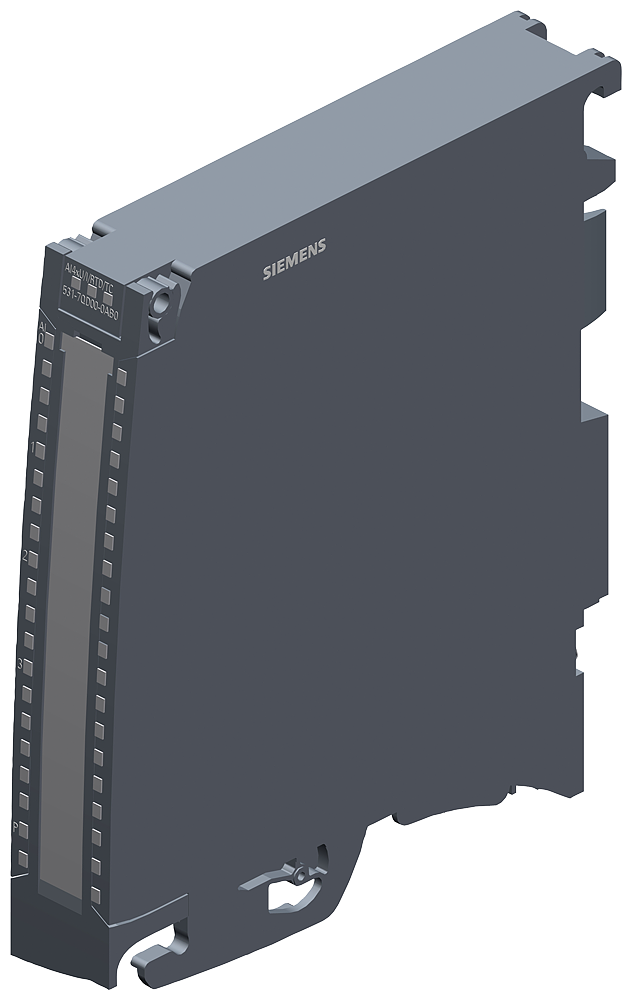

Siemens SIMATIC S7 automation module 6ES7531-7QD00-0AB0

Siemens 6ES7531-7QD00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC S7-1500, Analog input module AI 4 X U/In/RTD/TC, 16-bits resolution, accuracy 0.3 %.

Manufacturer part number (MPN)

6ES7531-7QD00-0AB0

EAN / GTIN

4047623403425

Sales unit

pcs

Product family

SM 531 analog input modules

UPC

887621837037

Customs commodity code (HS)

85389091

Net weight

0.384 kg

Country of origin

Germany

Product type designation

AI 4xU/I/RTD/TC ST

HW functional status

from FS01

Firmware version

V1.0.0

FW update possible

Yes

I&M data

Yes; I&M0 to I&M3

STEP 7 TIA Portal configurable/integrated from version

V13 / V13.0.2

STEP 7 configurable/integrated from version

V5.5 SP3

PROFIBUS from GSD version/GSD revision

V1.0 / V5.1

PROFINET from GSD version/GSD revision

V2.3

MSI

Yes

Reparameterization possible in RUN

Yes

Calibration possible in RUN

Yes

Supply voltage rated value (DC)

24 V

Supply voltage permissible range, lower limit (DC)

19.2 V

Supply voltage permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

165 mA; with 19.2 V supply

Encoder supply output current, max.

20 mA; Max. 47 mA per channel for a duration < 10 s

Power consumption from the backplane bus

0.7 W

Power loss, typ.

2.3 W

Address space, inputs

8 byte

Number of analog inputs

4

For current measurement

4

For voltage measurement

4

For resistance/resistance thermometer measurement

2

For thermocouple measurement

4

Permissible input voltage for voltage input (destruction limit), max.

28.8 V

Permissible input current for current input (destruction limit), max.

40 mA

Constant measurement current for resistance-type transmitter, typ.

150/300/600 Ohm, Pt100/Pt200/Ni100: 1.25 mA; 6000 Ohm, Pt500/Pt1000/Ni1000/LG-Ni1000: 0.625 mA; PTC: 0.472 mA

Technical unit for temperature measurement adjustable

Yes; °C/°F/K

Cable length shielded, max.

800 m for U/I, 200 m for R/RTD, 50 m for TC

Measurement principle

integrating

Resolution with overrange (bit including sign), max.

16 bit

Integration time (ms)

2.5 / 16.67 / 20 / 100 ms

Basic conversion time, including integration time (ms)

9 / 23 / 27 / 107 ms

Interference voltage suppression for interference frequency f1 in Hz

400 / 60 / 50 / 10

Number of smoothing levels

4

Linearity error (relative to input range), (+/-)

0.02 %

Temperature error (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, max.

-80 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.02 %

Temperature error of internal compensation

±6 °C

Operational error limit, voltage, relative to input range, (+/-)

0.3 %

Basic error limit at 25 °C, voltage, relative to input range, (+/-)

0.1 %

Common mode voltage, max.

10 V

Common mode interference, min.

60 dB

Diagnostics function

Yes

Diagnostic alarm

Yes

Limit value alarm

Yes; two upper and two lower limit values in each case

Wire break diagnostics

Yes; for 1 to 5 V, 4 to 20 mA, TC, R, and RTD

Potential separation between the channels and backplane bus

Yes

Permissible potential difference between the inputs (UCM)

20 V DC

Isolation tested with

707 V DC (type test)

Ambient temperature, horizontal installation, min.

-25 °C; From FS03

Ambient temperature, horizontal installation, max.

60 °C

Ambient temperature, vertical installation, max.

40 °C

Installation altitude above sea level, max.

5000 m

Width

25 mm

Height

147 mm

Depth

129 mm

Weight, approx.

210 g

Note

Supplied incl. 40-pole push-in front connectors

Number of analogue inputs

4

Analogue outputs configurable

No

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

HS Code

8538.90
