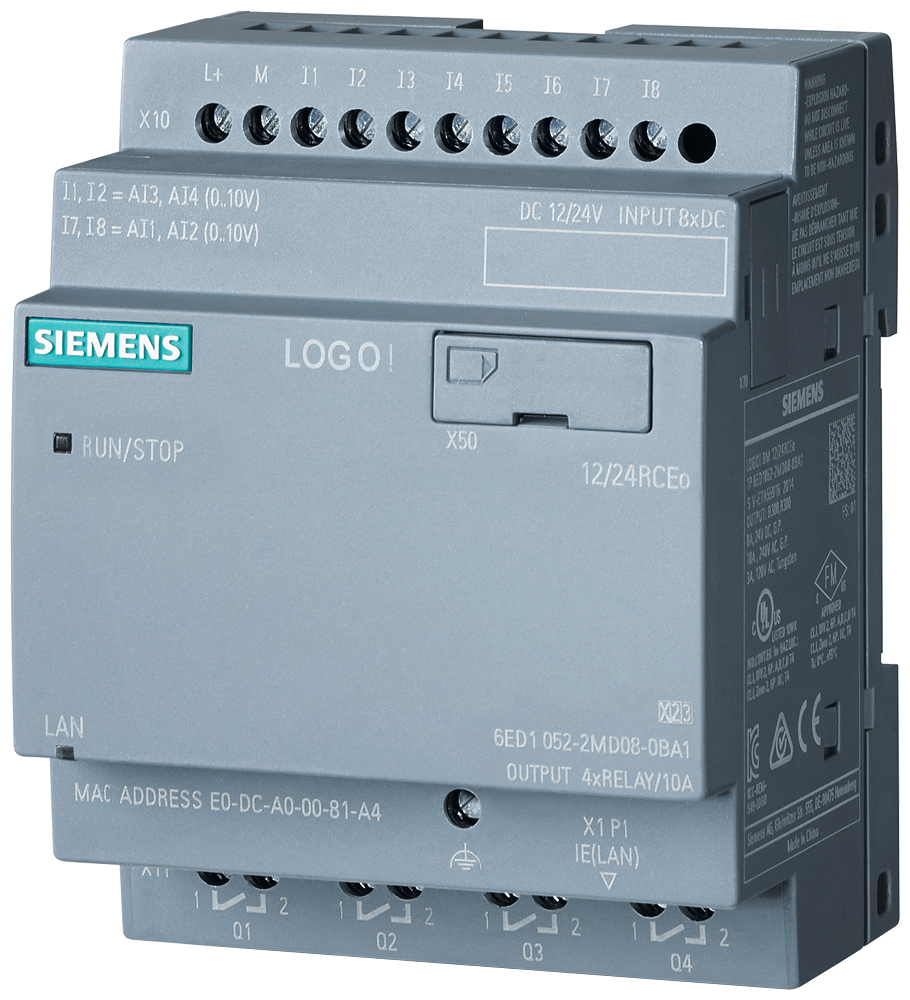

Siemens LOGO! logic module 6ED1052-2MD08-0BA2

Siemens 6ED1052-2MD08-0BA2 — LOGO! logic module. Compact micro-controller for small automation and building-services tasks. LOGO!12/24RCEO, 8DI(4AI)/4DO,400 Blocks.

Manufacturer part number (MPN)

6ED1052-2MD08-0BA2

EAN / GTIN

4034106034481

Sales unit

pcs

Mounting

on 35 mm DIN rail, 4 spacing units wide

Rated value (DC) — 12 V DC

Yes

Rated value (DC) — 24 V DC

Yes

Permissible range, lower limit (DC)

10.8 V

Permissible range, upper limit (DC)

28.8 V

Time switching clocks — Number

400; Max. 400, function-specific

Time switching clocks — Power reserve

480 h

Number of digital inputs

8; Of which 4 can be used in analog mode (0 to 10 V)

Number of digital outputs

4; Relays

Short-circuit protection

No; external fusing necessary

Output current for signal "1" permissible range for 0 to 55 °C, max.

10 A

Relay outputs switching capacity of contacts with inductive load, max.

3 A

Relay outputs switching capacity of contacts with resistive load, max.

10 A

CE mark

Yes

UL approval

Yes

FM approval

Yes

Developed in accordance with IEC 61131

Yes

Marine approval

Yes

Ambient temperature during operation min.

-20 °C; No condensation

Ambient temperature during operation max.

55 °C

Ambient temperature during storage/transportation min.

-40 °C

Ambient temperature during storage/transportation max.

70 °C

Dimensions — Width

71.5 mm; 4 modular widths (MW)

Dimensions — Height

90 mm

Dimensions — Depth

58 mm

Supporting protocol for EtherCAT

No

Supply voltage DC

10.8–28.8 V

Voltage type (supply voltage)

DC

Switching current

10 A

Number of analogue inputs

4

With relay output

Yes

Number of HW-interfaces industrial Ethernet

1

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

Yes

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

With display

No

Degree of protection (IP)

IP20

Basic device

Yes

Expandable

Yes

Expansion device

No

With time switch clock

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

Yes

Rack-assembly possible

No

Suitable for safety functions

No

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

71.5 mm

Height

90 mm

Depth

58 mm

Country of origin

China

HS Code

8504.40

• EAN 4034106034481
• SAP 1200734886
• Code 83871110
