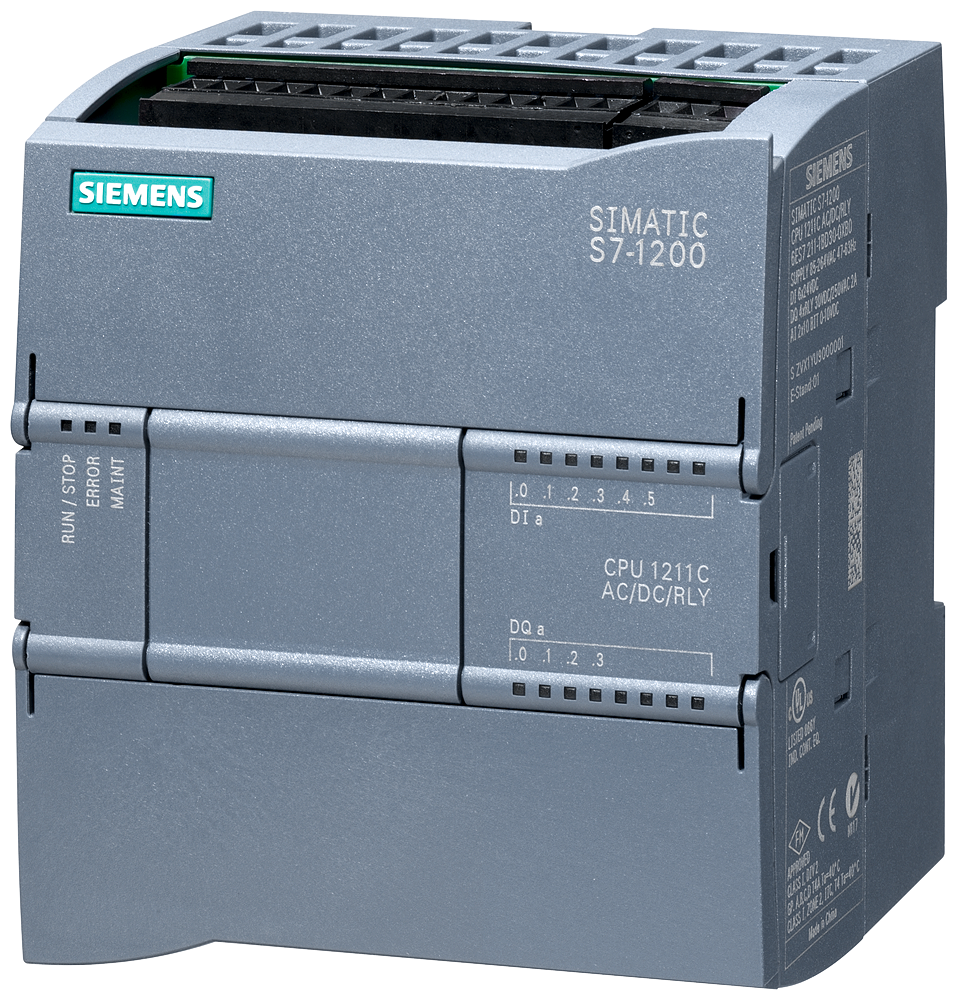

Siemens SIMATIC S7-1200 CPU 1211C, AC/DC/Relay, 6DI/4DO/2AI

Siemens 6ES7211-1BE40-0XB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. Simatic S7-1200, CPU 1211C, Compact-CPU, 6 DI 24V DC; 4 DO Relay 0,5A; 2 AI 0 - 10V DC.

Manufacturer part number (MPN)

6ES7211-1BE40-0XB0

HS code

8536.90

Sales unit

pcs

Product type designation

CPU 1211C AC/DC/relay

Firmware version

V4.7

Permissible range, lower limit (AC)

85 V

Permissible range, upper limit (AC)

264 V

Line frequency — permissible range, lower limit

47 Hz

Line frequency — permissible range, upper limit

63 Hz

Current consumption (rated value)

60 mA at 120 V AC; 30 mA at 240 V AC

Current consumption, max.

180 mA at 120 V AC; 90 mA at 240 V AC

Inrush current, max.

20 A; at 264 V

I²t

0.8 A²·s

For backplane bus (5 V DC), max.

750 mA; Max. 5 V DC for CM

24 V encoder supply — 24 V

20.4 to 28.8V

Power loss, typ.

10 W

Work memory — integrated

75 kbyte

Load memory — integrated

1 Mbyte

For bit operations, typ.

0.08 µs; / instruction

For word operations, typ.

1.7 µs; / instruction

For floating point arithmetic, typ.

2.3 µs; / instruction

Number of blocks (total)

DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used

Retentive data area (incl. timers, counters, flags), max.

14 kbyte

Flag — Size, max.

4 kbyte; Size of bit memory address area

Local data — per priority class, max.

16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB

Process image — Inputs, adjustable

1 kbyte

Process image — Outputs, adjustable

1 kbyte

Number of modules per system, max.

3 communication modules, 1 signal board

Input voltage — Rated value (DC)

24 V

Input voltage — for signal "0"

5 V DC at 1 mA

Input voltage — for signal "1"

15 V DC at 2.5 mA

Input current — for signal "1", typ.

4 mA; nominal

For standard inputs — parameterizable

0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms

For standard inputs — at "0" to "1", min.

0.2 ms

For standard inputs — at "0" to "1", max.

12.8 ms

Cable length — shielded, max.

500 m; 50 m for technological functions

Cable length — unshielded, max.

300 m; for technological functions: No

Switching capacity of the outputs — with resistive load, max.

2 A

Switching capacity of the outputs — on lamp load, max.

30 W with DC, 200 W with AC

Output delay with resistive load — "0" to "1", max.

10 ms; max.

Output delay with resistive load — "1" to "0", max.

10 ms; max.

Number of connections — overall

PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; To...

Traces — Memory size per trace, max.

512 kbyte

Counter — Counting frequency, max.

100 kHz

Potential separation digital inputs — Potential separation digital inputs

500 V AC for 1 minute

Interference immunity against discharge of static electricity — Test voltage at air discharge

8 kV

Interference immunity against discharge of static electricity — Test voltage at contact discharge

6 kV

Free fall — Fall height, max.

0.3 m; five times, in product package

Ambient temperature during operation — min.

-20 °C

Ambient temperature during operation — max.

60 °C

Ambient temperature during operation — horizontal installation, min.

-20 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-20 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Ambient temperature during storage/transportation — min.

-40 °C

Ambient temperature during storage/transportation — max.

70 °C

Altitude during operation relating to sea level — Installation altitude, min.

-1 000 m

Altitude during operation relating to sea level — Installation altitude, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Relative humidity — Operation, max.

95 %; no condensation

Dimensions — Width

90 mm

Dimensions — Height

100 mm

Dimensions — Depth

75 mm

Weight, approx.

420 g

EAN

4047623402695

HS Code

8536.90
