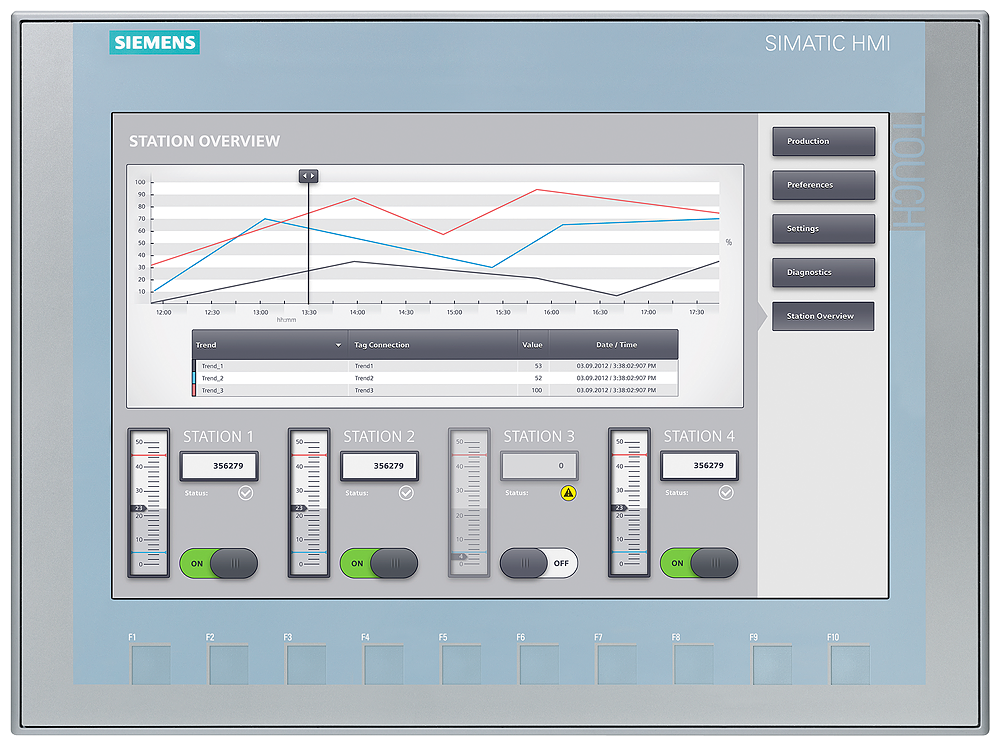

Siemens Panel Basic 2ND KTP1200 Touch and taster 12" Profinet

Siemens 6AV2123-2MB03-0AX0 Panel Basic 2nd KTP1200 Touch and taster 12" Profinet.

Manufacturer part number (MPN)

6AV2123-2MB03-0AX0

EAN / GTIN

4034106029241

Sales unit

pcs

Product type designation

KTP1200 Basic color PN

Design of display

TFT widescreen display, LED backlighting

Screen diagonal

12 in

Display width

261.1 mm

Display height

163.2 mm

Number of colors

65 536

Horizontal image resolution

1 280 pixel

Vertical image resolution

800 pixel

MTBF backlighting (at 25 °C)

20 000 h

Backlight dimmable

Yes

Number of function keys

10

Design as touch screen

Yes; Analog-resistive

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

510 mA

Active power input, typ.

12.2 W

Processor type

ARM

Memory available for user data

10 Mbyte

Number of industrial Ethernet interfaces

1

Number of USB interfaces

1; Up to 16 GB

PROFINET

Yes

EtherNet/IP

Yes

MODBUS

Yes; Modicon (MODBUS TCP/IP)

IP (at the front)

IP65

IP (rear)

IP20

Enclosure Type 4 at the front

Yes

Enclosure Type 4x at the front

Yes

CE mark

Yes

CULus

Yes

American Bureau of Shipping (ABS)

Yes

It Norske Veritas (DNV)

Yes

Lloyds Register of Shipping (LRS)

Yes

Ambient temperature for vertical installation, min.

0 °C

Ambient temperature for vertical installation, max.

50 °C

Ambient temperature during storage/transportation, min.

-20 °C

Ambient temperature during storage/transportation, max.

60 °C

Relative humidity operation, max.

90 %; no condensation

Configuration software

WinCC Basic (TIA Portal)

Number of online/runtime languages

10

Number of variables per device

800

Number of configurable images

250

Number of recipes

50

Enclosure material (front)

plastic

Width of the housing front

330 mm

Height of housing front

245 mm

Mounting cutout, width

310 mm

Mounting cutout, height

221 mm

Mounting depth

54.9 mm

Weight (without packaging)

1 710 g

Power consumption

12.2 W

Supporting protocol for EtherCAT

No

Supply voltage DC

19.2–28.8 V

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces USB

1

With SW interfaces

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

65536

Number of pixels, horizontal

1280

Number of pixels, vertical

800

Usable project memory/user memory

10000 kByte

With numeric keyboard

Yes

With alpha numeric keyboard

Yes

Number of function buttons, programmable

10

Touch technology

Resistive touch

With touch screen

Yes

With message indication

Yes

With message system (incl. buffer and confirmation)

Yes

Process value representation (output) possible

Yes

Process default value (input) possible

Yes

With recipes

Yes

Number of password levels

50

With printer output

No

Number of online languages

10

Additional software components, loadable

No

Degree of protection (IP), front side

IP65

Operating temperature

0–50 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

330 mm

Height of the front

245 mm

Built-in depth

60 mm

Country of origin

Germany

HS Code

8537.10
