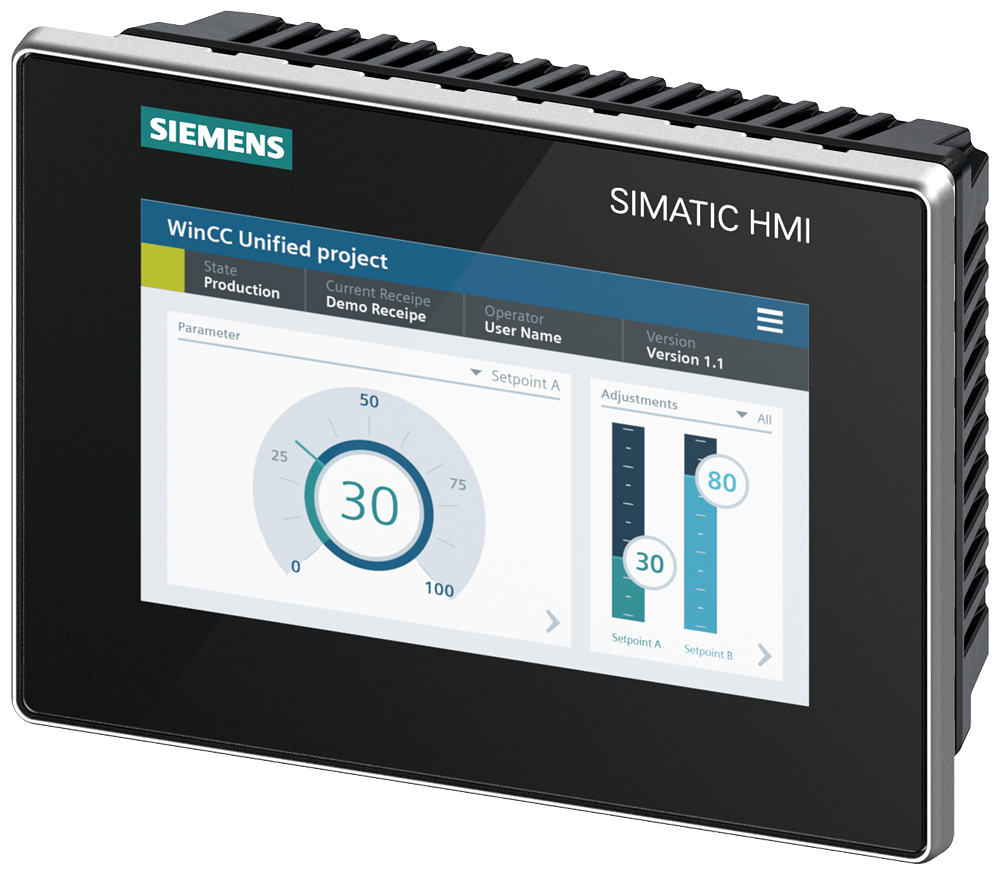

Siemens SIMATIC HMI MTP700, Unified Comfort Panel, touch operation, 7" widescreen TFT display

Siemens 6AV2128-3GB06-0AX1 SIMATIC HMI MTP700, Unified Comfort Panel, touch operation, 7" widescreen TFT display,.

Manufacturer part number (MPN)

6AV2128-3GB06-0AX1

EAN / GTIN

4047623411901

Sales unit

pcs

Product type designation

MTP700 Unified Comfort

Design of display

TFT

Screen diagonal

7 in

Display width

152.4 mm

Display height

91.4 mm

Number of colors

16 777 216

Horizontal image resolution

800 pixel

Vertical image resolution

480 pixel

MTBF backlighting (at 25 °C)

50 000 h

Backlight dimmable

Yes; 5-100 %

Design as touch screen

Yes

Design as multi-touch screen

Yes

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.45 A

Current consumption, max.

1 A

Number of industrial Ethernet interfaces

2; 2 ports (switch) + independent port

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of USB interfaces

4; USB 3.1 Gen. 1 (type A)

Number of SD card slots

2

PROFINET

Yes

Media redundancy MRP

Yes

IP (at the front)

IP65

IP (rear)

IP20

Enclosure Type 4x at the front

Yes

Enclosure Type 12 at the front

Yes

CE mark

Yes

UKCA mark

Yes

CULus

Yes

ATEX Zone 2

Yes

ATEX Zone 22

Yes

American Bureau of Shipping (ABS)

Yes

It Norske Veritas (DNV)

Yes

Lloyds Register of Shipping (LRS)

Yes

Suited for indoor use

Yes

Ambient temperature for vertical installation, min.

0 °C

Ambient temperature for vertical installation, max.

50 °C

Ambient temperature during storage/transportation, min.

-20 °C

Ambient temperature during storage/transportation, max.

60 °C

Relative humidity operation, max.

90 %; no condensation

Configuration software

WinCC Unified Comfort Engineering (TIA Portal)

Number of online/runtime languages

32

Number of variables per device

8 000

Number of configurable images

1 200

Number of users

200

Enclosure material (front)

Aluminum

Width of the housing front

214 mm

Height of housing front

158 mm

Mounting cutout, width

198.3 mm

Mounting cutout, height

142 mm

Mounting depth

63.6 mm

Weight (without packaging)

1.4 kg

Supporting protocol for EtherCAT

No

Supply voltage DC

19.2–28.8 V

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

4

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

16777216

Number of pixels, horizontal

800

Number of pixels, vertical

480

With numeric keyboard

Yes

With alpha numeric keyboard

Yes

Touch technology

Capacitive multitouch

With message indication

Yes

With message system (incl. buffer and confirmation)

Yes

Process value representation (output) possible

Yes

Process default value (input) possible

Yes

With recipes

Yes

With printer output

Yes

Number of online languages

32

Additional software components, loadable

Yes

Degree of protection (IP), front side

IP65

Operating temperature

0–50 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

214 mm

Height of the front

158 mm

Built-in depth

63.6 mm

Country of origin

Germany

HS Code

8537.10
