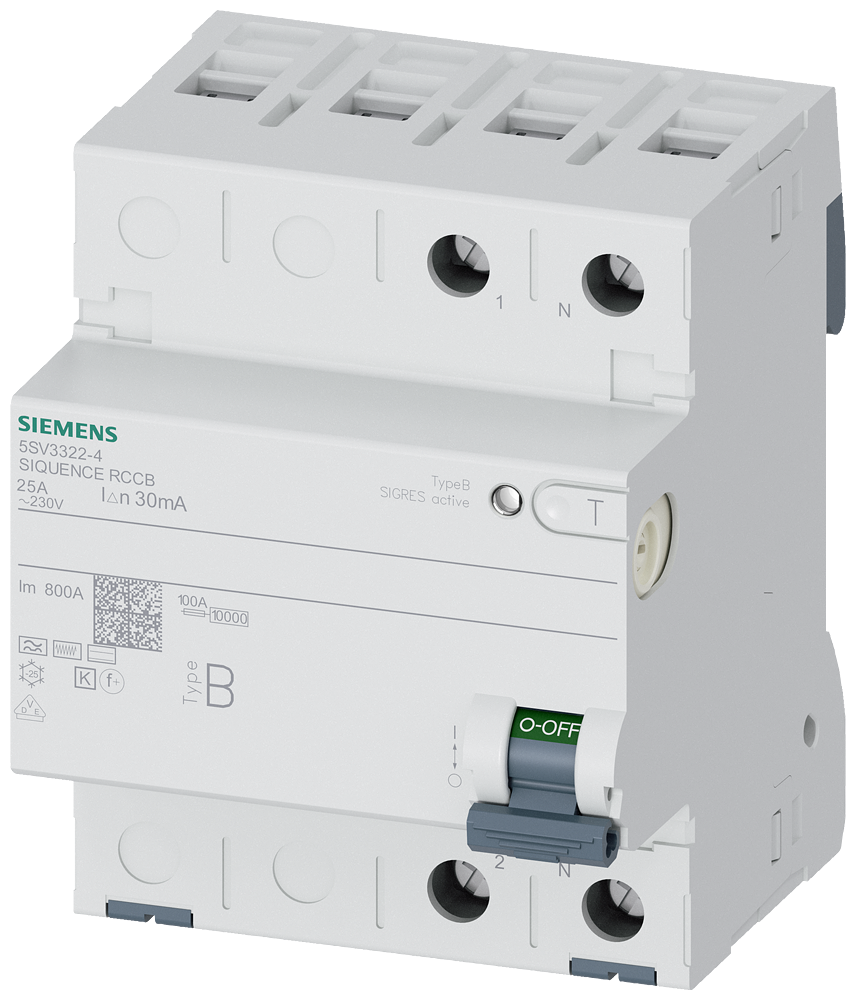

Siemens 5SV33224 SIGRES Residual Current Circuit Breaker (RCCB) — Type B, 1+N, 25 A, 30 mA, Short-Time Delayed

The Siemens 5SV33224 is a residual current circuit breaker (RCCB) from the SENTRON 5SV3 range, in the SIGRES version. It is a Type B device: it responds to sinusoidal AC, pulsating DC and smooth DC residual currents, which is what circuits fed through frequency converters, EV chargers and photovoltaic inverters require — a Type A device can be blinded by the smooth DC component such loads produce. The breaker is 1+N pole, rated 25 A with a rated residual current of 30 mA, and is short-time delayed, so it rides through the brief leakage surges that switch-mode supplies and long cable runs cause at switch-on instead of nuisance-tripping. SIGRES is Siemens' corrosion-resistant construction for aggressive and humid atmospheres — sewage and water treatment plants, agriculture, swimming pools, coastal and chemical installations — where a standard device would degrade. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

5SV33224

EAN / GTIN

4001869548876

Sales unit

pcs

Mounting method

DIN rail

Voltage type

AC

Built-in depth

70 mm

Rated current

25 A

Rated voltage

230 V

Rated insulation voltage Ui

2000 V

Number of poles

2

Rated fault current

30 A

Leakage current type

B

Short-circuit breaking capacity (Icw)

10 kA

Surge current capacity

3 kA

Pollution degree

2

Width in number of modular spacings

4

RAL-number (similar)

7035

Explosion-proof

No

Power loss

1.2 W

Frequency

50 Hz

Degree of protection (IP)

IP20

Device width

72 mm

Device height

90 mm

Device depth

70 mm

Rated impulse withstand voltage Uimp

0.8 kV

Country of origin

Germany

Product family

SENTRON 5SV3 residual current circuit breaker (RCCB)

Version

SIGRES — corrosion-resistant, for demanding/aggressive environments

Residual current type

Type B (AC, pulsating DC and smooth DC)

Rated residual current (IΔn)

30 mA

Poles

1+N

Tripping characteristic

Short-time delayed

HS Code

8536.20

• EAN 4001869548876
• SAP 1200358499
• Code 82369752
• MPN 5SV33224
