Siemens

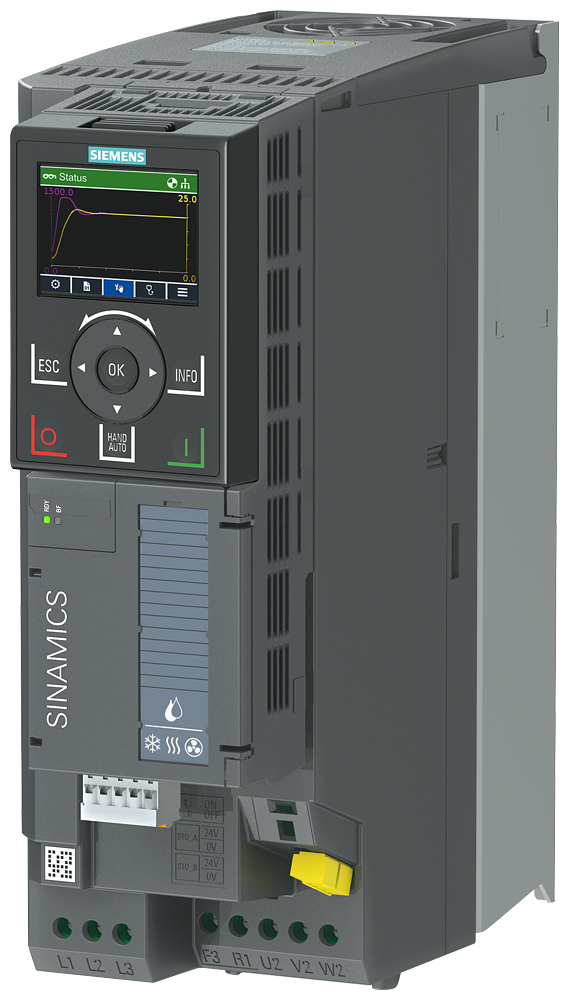

Siemens SINAMICS G120X IP20 200
Part number6SL3220-3YC20-0UB0EAN / GTIN4042948703946HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3220-3YC20-0UB0 SINAMICS G120X IP20 200.240V 4kW FSB without filter, Modbus RTU, BACnet MS/TP, USS.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3220-3YC20-0UB0
- EAN / GTIN
- 4042948703946
- Sales unit
- pcs
- IP rating
- IP20
- Width
- 100 mm
- Height
- 275 mm
- Depth
- 209 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces serial TTY
- 5
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- No
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 3 kW
- Max. output at quadratic load at rated output voltage
- 4 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Nominal output current I2N
- 18.1 A
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948703946
- SAP 1200753253
- Code 83919479
Product Documentation
Document preview: Siemens 6SL3220-3YC20-0UB0 — OEM Datasheet
More from Siemens
Siemens

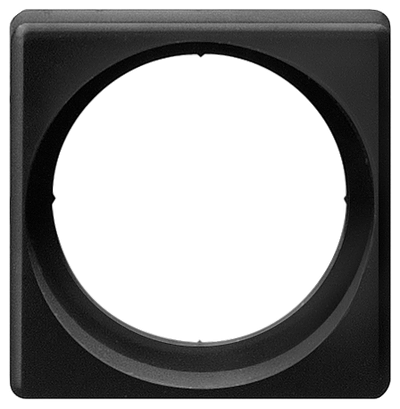

Siemens 3SB2902-0AA
Siemens
Siemens SCALANCE X, SFP992-1
6GK5992-1AL00-8AA0
Siemens
Siemens SIRIUS 3RW soft starter 3RW3028-1BB14
Siemens

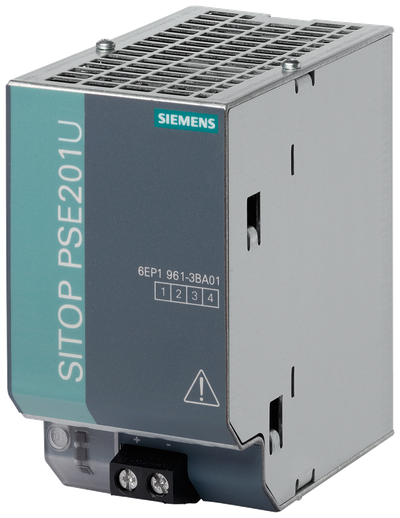

Siemens SITOP DC power supply 6EP1961-3BA01
Siemens
Siemens SIRIUS 3RW soft starter 3RW3037-1BB14
Siemens

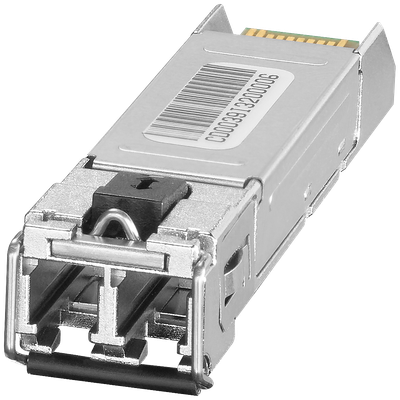

Siemens SCALANCE X, SFP992-1ELH
6GK5992-1AQ00-8AA0
Siemens

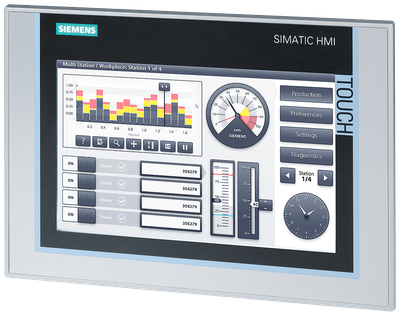

Siemens SIMATIC TP900 Comfortpanel, 9", Touch
