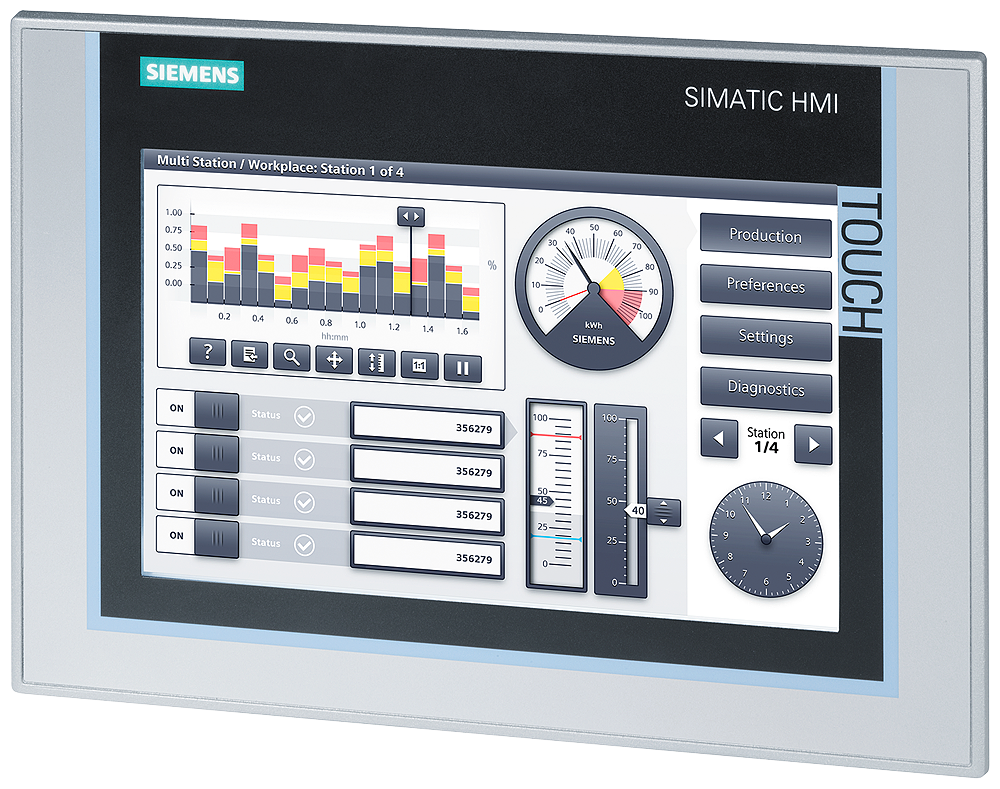

Siemens SIMATIC TP900 Comfortpanel, 9", Touch

Siemens 6AV2124-0JC01-0AX0 SIMATIC TP900 Comfortpanel, 9", Touch.

Manufacturer part number (MPN)

6AV2124-0JC01-0AX0

EAN / GTIN

4025515079019

Sales unit

pcs

Product type designation

TP900 Comfort

Design of display

TFT

Screen diagonal

9 in

Display width

195 mm

Display height

117 mm

Number of colors

16 777 216

Resolution (pixels) — Horizontal image resolution

800 pixel

Resolution (pixels) — Vertical image resolution

480 pixel

Backlighting — MTBF backlighting (at 25 °C)

80 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Touch operation — Design as touch screen

Yes; Analog-resistive

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.75 A

Active power input, typ.

18 W

Processor type

X86

Memory available for user data

12 Mbyte

Number of industrial Ethernet interfaces

1; 2 ports (switch)

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of USB interfaces

2; USB 2.0

Number of SD card slots

2

PROFINET

Yes

PROFIBUS

Yes

EtherNet/IP

Yes

MPI

Yes

IP (at the front)

IP65

IP (rear)

IP20

NEMA (front) — Enclosure Type 4 at the front

Yes

NEMA (front) — Enclosure Type 4x at the front

Yes

CE mark

Yes

CULus

Yes

RCM (formerly C-TICK)

Yes

KC approval

Yes

Use in hazardous areas — ATEX Zone 2

Yes

Use in hazardous areas — ATEX Zone 22

Yes

Use in hazardous areas — IECEx Zone 2

Yes

Marine approval — It Norske Veritas (DNV)

Yes

Marine approval — American Bureau of Shipping (ABS)

Yes

Marine approval — Bureau Veritas (BV)

Yes

Marine approval — Lloyds Register of Shipping (LRS)

Yes

Operation (vertical installation) — For vertical installation, max.

50 °C; (55 °C, see entry ID: 64847814)

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %; no condensation

Pre-installed operating system — Windows CE

Yes

Online languages — Number of online/runtime languages

32

Enclosure material (front) — Aluminum

Yes

Width of the housing front

274 mm

Height of housing front

190 mm

Mounting cutout, width

251 mm

Mounting cutout, height

166 mm

Mounting depth

62.7 mm

Weight (without packaging)

1.9 kg

Power consumption

18 W

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

Type of display

TFT

Number of colours of the display

16777216

Number of pixels, horizontal

800

Number of pixels, vertical

480

Usable project memory/user memory

12000 kByte

Touch technology

Resistive touch

With touch screen

Yes

Number of password levels

50

Number of online languages

32

Degree of protection (IP), front side

IP65

Width of the front

274 mm

Height of the front

190 mm

Built-in depth

63 mm

Country of origin

Germany

HS Code

8537.10
