SG Armaturen

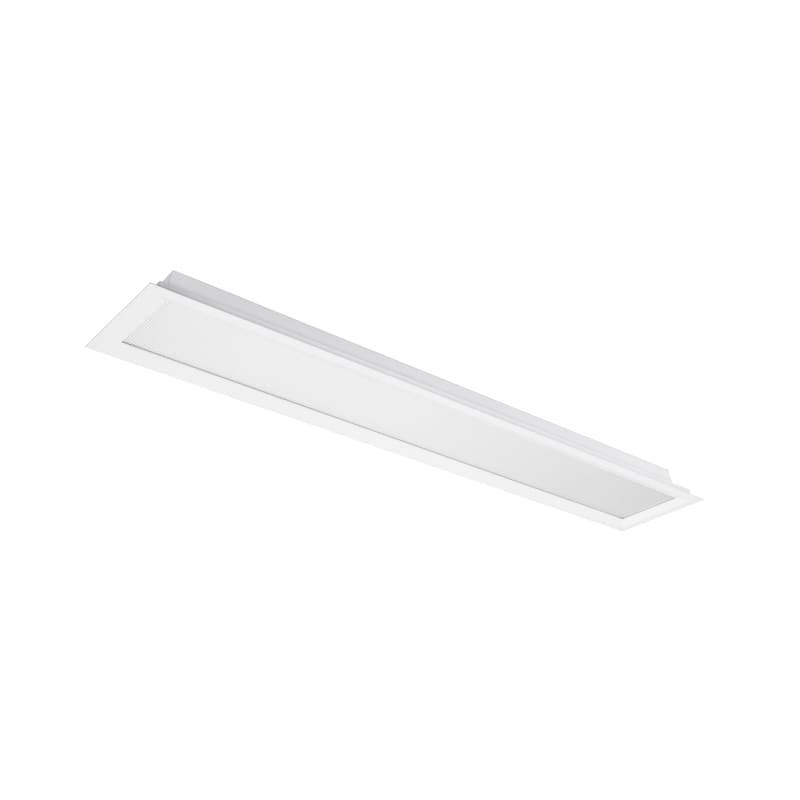

Sense LINE 120X600 9W/840 Linect
Part number212692EAN / GTIN7021982126925HS code9405.11
Lighting & Electrical Accessories
LED Panels
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212692 SENSE LINE 120X600 4000K LINECT, 9W, 1230lm, Ra>80, SDCM:3, Class II SELV, IP20, L80/B20>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212692
- EAN / GTIN
- 7021982126925
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Power
- 9 W
- Efficacy
- 137 lm/W
- Lumen
- 1230lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Recessed, Indoor
- System wattage
- 9W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 18, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 1230lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 84°
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0.1
- Stroboscopic flicker (SVM)
- 0.07
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 120x600
- Connection
- 3 pol Linect / screwless terminal block
- Length (mm) L
- 595
- Width (mm) W
- 118
- Height (mm) H
- 35
- Ceiling void depth (mm)
- 35
- Weight (kg) gross/net
- 1.1 / 0.9
- Packaging dimensions (mm)
- 750 x 135 x 54
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982126925
- SAP 1200709554
- Code 83799922
Product Documentation
Document preview: Sense LINE 120X600 9W/840 Linect (212692) — Specification sheet
