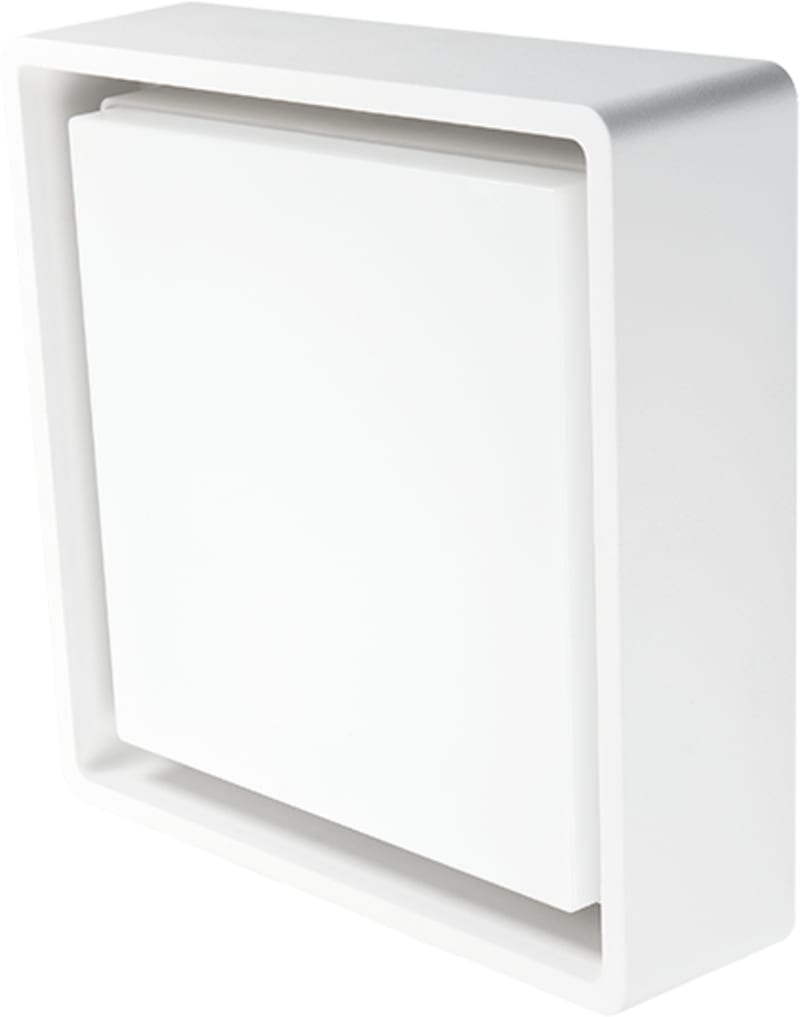

Frame SQ MAXI White 21W/830 Sensor WI
Part number605344EAN / GTIN7021986053449HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605344 FRAME SQUARE MAXI WHITE LED.
Technical Specifications
- Manufacturer part number (MPN)
- 605344
- EAN / GTIN
- 7021986053449
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 21 W
- Efficacy
- 94 lm/W
- Lumen
- 1980lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 21W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 1980lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Sensor Wireless
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 310
- Width (mm) W
- 310
- Height (mm) H
- 77
- Weight (kg) gross/net
- 3.65 / 3.45
- Packaging dimensions (mm)
- 318 x 318 x 92
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986053449
- SAP 1200117333
- Code 81972269
Product Documentation
Document preview: Frame SQ MAXI White 21W/830 Sensor WI (605344) — Specification sheet
More from SG Armaturen
SG Armaturen
Herning MIDI Pole Head 3/4K
623983
SG Armaturen
RAX SOFT 200 Satin 2200 22W/930
212520
SG Armaturen

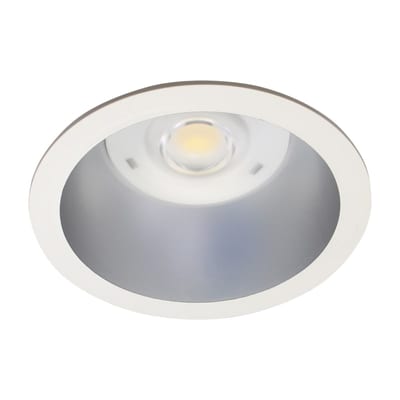

RAX SOFT 150 Satin 2200 22W/830 DALI
212507
SG Armaturen

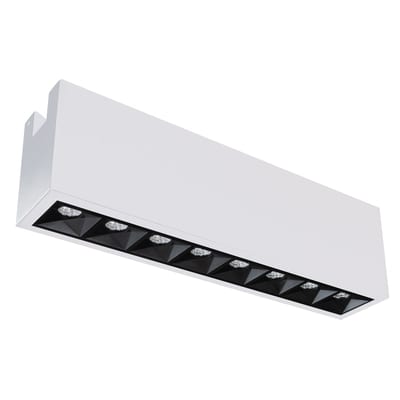

ZIP 1T Inspire 300 White 15W/930
300773
SG Armaturen

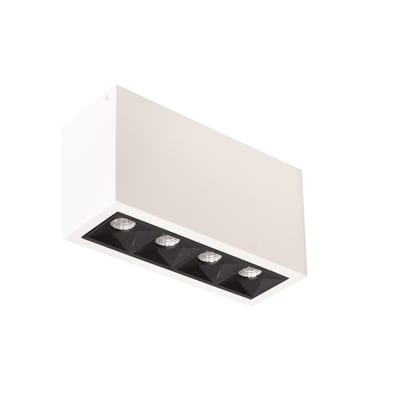

Inspire S 150 White 8W/927
320820
SG Armaturen

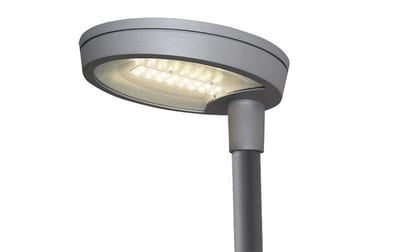

Circled M LENS 50W/740 5000LM (8246094128)
SG Armaturen

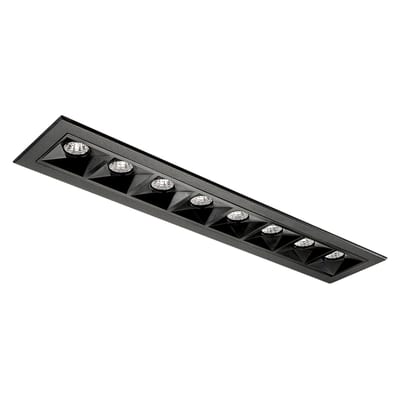

Inspire R 300 Black 15W/930
212429
SG Armaturen

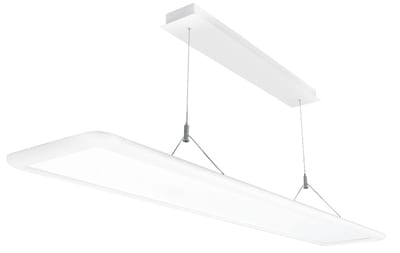

Sense AIR 3600LM 39W/840
