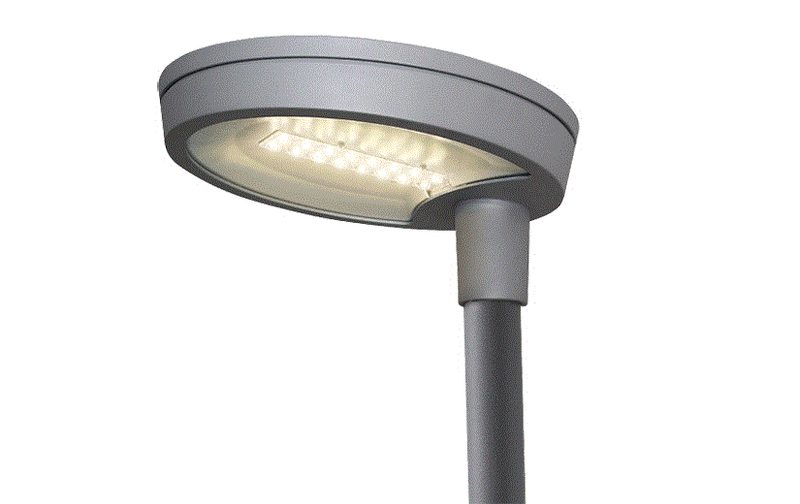

Circled M LENS 50W/740 5000LM (8246094128)

SG Armaturen 8246094128 CircLED M Lens 50W 5000lm 4K.

Manufacturer part number (MPN)

8246094128

EAN / GTIN

5703821176903

Sales unit

pcs

Package quantity

8 pcs

Power

50 W

Luminous flux

5000 lm

Efficacy

139 lm/W

Lumen

5820lm

IP Class

IP66

Colour temperature

4000K

Colour rendering (Ra)

Ra>70

Lifetime

100,000 L80/B10>

Mounting

Post - top (Ø60mm), Outdoor

System wattage

42W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 7, B16: 12, C10: 11, C16: 19

Type of light source

LED

MacAdams factor

SDCM: 3

Light distribution

Multi Lens

Optic

Lens III

Visible flicker (PstLM)

0.1

Stroboscopic flicker (SVM)

0

ULOR (<1%)

Yes / Yes, up to 17° tilt angle

Type

On/Off

Luminaire class

Class II

IK Class

IK09

Surge protection

Integrated (min. 4 kV)

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Die-cast aluminium

Colour

Grey (structure 2150 sablé)

Optics

Tempered glass

Module

Top

Cable

Cable 2x1mm² 10m

Wind projected area

0,0415m² - Max 6,2 kg

Length (mm) L

460

Width (mm) W

390

Height (mm) H

185

Weight (kg) gross/net

9.2 / 9

Packaging dimensions (mm)

460 x 390 x 185

Mounting method

Post top

Protection class according to IEC 61140

I

Width

390 mm

Conductor cross section

1 mm²

Housing colour

Grey

Dimmable

No

Surface protection

Powder coating

Voltage type

AC

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

70-79

Cable length

6 m

Diameter

390 mm

With light sensor

No

Number of poles

2

Length

460 mm

Height/depth

185 mm

Housing material

Aluminium

Lamp type

LED not exchangeable

Material cover

Glass transparent

Impact strength

IK09

Degree of protection (IP)

IP66

Built-in battery

No

Suitable for number of light sources

1

With control gear

Yes

Max. system power

50 W

Rated luminous flux according to IEC 62722-2-1

50000 lm

Colour of light

White

Remote control

None

IFTTT support available

No

Type of wiring

Ending

Rated life time L80/B10 at 25 °C

50000 h

Colour consistency (McAdam ellipse)

SDCM3

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming Touch and Dim

No

Dimming with push-button

No

No dim function

No

Luminaire efficacy

1000 lm/W

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Dimming DALI-2

No

Dimming D4i

No

Solar powered

No

With integrated PV panel

No

Suitable for off-grid power system

No

Power factor

100

Country of origin

Denmark

HS Code

9405.11

• EAN 5703821176903
• SAP 1200117362
• Code 81973954
